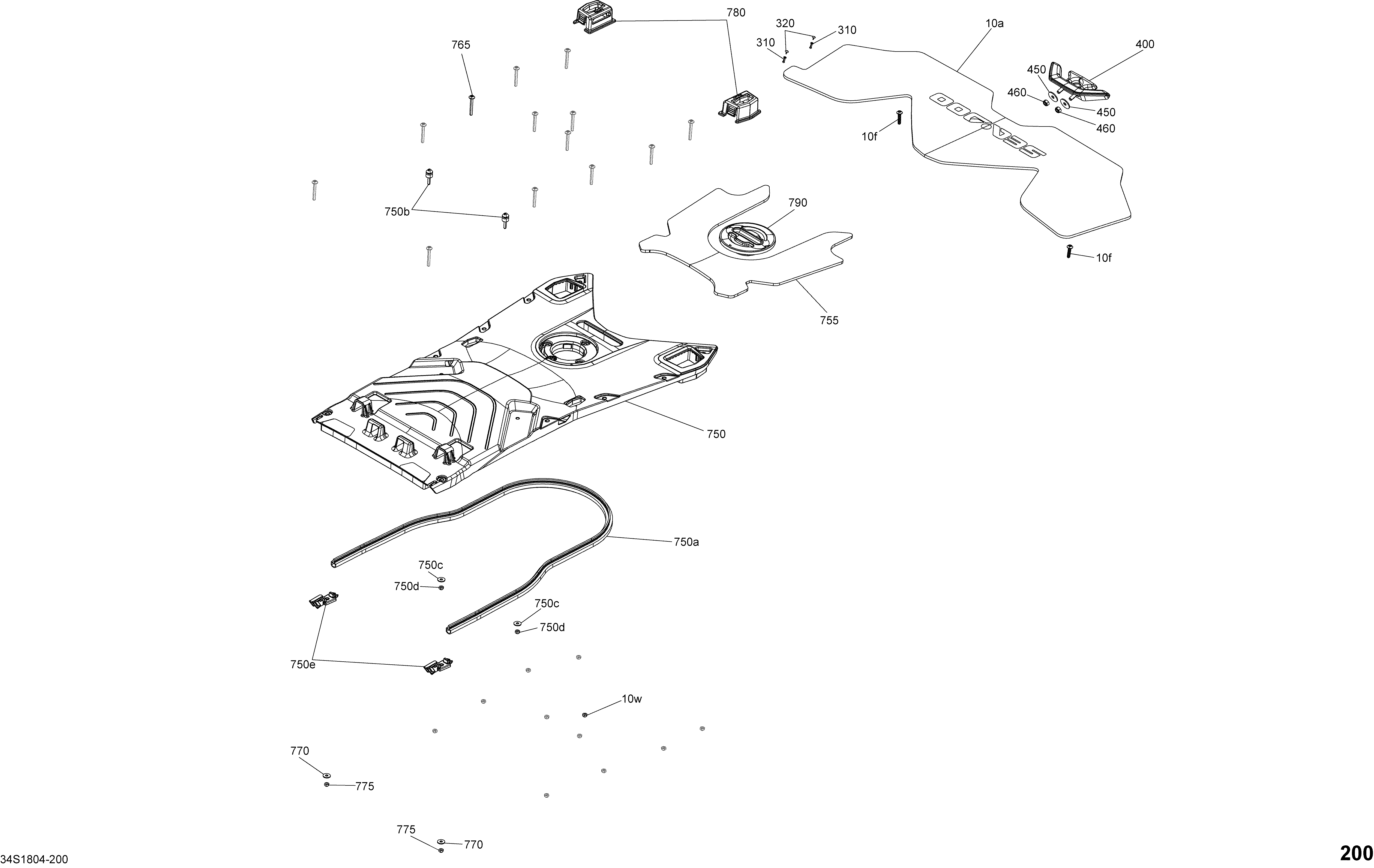

09- Body Rear Part - RXT Package X, XRS для BRP 2- RXT 300 - 2018
-
№АртикулНазвание
-
10a291004615 Rear Plat-Form CarpetRear Plat-Form Carpet
-
10f250000710 Torx Screw M6 X 3Torx Screw M6 X 3
-
10w291004813 Housing Nut M6Housing Nut M6
-
310293150016 Rivet 1/8''Rivet 1/8''
-
320293000014 Black Snap CapBlack Snap Cap
-
400291004597 CleatCleat
-
450234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
460232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
740291004941 Hose ProtectorHose Protector
-
750291004462 Access Cover Assy. Includes 750 to 750eAccess Cover Assy. Includes 750 to 750e
-
750a293200124 Seal, 1 PAC = 3 MSeal, 1 PAC = 3 M
-
750b291004611 StudStud
-
750c234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
750d232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
750e291004717 SealSeal
-
755291004633 Cover B-281Cover B-281
-
765250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
770234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
775232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
780291004549 Cargo BaseCargo Base
-
790291004481 Acces Cap Ass'yAcces Cap Ass'y
