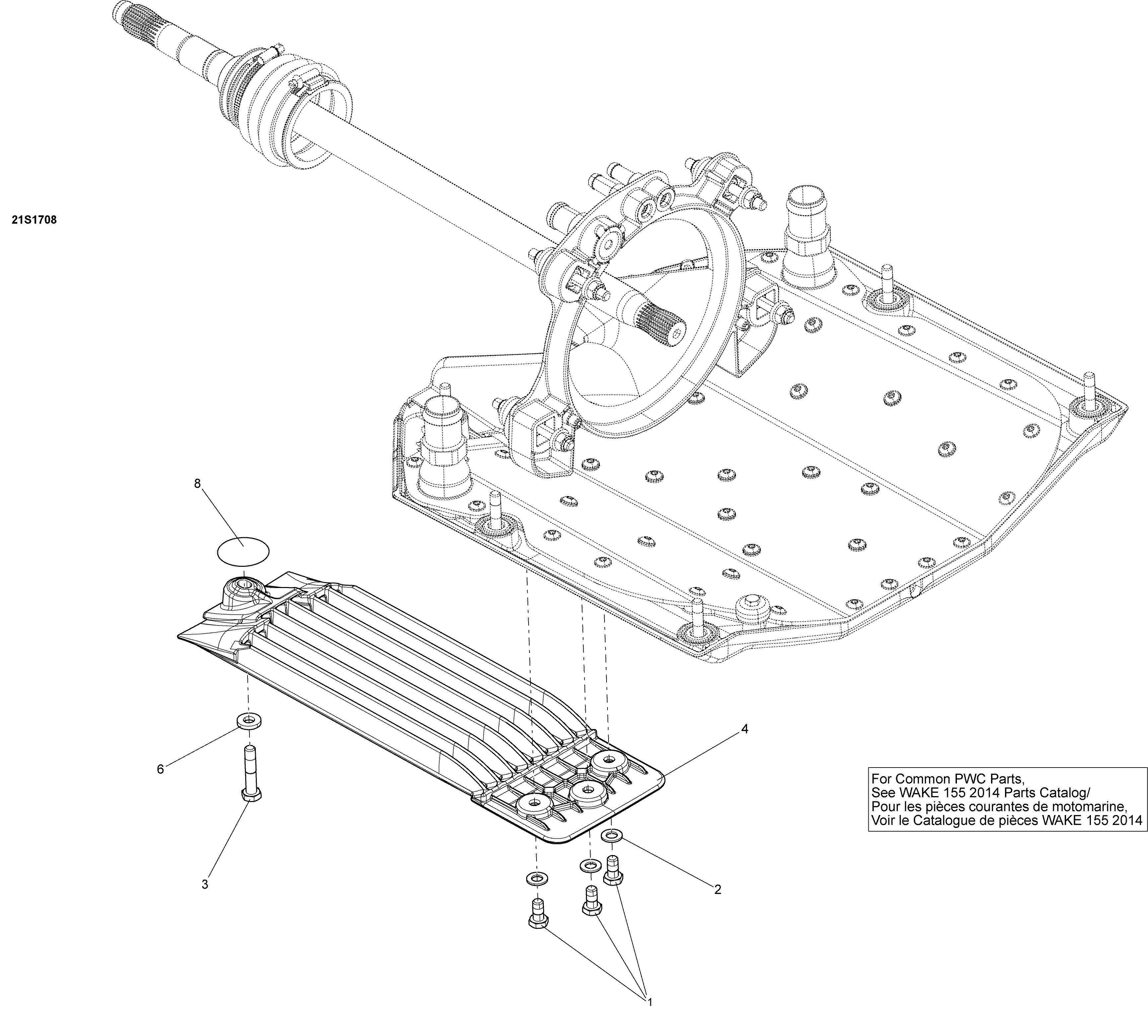

05- Propulsion для BRP SAR 155 - 2018
-
№АртикулНазвание
-
1207381660 Hex. Screw M8 X 16, Scotch GripHex. Screw M8 X 16, Scotch Grip
-
2234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
3250000530 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
4271001947 Pump GratePump Grate
-
6293050001 Flat WasherFlat Washer
-
8293830047 Protector DiskProtector Disk
