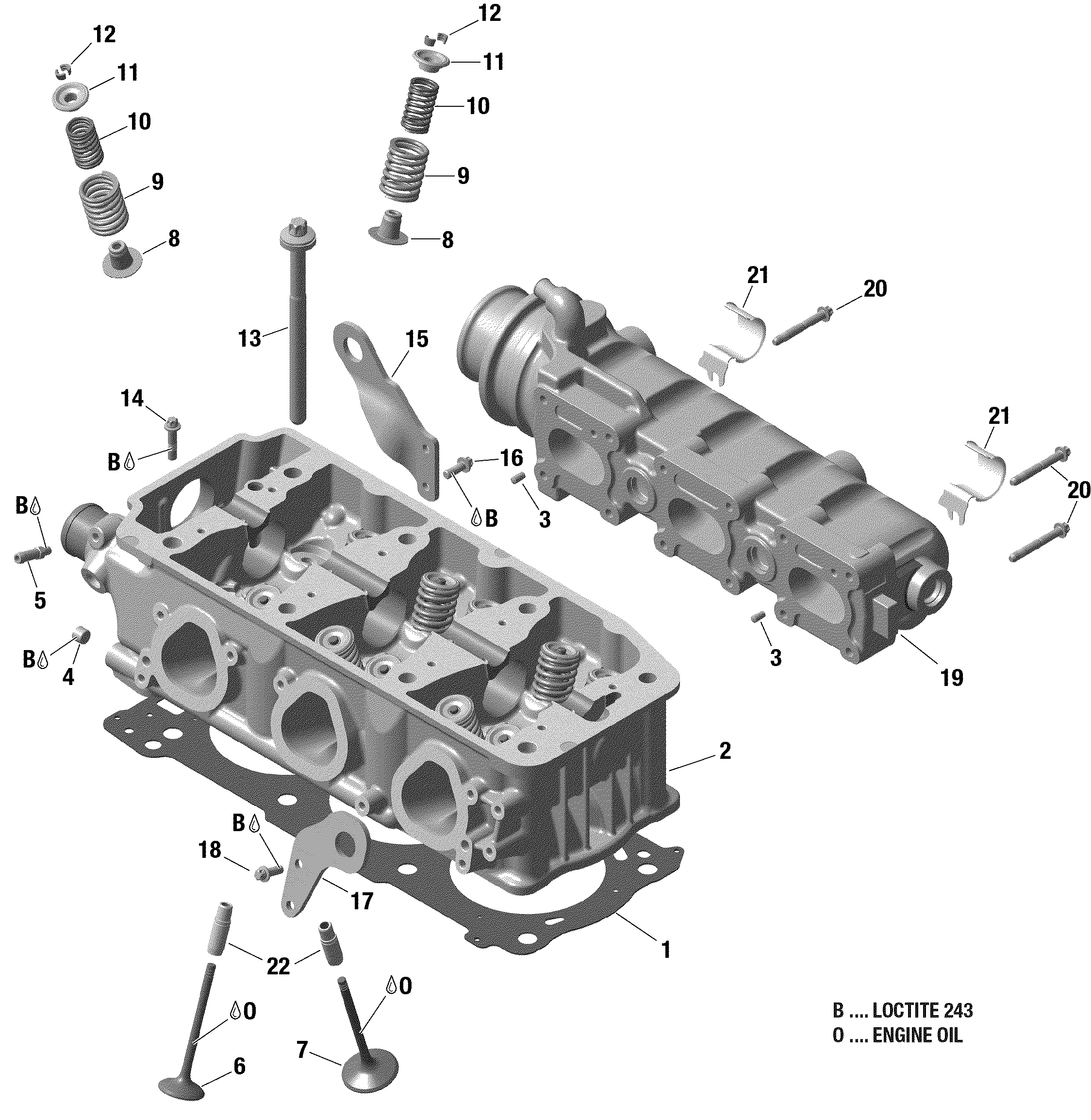

01- Cylinder Head And Exhaust Manifold для BRP 1- WAKE 155 - 2018
-
№АртикулНазвание
-
1420950772 Cylinder Head GasketCylinder Head Gasket
-
2>5420413258 Cylinder Head Ass'yCylinder Head Ass'y
-
3420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
4420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
5420924724 Hose NippleHose Nipple
-
6420254682 Exhaust Valve, 31 mmExhaust Valve, 31 mm
-
7420254298 Intake Valve, 38mmIntake Valve, 38mm
-
8420630202 Valve Steam SealValve Steam Seal
-
9420238180 Valve SpringValve Spring
-
10420838280 Valve Spring InsideValve Spring Inside
-
11420254283 Valve Spring RetainerValve Spring Retainer
-
12420253645 Valve CotterValve Cotter
-
13420641115 Torx Flanged Screw M11 X 147Torx Flanged Screw M11 X 147
-
14420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
15420851618 Transport Bracket PTOTransport Bracket PTO
-
16420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
17420951382 Transport BracketTransport Bracket
-
18420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
19420673294 Engine Exhaust ManifoldEngine Exhaust Manifold
-
20420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
22420254882 Valve GuideValve Guide
