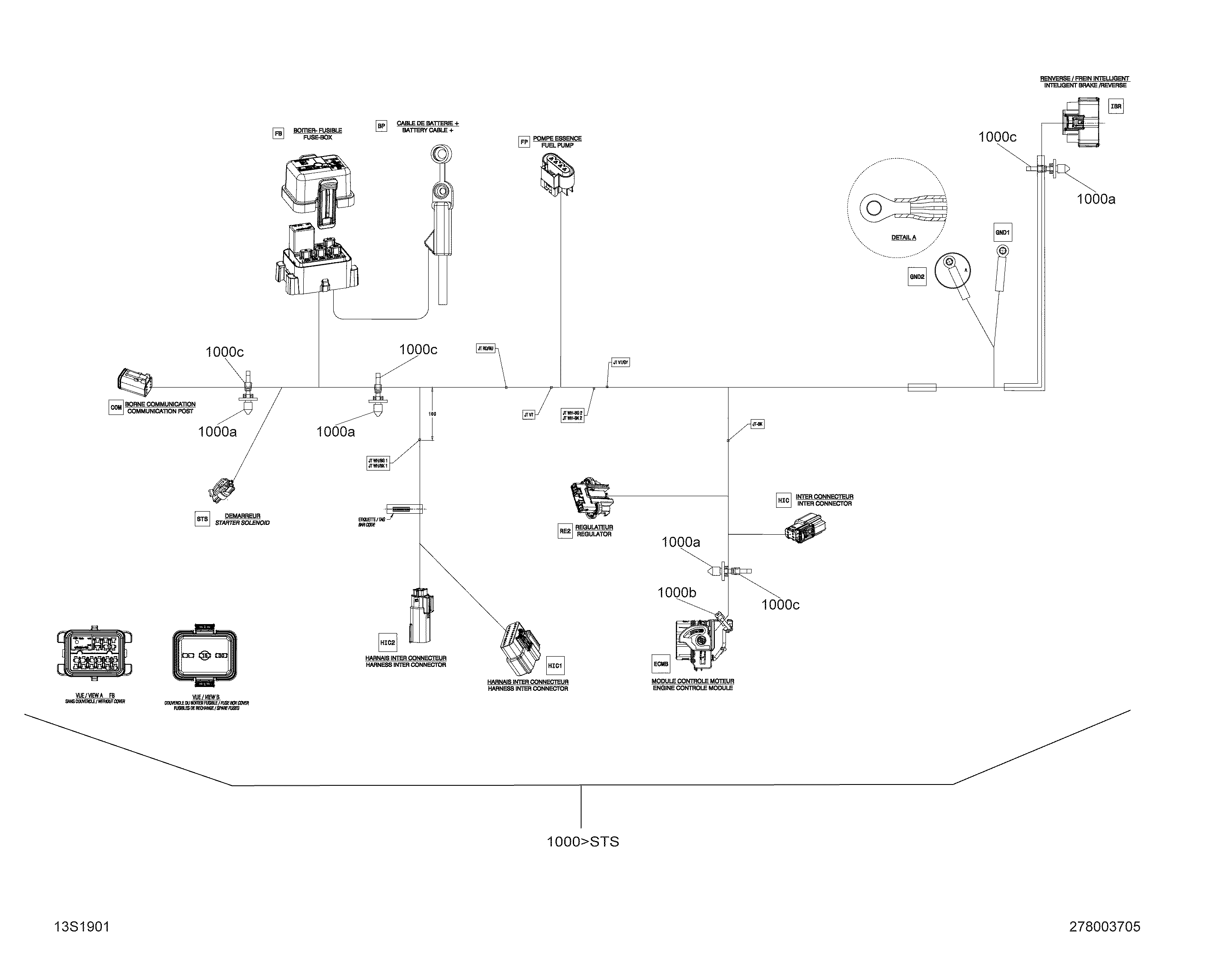

10- Main Harness для BRP 001 - GTI 90 - 2019
-
№АртикулНазвание
-
1000>STS278003705 Wiring Harness Main. Includes 1000 TO STSWiring Harness Main. Includes 1000 TO STS
-
1000a293730040 Mount DartMount Dart
-
1000b710002712 Tie-RapTie-Rap
-
1000c710002714 Tie-RapTie-Rap
-
BP515177177 Female TerminalFemale Terminal
-
COM710002705 LockLock
-
COM710002706 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
COM710005438 Female TerminalFemale Terminal
-
COM710005439 Female TerminalFemale Terminal
-
ECMB710001588 Female Terminal Housing, 48 CircuitsFemale Terminal Housing, 48 Circuits
-
ECMB710001589 Female TerminalFemale Terminal
-
ECMB710001590 Female TerminalFemale Terminal
-
ECMB710001591 Cover, 48 positionsCover, 48 positions
-
ECMB710001592 PlugPlug
-
ECMB710001593 PlugPlug
-
ECMB710001727 Female TerminalFemale Terminal
-
FB278000218 Wire SealWire Seal
-
FB278000992 Open BarrelOpen Barrel
-
FB278002578 Female TerminalFemale Terminal
-
FB278002822 Relay 30 Amp.Relay 30 Amp.
-
FB278002824 Case Ass'y with seal, 24 positionsCase Ass'y with seal, 24 positions
-
FB278002825 Fuse CoverFuse Cover
-
FB278002880 Seal PlugSeal Plug
-
FB515177192 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FB710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
FB710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
FB710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
FB710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
FB710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
FB710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
FB710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
FB710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
FB710000877 Female TerminalFemale Terminal
-
FB710000890 Female TerminalFemale Terminal
-
FB710000918 Female TerminalFemale Terminal
-
FP278002185 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
FP278002186 Wire SealWire Seal
-
FP278002187 Female TerminalFemale Terminal
-
FP710001222 LockLock
-
GND1278001065 Wire SealWire Seal
-
GND2278001392 Open BarrelOpen Barrel
-
HIC278002453 Female TerminalFemale Terminal
-
HIC278003716 Battery CableBattery Cable
-
HIC1278002453 Female TerminalFemale Terminal
-
HIC1278002642 Female TerminalFemale Terminal
-
HIC1278002858 Female Housing, 20 CircuitsFemale Housing, 20 Circuits
-
HIC1278002860 Sealing CapSealing Cap
-
HIC2278002454 Male TerminalMale Terminal
-
HIC2278002906 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
IBR278002453 Female TerminalFemale Terminal
-
IBR278002860 Sealing CapSealing Cap
-
IBR278002880 Seal PlugSeal Plug
-
IBR278003045 Female TerminalFemale Terminal
-
IBR278003046 SealSeal
-
IBR278003484 Female Housing ,16 CircuitsFemale Housing ,16 Circuits
-
RE2278003535 Female Housing, 4 circuitsFemale Housing, 4 circuits
-
RE2710000879 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
RE2710000881 SealSeal
-
STS710000048 Wire SealWire Seal
-
STS710001163 Wire SealWire Seal
-
STS710001164 Female TerminalFemale Terminal
