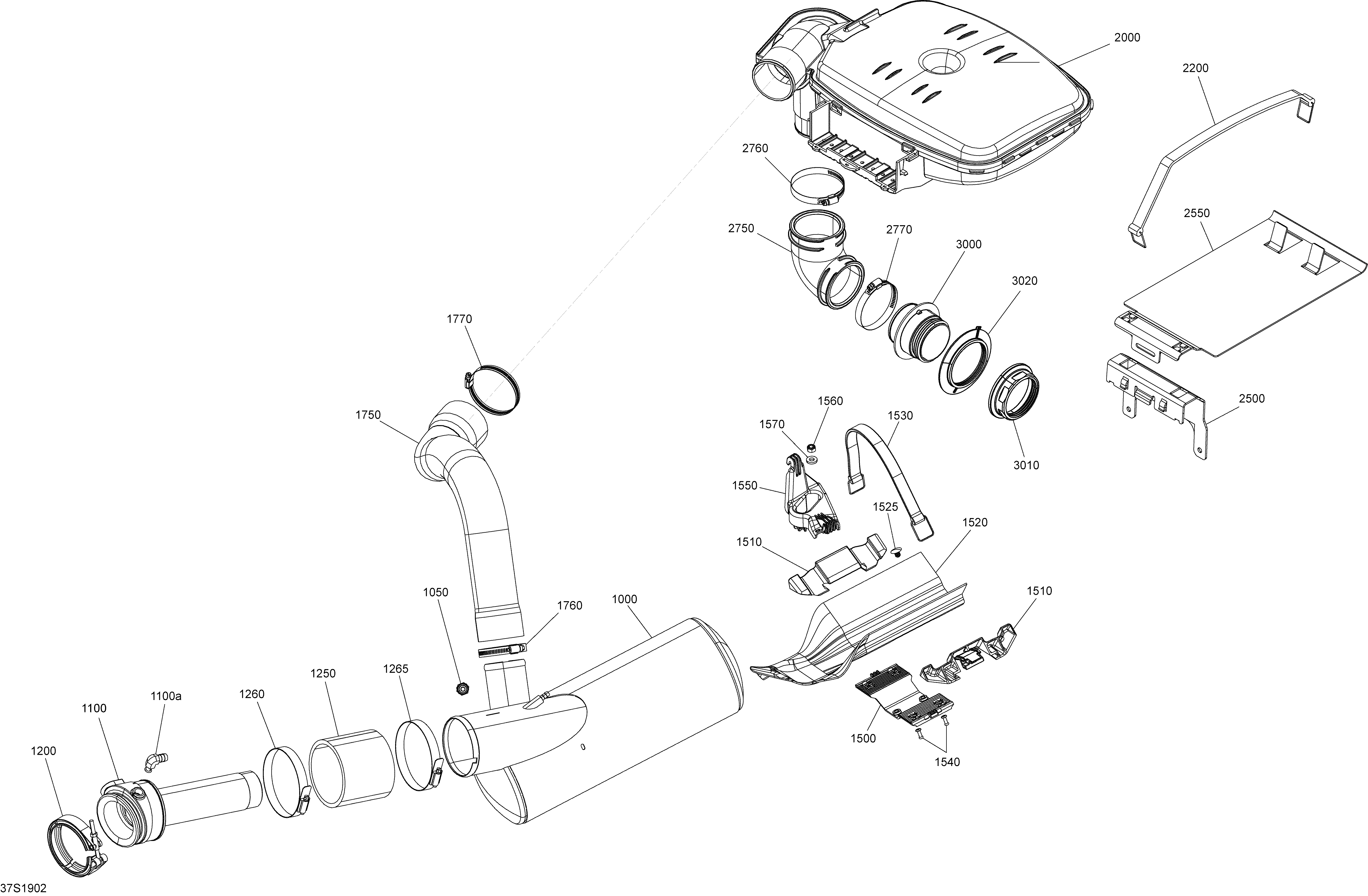

01- Exhaust System для BRP 002 - GTI 130 - 2019
-
№АртикулНазвание
-
1000274001648 MufflerMuffler
-
1050278002895 Temperature SensorTemperature Sensor
-
1100274001354 Head Pipe Ass'y. Includes 1100a to 1100bHead Pipe Ass'y. Includes 1100a to 1100b
-
1100b293700023 Elbow Fitting 90°Elbow Fitting 90°
-
1200274001417 Exhaust ClampExhaust Clamp
-
1250274001610 HoseHose
-
1260293650281 Clamp GearClamp Gear
-
1265293650281 Clamp GearClamp Gear
-
1500274001479 Exhaust Muffler SupportExhaust Muffler Support
-
1510274001358 StopperStopper
-
1520293830181 Rubber PadRubber Pad
-
1525414939500 DartDart
-
1530293850093 Fuel Tank StrapFuel Tank Strap
-
1540293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
1550274001609 SupportSupport
-
1560232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1570293050001 Flat WasherFlat Washer
-
1750274001612 Exhaust HoseExhaust Hose
-
1760293650283 Clamp GearClamp Gear
-
1770293650282 Clamp GearClamp Gear
-
2000274001514 ResonatorResonator
-
2200293850120 StrapStrap
-
2500292001831 BracketBracket
-
2550293830173 Pad-RubberPad-Rubber
-
2750274001628 Rear Exhaust HoseRear Exhaust Hose
-
2760293650282 Clamp GearClamp Gear
-
2770293650282 Clamp GearClamp Gear
-
3000274001659 Exhaust FittingExhaust Fitting
-
3010274001541 Nut-77mmNut-77mm
-
3020274001587 WasherWasher
