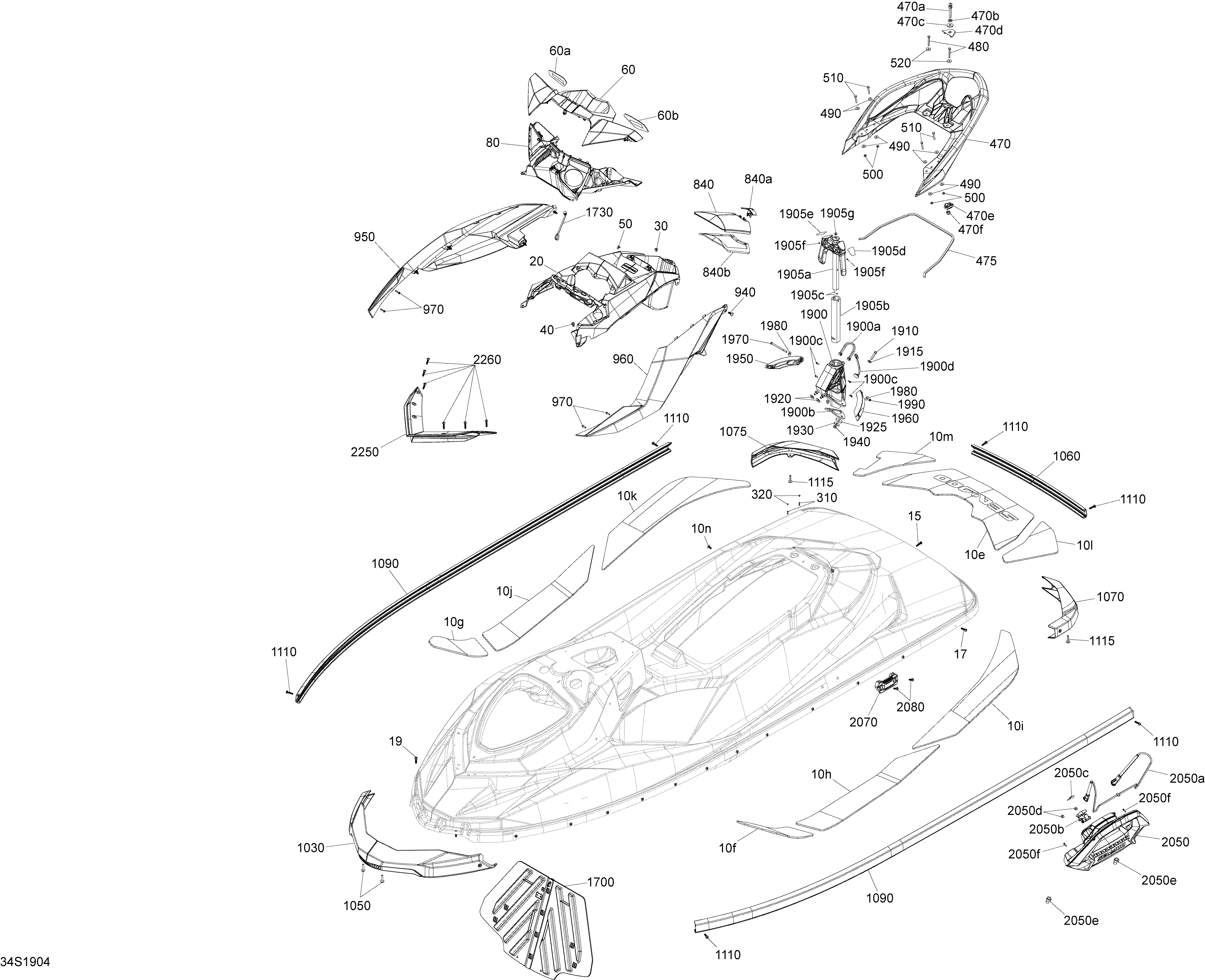

09- Body для BRP 001 - WAKE 155 - 2019
-
№АртикулНазвание
-
10e291003096 Swim Platform CarpetSwim Platform Carpet
-
10f291003058 Front Carpet LHFront Carpet LH
-
10g291003059 Front Carpet RHFront Carpet RH
-
10h291003060 Front Center Carpet LHFront Center Carpet LH
-
10i291003329 Rear Center Carpet LHRear Center Carpet LH
-
10j291003061 Front Center Carpet RHFront Center Carpet RH
-
10k291003330 Rear Center Carpet RHRear Center Carpet RH
-
10l291003062 Rear Carpet LHRear Carpet LH
-
10m291003063 Rear Carpet RHRear Carpet RH
-
10n293730011 Black DartBlack Dart
-
15250000879 Screw-Plastite Torx M6.81X30Screw-Plastite Torx M6.81X30
-
17250000879 Screw-Plastite Torx M6.81X30Screw-Plastite Torx M6.81X30
-
19250000879 Screw-Plastite Torx M6.81X30Screw-Plastite Torx M6.81X30
-
20291004276 ConsoleConsole
-
30293830005 Rubber BumperRubber Bumper
-
40293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
50293150186 Pop Rivet 3/16Pop Rivet 3/16
-
60>60b291004747 Bezzel Ass'y. Includes 60 TO 60bBezzel Ass'y. Includes 60 TO 60b
-
60a291003090 Mirror RHMirror RH
-
60b291003091 Mirror LHMirror LH
-
80291004271 Mirror SupportMirror Support
-
310293150016 Rivet 1/8''Rivet 1/8''
-
320293000014 Black Snap CapBlack Snap Cap
-
470>470f291004625 Black, Rear Handle Ass'y. Includes 470 TO 470fBlack, Rear Handle Ass'y. Includes 470 TO 470f
-
470a291003877 Stud SeatStud Seat
-
470b232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
470c234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
470d269002125 Seat Stud SpacerSeat Stud Spacer
-
470e269002126 Seat Stud SupportSeat Stud Support
-
470f232501200 Elastic Stop Nut M10, BrassElastic Stop Nut M10, Brass
-
475293250218 GasketGasket
-
480207065060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
490234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
500232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
510207164060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
520250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
840>840b269502140 Glove Door Ass'y. Includes 840 TO 840bGlove Door Ass'y. Includes 840 TO 840b
-
840a264000091 Latch, BlackLatch, Black
-
840b293250236 GasketGasket
-
940293730006 Black DartBlack Dart
-
950269502335 Black, RH Cosmetic PanelBlack, RH Cosmetic Panel
-
960269502336 Black, LH Cosmetic PanelBlack, LH Cosmetic Panel
-
970211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
1030291004277 Front BumperFront Bumper
-
1050250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
1060291004451 Side Bumper. Cut to desired length if neededSide Bumper. Cut to desired length if needed
-
1070291004278 Corner BumperCorner Bumper
-
1075291004279 Corner BumperCorner Bumper
-
1090291004451 Side BumperSide Bumper
-
1110250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
1115250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
1700291004572 Divider Ass'yDivider Ass'y
-
1730269502111 Holding StrapHolding Strap
-
1900>1900d291002553 Support Sub-assembly. Includes 1900 TO 1900dSupport Sub-assembly. Includes 1900 TO 1900d
-
1900a293250183 StrapStrap
-
1900b293250151 SealSeal
-
1900c241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
1900d269501299 StrapStrap
-
1905a291004766 Molded HandleMolded Handle
-
1905b291002642 Aluminum PostAluminum Post
-
1905c293350062 Ball 1/4''Ball 1/4''
-
1905d219905276 Warning Decal Ski PostWarning Decal Ski Post
-
1905e219905277 Warning Decal Ski PostWarning Decal Ski Post
-
1905f293150167 Type ''U'' Metallic Drive ScrewType ''U'' Metallic Drive Screw
-
1905g291001519 Bumper Plug, BlackBumper Plug, Black
-
1910250000452 Torx Screw M8 X 40, StainlessTorx Screw M8 X 40, Stainless
-
1915293050001 Flat WasherFlat Washer
-
1920234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1925293830037 Rubber WasherRubber Washer
-
1930250200175 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1940232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1950291002711 LH Lateral ArmLH Lateral Arm
-
1960291002712 RH Lateral ArmRH Lateral Arm
-
1970230060060 Hex. Screw M6 X 100Hex. Screw M6 X 100
-
1980234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1990232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
2050>2050f295100735 BOARD SUPPORT ASS'Y. Includes 2050 TO 2050fBOARD SUPPORT ASS'Y. Includes 2050 TO 2050f
-
2050a291002979 Elastic Rope Ass'yElastic Rope Ass'y
-
2050b291002980 LatchLatch
-
2050c219903228 Warning WAKEWarning WAKE
-
2050d293830005 Rubber BumperRubber Bumper
-
2050e293830119 Rubber BufferRubber Buffer
-
2050f250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
2070291003104 Upper AnchorageUpper Anchorage
-
2080250000466 Torx Screw Plastite M6Torx Screw Plastite M6
-
2250291004273 Body DeflectorBody Deflector
-
2260250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
