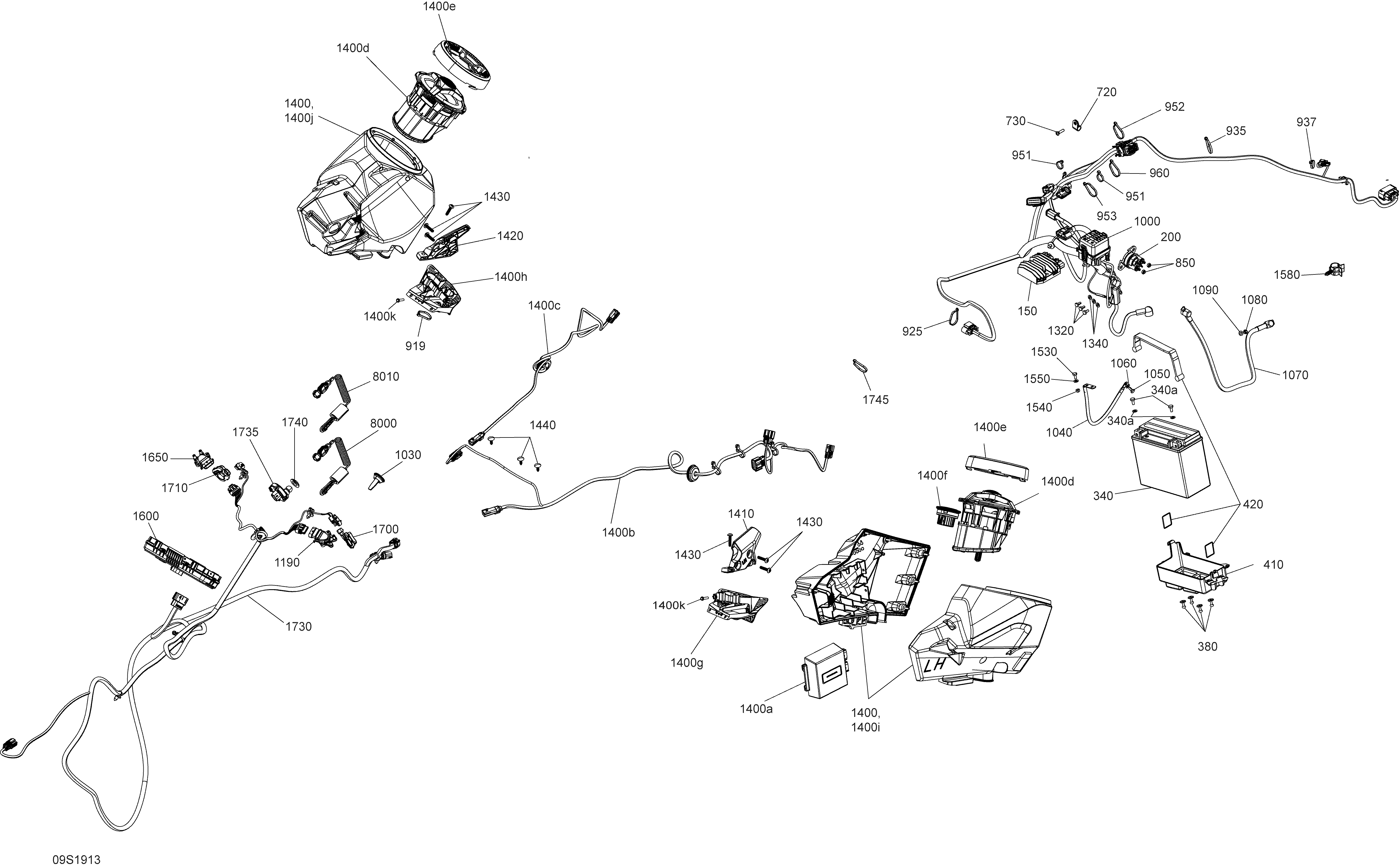

10- Electrical System для BRP 002 - WAKE PRO 230 - 2019
-
№АртикулНазвание
-
150710001103 Voltage RegulatorVoltage Regulator
-
200278003012 Starter RelayStarter Relay
-
340>340a410301203 Battery Ass'y, 18 Amperes. Includes 340 TO 340aBattery Ass'y, 18 Amperes. Includes 340 TO 340a
-
340a250000282 Battery Bolt KitBattery Bolt Kit
-
380293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
410278003473 Battery SupportBattery Support
-
420293850095 Fuel Tank StrapFuel Tank Strap
-
720293650257 ClampClamp
-
730250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
850232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
919414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
925414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
935293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
937293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
951414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
952414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
953414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
960414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1000278003720 Wiring Harness MainWiring Harness Main
-
1030269502324 USB PlugUSB Plug
-
1040278003451 Battery Cable GroundBattery Cable Ground
-
1050207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
1060234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1070278003369 Cable-StarterCable-Starter
-
1080232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1090234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1190278002284 LH Throttle SensorLH Throttle Sensor
-
1320207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
1340234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1400a278003464 Amplifier. Package AudioAmplifier. Package Audio
-
1400b278003497 Harness. Package AudioHarness. Package Audio
-
1400c278003462 Speaker Harness. Package AudioSpeaker Harness. Package Audio
-
1400d278003463 Speaker. Package AudioSpeaker. Package Audio
-
1400e278003466 Speaker Grille. Package AudioSpeaker Grille. Package Audio
-
1400f278003465 Remote Control Radio Bluethooth. Package AudioRemote Control Radio Bluethooth. Package Audio
-
1400g278003616 Grille Protective LH B-160. Package AudioGrille Protective LH B-160. Package Audio
-
1400h278003617 Grille Protective RH B-160. Package AudioGrille Protective RH B-160. Package Audio
-
1400i278003735 Enclosure Speaker LH Ass'y. Package AudioEnclosure Speaker LH Ass'y. Package Audio
-
1400j278003736 Enclosure Speaker RH Ass'y. Package AudioEnclosure Speaker RH Ass'y. Package Audio
-
1400k211000023 Hex. Screw 10-14 X 7/8”. Package AudioHex. Screw 10-14 X 7/8”. Package Audio
-
1410278003489 LH Bracket. Package AudioLH Bracket. Package Audio
-
1420278003518 RH Bracket. Package AudioRH Bracket. Package Audio
-
1430250001007 Screw Torx M6.81 X 30. Package AudioScrew Torx M6.81 X 30. Package Audio
-
1440293730011 Black DartBlack Dart
-
1440293730011 Black Dart. Package AudioBlack Dart. Package Audio
-
1530207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
1540232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1550234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1580278003564 RetainerRetainer
-
1600278003432 Info Gauge CenterInfo Gauge Center
-
1650278002283 RH Throttle SensorRH Throttle Sensor
-
1700278003726 Switch Keypad LHSwitch Keypad LH
-
1710278003474 Switch Keypad RHSwitch Keypad RH
-
1730278003712 Wiring Harness HandlebarWiring Harness Handlebar
-
1735515178225 DESS Switch, RFIDDESS Switch, RFID
-
1740278002963 Safety Nut (DESS Switch)Safety Nut (DESS Switch)
-
1745414115200 Tie-Rap 180 mm. Except InternationalTie-Rap 180 mm. Except International
-
8000278003401 Safety Lanyard Ass'y, Learning / RFIDSafety Lanyard Ass'y, Learning / RFID
-
8010278003400 Safety Lanyard Ass'y, RFIDSafety Lanyard Ass'y, RFID
