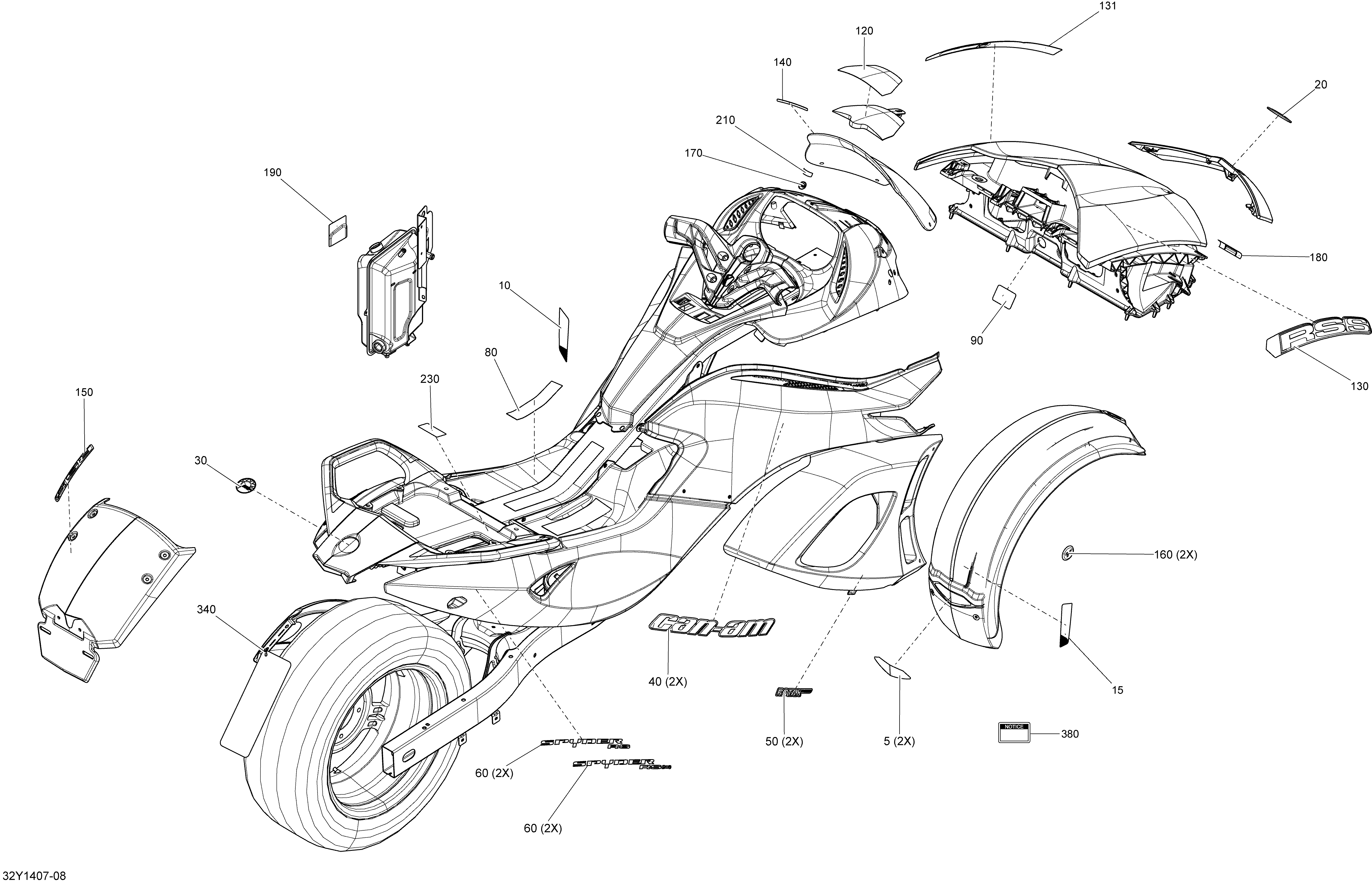

09- Decals _32Y1407 для BRP Spyder RS SE5 - 2014
-
№АртикулНазвание
-
5704901160 Reflective StripeReflective Stripe
-
20219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
30219902468 Logo BRP, 48 mmLogo BRP, 48 mm
-
40704903140 Decal, Can-Am. Model-WhiteDecal, Can-Am. Model-White
-
40704903738 Decal, Can-Am. Model-BlackDecal, Can-Am. Model-Black
-
50704903830 Decal, Rotax Power. Model-BlackDecal, Rotax Power. Model-Black
-
50704903832 Decal, Rotax Power. Model-WhiteDecal, Rotax Power. Model-White
-
60704903740 Decal, Spyder RS. Model-BlackDecal, Spyder RS. Model-Black
-
60704903839 Decal, Spyder RS. Model-WhiteDecal, Spyder RS. Model-White
-
80704904242 Decal, Tire. Model-North AmericaDecal, Tire. Model-North America
-
80704904243 Decal, Tire. Model-Europe, Australia, BrazilDecal, Tire. Model-Europe, Australia, Brazil
-
90704903109 Warning Decal, Maximum Load. Model-North AmericaWarning Decal, Maximum Load. Model-North America
-
90704903110 Warning Decal, Maximum Load. Model-Europe, Australia, BrazilWarning Decal, Maximum Load. Model-Europe, Australia, Brazil
-
120704904035 Warning Decal, SecurityWarning Decal, Security
-
160704901380 Wheel Decal, Logo SPYDERWheel Decal, Logo SPYDER
-
170219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
180704903221 Hood MaskHood Mask
-
190704904073 Caution Decal, OilCaution Decal, Oil
-
210704903118 Decal, Safety CardDecal, Safety Card
-
230704903119 Warning Decal, Liquide De FreinWarning Decal, Liquide De Frein
-
340293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
380704904367 English Mat Paint NoticeEnglish Mat Paint Notice
-
380704904371 French Mat Paint NoticeFrench Mat Paint Notice
