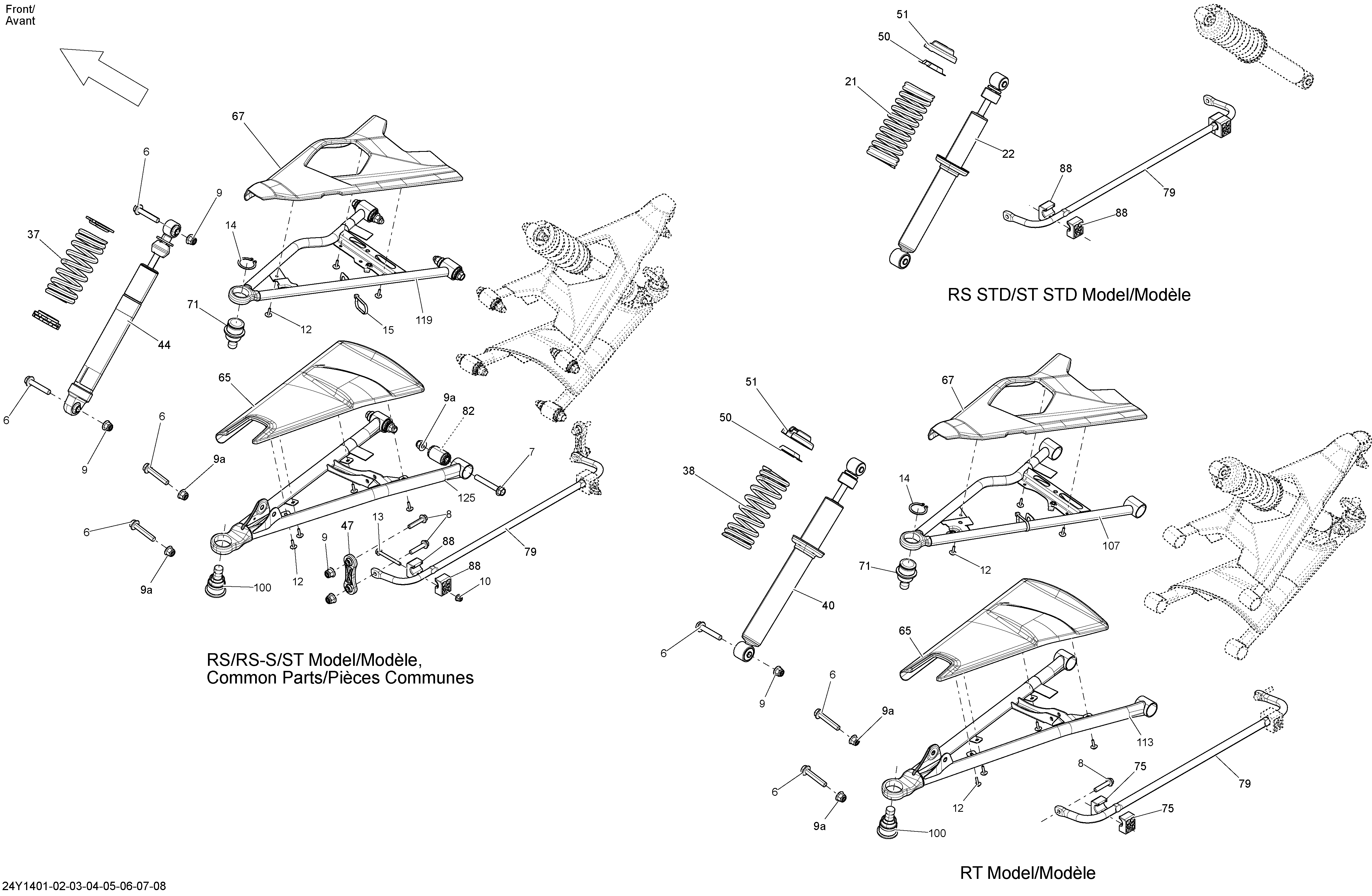

07- Suspension, Front _24Y1407 для BRP Spyder RS SM5 - 2014
-
№АртикулНазвание
-
6207605534 Hex. Flanged ScrewHex. Flanged Screw
-
6207605534 Hex. Flanged ScrewHex. Flanged Screw
-
7207607036 Hex. Flanged ScrewHex. Flanged Screw
-
8207684034 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
9233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
9233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9a233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
9a233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
10250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
12250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
12250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
13250000397 Hex. Flanged Screw DIN.6921 M6 X 60Hex. Flanged Screw DIN.6921 M6 X 60
-
14293370035 CirclipCirclip
-
15414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
21706001108 Spring. Model-RS STDSpring. Model-RS STD
-
22706001750 Shock. Model-RS STDShock. Model-RS STD
-
47706200671 Tie RodTie Rod
-
50706200785 Cap. Model-RS STDCap. Model-RS STD
-
51706200881 Spring Stopper. Model-RS STDSpring Stopper. Model-RS STD
-
65706201319 LH Lower Air DeflectorLH Lower Air Deflector
-
65706201320 RH Lower Air DeflectorRH Lower Air Deflector
-
67706201321 LH Upper Air Deflector. Model-RS STDLH Upper Air Deflector. Model-RS STD
-
67706201322 RH Upper Air Deflector. Model-RS STDRH Upper Air Deflector. Model-RS STD
-
71706201371 Ball JointBall Joint
-
79706201421 Sway Bar. Model-RS STDSway Bar. Model-RS STD
-
82706201519 Suspension Arm BushingSuspension Arm Bushing
-
88706201545 Stabilizer Bushing. Model-RS STDStabilizer Bushing. Model-RS STD
-
100706201739 Ball JointBall Joint
-
119706201735 LH Upper Arm. Model-RSLH Upper Arm. Model-RS
-
119706201736 RH Upper Arm. Model-RSRH Upper Arm. Model-RS
-
125706201737 LH Lower Arm. Model-RSLH Lower Arm. Model-RS
-
125706201738 RH Lower Arm. Model-RSRH Lower Arm. Model-RS
