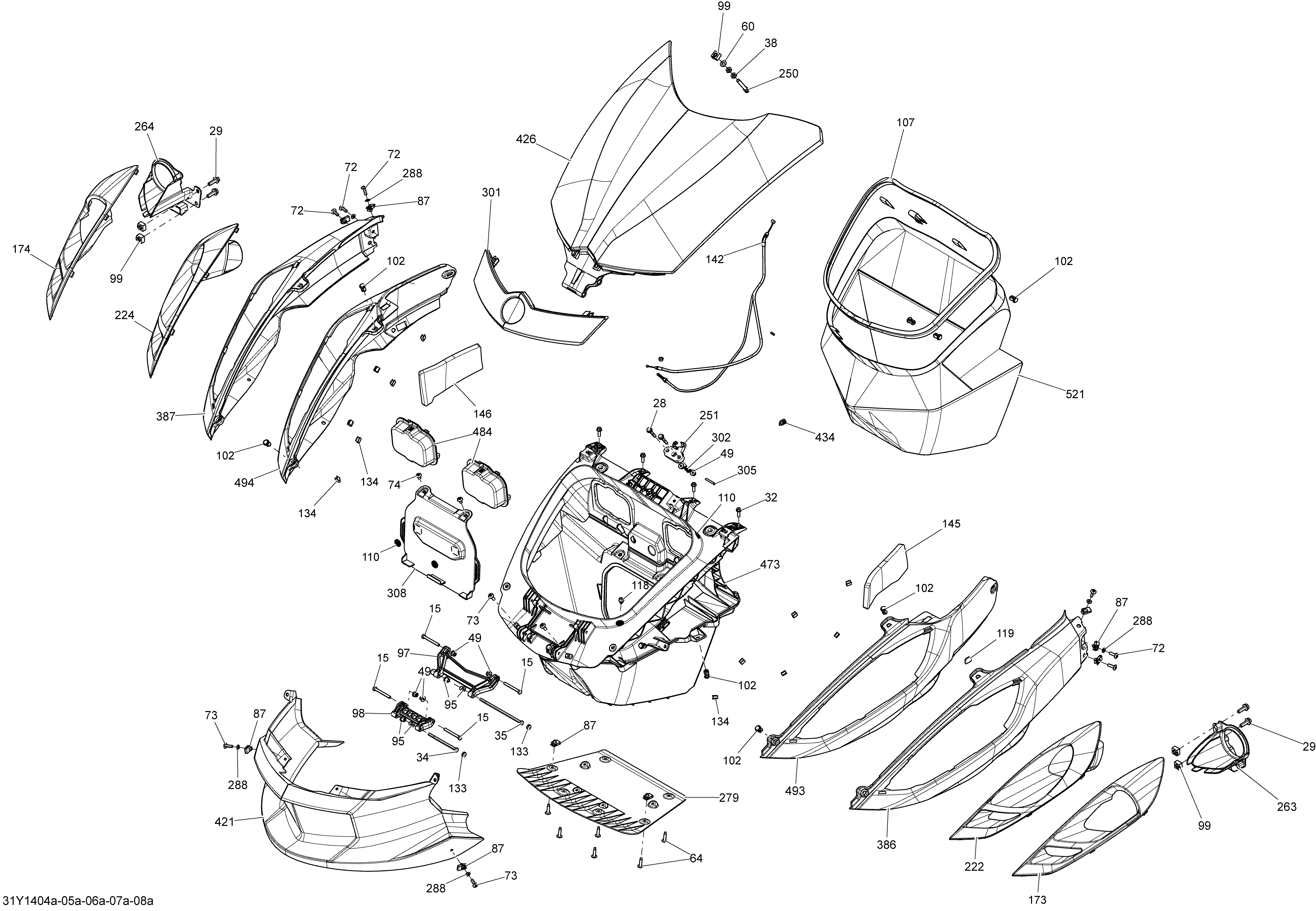

09- Body And Accessories Fr Storage_31Y1408a для BRP Spyder RSS SE5 - 2014
-
№АртикулНазвание
-
15207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
28207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
29207682534 Hex. Flanged Screw. Model-Australie, Brezil, EuropeHex. Flanged Screw. Model-Australie, Brezil, Europe
-
32210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
34230060060 Hex. Screw M6 X 100Hex. Screw M6 X 100
-
35230065060 Hex. Screw M6 X 150Hex. Screw M6 X 150
-
38232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
49233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
60234081410 Flat Washer 8 mmFlat Washer 8 mm
-
64250000081 Torx Screw M6 X 25Torx Screw M6 X 25
-
72250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
73250000446 Torx Screw Scotch Grip, M6 X 20. Model-RSTorx Screw Scotch Grip, M6 X 20. Model-RS
-
74250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
87250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
95269500706 SleeveSleeve
-
97269501481 Rear ArmRear Arm
-
98269501482 Front ArmFront Arm
-
99269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
102293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
107293250047 Neoprene SealNeoprene Seal
-
110293740028 Dual Lock Washer 3/4''Dual Lock Washer 3/4''
-
118293830005 Rubber BumperRubber Bumper
-
119293830143 Rubber Pad. Model-North America, Europe, Australie, JaponRubber Pad. Model-North America, Europe, Australie, Japon
-
133414436900 Black Snap CapBlack Snap Cap
-
134414479100 ClipClip
-
142517305459 Hood CableHood Cable
-
145518325515 LH Front Panel FoamLH Front Panel Foam
-
146518325516 RH Front Panel FoamRH Front Panel Foam
-
173705001469 LH Headlamp Bezel. Model-Australie, Brezil, EuropeLH Headlamp Bezel. Model-Australie, Brezil, Europe
-
174705001470 RH Headlamp Bezel. Model-Australie, Brezil, EuropeRH Headlamp Bezel. Model-Australie, Brezil, Europe
-
222705001541 LH Air Duct. Model-North AmericaLH Air Duct. Model-North America
-
224705001543 RH Air Duct. Model-North AmericaRH Air Duct. Model-North America
-
250705002223 LugLug
-
251705007379 LatchLatch
-
263705004796 Black LH Headlamp Support. Model-Australie, Brezil, EuropeBlack LH Headlamp Support. Model-Australie, Brezil, Europe
-
264705004797 Black RH Headlamp Support. Model-Australie, Brezil, EuropeBlack RH Headlamp Support. Model-Australie, Brezil, Europe
-
279705002837 Skid PlateSkid Plate
-
288705003207 Plastic WasherPlastic Washer
-
301705004572 Steel Black Front FasciaSteel Black Front Fascia
-
302219400242 SpringSpring
-
305515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
308705004628 Battery Cover Ass'YBattery Cover Ass'Y
-
386705007323 Black LH Front Pannel. Model-Steel Black Metallic BrezilBlack LH Front Pannel. Model-Steel Black Metallic Brezil
-
386705007688 Red Dragon LH Front Pannel. Model-Dragon Red AustralieRed Dragon LH Front Pannel. Model-Dragon Red Australie
-
386705007688 Red Dragon LH Front Pannel. Model-Dragon Red EuropeRed Dragon LH Front Pannel. Model-Dragon Red Europe
-
386705007688 Red Dragon LH Front Pannel. Model-Dragon Red North AmericaRed Dragon LH Front Pannel. Model-Dragon Red North America
-
386705007691 Circuit Yellow LH Front Pannel. Model-Circuit Yellow Met.Circuit Yellow LH Front Pannel. Model-Circuit Yellow Met.
-
386705007692 Black Current LH Front Pannel. Model-Black Current Met.Black Current LH Front Pannel. Model-Black Current Met.
-
386705007695 Vegas White Pearl LH Front Pannel. Model-Vegas White PearlVegas White Pearl LH Front Pannel. Model-Vegas White Pearl
-
386705007696 Steel Black LH Front Pannel. Model-Steel Black Metallic AustralieSteel Black LH Front Pannel. Model-Steel Black Metallic Australie
-
386705007696 Steel Black LH Front Pannel. Model-Steel Black Metallic EuropeSteel Black LH Front Pannel. Model-Steel Black Metallic Europe
-
386705007696 Steel Black LH Front Pannel. Model-Steel Black Metallic North AmericaSteel Black LH Front Pannel. Model-Steel Black Metallic North America
-
386705007697 Sunburst Yellow LH Front Pannel. Model-Sunburst Yellow Satin EuropeSunburst Yellow LH Front Pannel. Model-Sunburst Yellow Satin Europe
-
386705007697 Sunburst Yellow LH Front Pannel. Model-Sunburst Yellow Satin North AmericaSunburst Yellow LH Front Pannel. Model-Sunburst Yellow Satin North America
-
386705007698 Cognac LH Front Pannel. Model-Cognac AustralieCognac LH Front Pannel. Model-Cognac Australie
-
386705007698 Cognac LH Front Pannel. Model-Cognac EuropeCognac LH Front Pannel. Model-Cognac Europe
-
386705007698 Cognac LH Front Pannel. Model-Cognac North AmericaCognac LH Front Pannel. Model-Cognac North America
-
386705007699 Platinum Silver LH Front Pannel. Model-Platinum Silver Satin (Platinum Satin) EuropePlatinum Silver LH Front Pannel. Model-Platinum Silver Satin (Platinum Satin) Europe
-
386705007699 Platinum Silver LH Front Pannel. Model-Platinum Silver Satin (Platinum Satin) North AmericaPlatinum Silver LH Front Pannel. Model-Platinum Silver Satin (Platinum Satin) North America
-
386705007700 Vegas White LH Front Pannel. Model-Vegas White SatinVegas White LH Front Pannel. Model-Vegas White Satin
-
386705008060 Cognac LH Front Pannel. Model-Cognac BrezilCognac LH Front Pannel. Model-Cognac Brezil
-
386705008062 Platinum Silver LH Front Pannel. Model-Platinum Silver Satin (Platinum Satin) BrezilPlatinum Silver LH Front Pannel. Model-Platinum Silver Satin (Platinum Satin) Brezil
-
386705008064 Sunburst Yellow LH Front Pannel. Model-Sunburst Yellow Satin BrezilSunburst Yellow LH Front Pannel. Model-Sunburst Yellow Satin Brezil
-
387705007324 Black RH Front Pannel. Model-Steel Black Metallic BrezilBlack RH Front Pannel. Model-Steel Black Metallic Brezil
-
387705007701 Red Dragon RH Front Pannel. Model-Dragon Red AustralieRed Dragon RH Front Pannel. Model-Dragon Red Australie
-
387705007701 Red Dragon RH Front Pannel. Model-Dragon Red EuropeRed Dragon RH Front Pannel. Model-Dragon Red Europe
-
387705007701 Red Dragon RH Front Pannel. Model-Dragon Red North AmericaRed Dragon RH Front Pannel. Model-Dragon Red North America
-
387705007702 Circuit Yellow RH Front Pannel. Model-Circuit Yellow Met.Circuit Yellow RH Front Pannel. Model-Circuit Yellow Met.
-
387705007703 Black Current RH Front Pannel. Model-Black Current Met.Black Current RH Front Pannel. Model-Black Current Met.
-
387705007706 Vegas White Pearl RH Front Pannel. Model-Vegas White PearlVegas White Pearl RH Front Pannel. Model-Vegas White Pearl
-
387705007707 Steel Black RH Front Pannel. Model-Steel Black Metallic AustralieSteel Black RH Front Pannel. Model-Steel Black Metallic Australie
-
387705007707 Steel Black RH Front Pannel. Model-Steel Black Metallic EuropeSteel Black RH Front Pannel. Model-Steel Black Metallic Europe
-
387705007707 Steel Black RH Front Pannel. Model-Steel Black Metallic North AmericaSteel Black RH Front Pannel. Model-Steel Black Metallic North America
-
387705007708 Sunburst Yellow RH Front Pannel. Model-Sunburst Yellow Satin EuropeSunburst Yellow RH Front Pannel. Model-Sunburst Yellow Satin Europe
-
387705007708 Sunburst Yellow RH Front Pannel. Model-Sunburst Yellow Satin North AmericaSunburst Yellow RH Front Pannel. Model-Sunburst Yellow Satin North America
-
387705007709 Cognac RH Front Pannel. Model-Cognac AustralieCognac RH Front Pannel. Model-Cognac Australie
-
387705007709 Cognac RH Front Pannel. Model-Cognac EuropeCognac RH Front Pannel. Model-Cognac Europe
-
387705007709 Cognac RH Front Pannel. Model-Cognac North AmericaCognac RH Front Pannel. Model-Cognac North America
-
387705007710 Platinum Silver RH Front Pannel. Model-Platinum Silver Satin (Platinum Satin) EuropePlatinum Silver RH Front Pannel. Model-Platinum Silver Satin (Platinum Satin) Europe
-
387705007710 Platinum Silver RH Front Pannel. Model-Platinum Silver Satin (Platinum Satin) North AmericaPlatinum Silver RH Front Pannel. Model-Platinum Silver Satin (Platinum Satin) North America
-
387705007711 Vegas White RH Front Pannel. Model-Vegas White SatinVegas White RH Front Pannel. Model-Vegas White Satin
-
387705008059 Cognac RH Front Pannel. Model-Cognac BrezilCognac RH Front Pannel. Model-Cognac Brezil
-
387705008061 Platinum Silver RH Front Pannel. Model-Platinum Silver Satin (Platinum Satin) BrezilPlatinum Silver RH Front Pannel. Model-Platinum Silver Satin (Platinum Satin) Brezil
-
387705008063 Sunburst Yellow RH Front Pannel. Model-Sunburst Yellow Satin BrezilSunburst Yellow RH Front Pannel. Model-Sunburst Yellow Satin Brezil
-
421705006268 Red Dragon Bumper Cover. Model-Red DragonRed Dragon Bumper Cover. Model-Red Dragon
-
421705007664 Sunburst Yellow Bumper Cover. Model-Sunburst Yellow SatinSunburst Yellow Bumper Cover. Model-Sunburst Yellow Satin
-
421705007673 Vegas White Bumper Cover. Model-Vegas White SatinVegas White Bumper Cover. Model-Vegas White Satin
-
426705007677 Platinum Silver Hood. Model-Platinum Silver Satin (Platinum Satin)Platinum Silver Hood. Model-Platinum Silver Satin (Platinum Satin)
-
426705007988 Vegas White Pearl Hood. Model-Model-Vegas WhiteVegas White Pearl Hood. Model-Model-Vegas White
-
426705007991 Circuit Yellow Hood. Model-Circuit Yellow Met.Circuit Yellow Hood. Model-Circuit Yellow Met.
-
493705006613 Red Dragon LH Front Pannel. Model-Dragon Red BrezilRed Dragon LH Front Pannel. Model-Dragon Red Brezil
-
493705006614 Red Dragon RH Front Pannel. Model-Dragon Red BrezilRed Dragon RH Front Pannel. Model-Dragon Red Brezil
-
426705007992 Steel Black Hood. Model-RS SSteel Black Hood. Model-RS S
-
494705007711 Vegas White RH Front Pannel. Model-Vegas White SatinVegas White RH Front Pannel. Model-Vegas White Satin
