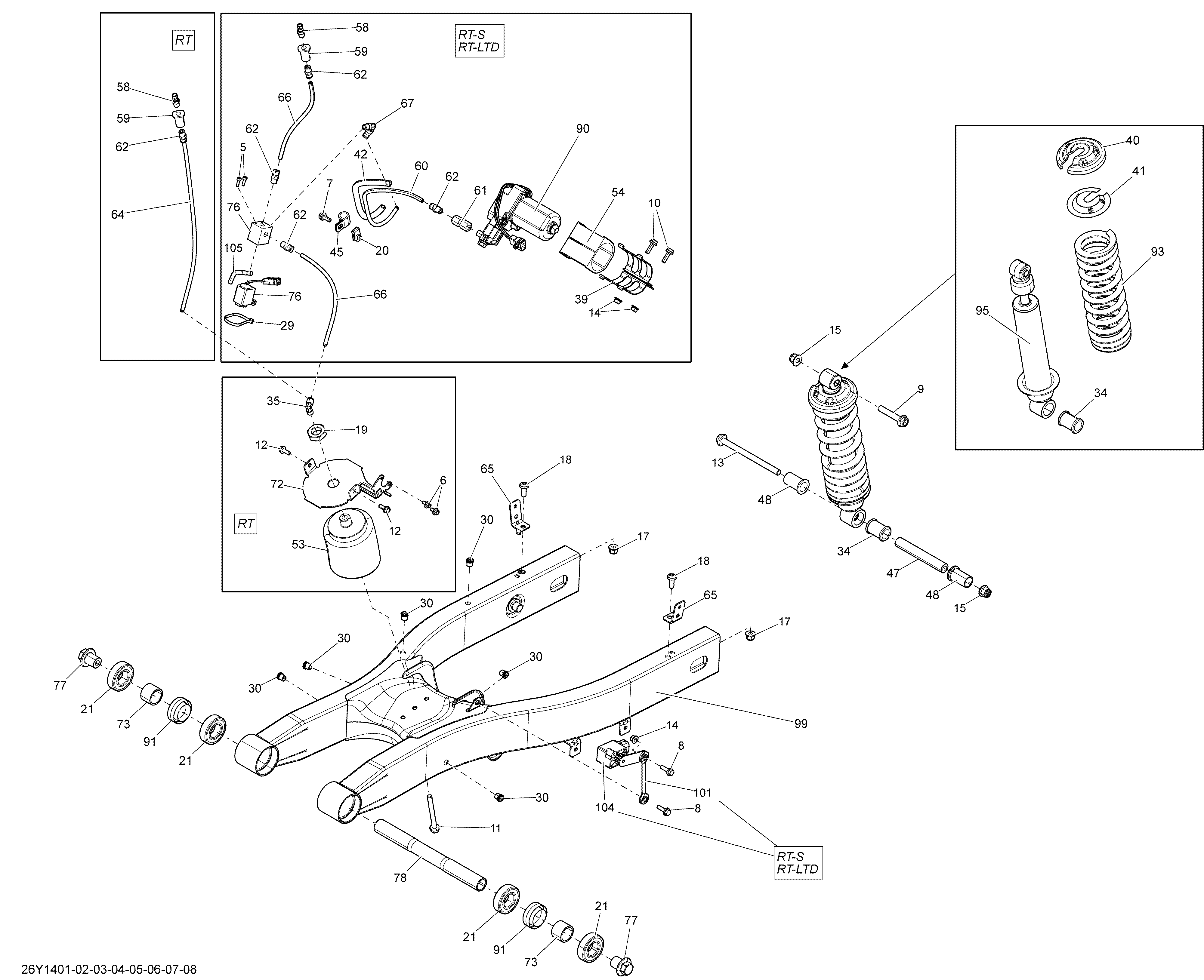

08- Suspension, Rear _26Y1402 для BRP Spyder RTS SM6 - 2014
-
№АртикулНазвание
-
5205041284 Socket Head Screw M4 X 12Socket Head Screw M4 X 12
-
6207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
9207605534 Hex. Flanged ScrewHex. Flanged Screw
-
10207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11207687544 Hex. Flanged Screw M8 X 75Hex. Flanged Screw M8 X 75
-
12210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
13230604034 Flanged Hex. Screw M10 X 140Flanged Hex. Screw M10 X 140
-
14233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
15233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
18236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
19250100119 Jam Nut M20Jam Nut M20
-
20250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
21293350055 Ball BearingBall Bearing
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
30293450275 InsertInsert
-
34503191609 Urethane CushionUrethane Cushion
-
35706001018 Elbow 90°Elbow 90°
-
39503193103 Compressor BracketCompressor Bracket
-
40503193781 Spring StopperSpring Stopper
-
41503193782 CapCap
-
42515175442 Tubing 6 mmTubing 6 mm
-
45705600232 Hose Retainer 13 mmHose Retainer 13 mm
-
47706000409 Shock Absorber ShaftShock Absorber Shaft
-
48706000410 SpacerSpacer
-
53219800175 Air Damper KitAir Damper Kit
-
54706000631 Compressor IsolatorCompressor Isolator
-
58706000678 Air ValveAir Valve
-
59706000735 Pneumatic ConnectorPneumatic Connector
-
60706000891 HoseHose
-
61706000831 Ckeck ValveCkeck Valve
-
62706000869 ConnectorConnector
-
64706000893 HoseHose
-
65706000895 BracketBracket
-
66415129507 HoseHose
-
67706000928 Elbow 90°Elbow 90°
-
72706001082 Support PlateSupport Plate
-
73706001152 SpacerSpacer
-
76706001175 Air Manifold Ass'yAir Manifold Ass'y
-
77706001579 Bolt M20Bolt M20
-
78706001182 Swing Arm AxleSwing Arm Axle
-
90706001349 CompressorCompressor
-
91706001366 SleeveSleeve
-
93706001542 Shock Absorber SpringShock Absorber Spring
-
95706001552 Shock AbsorberShock Absorber
-
99706001574 Swing ArmSwing Arm
-
101706201815 Tie RodTie Rod
-
104710001651 Position SensorPosition Sensor
-
105515175442 Tubing 6 mmTubing 6 mm
