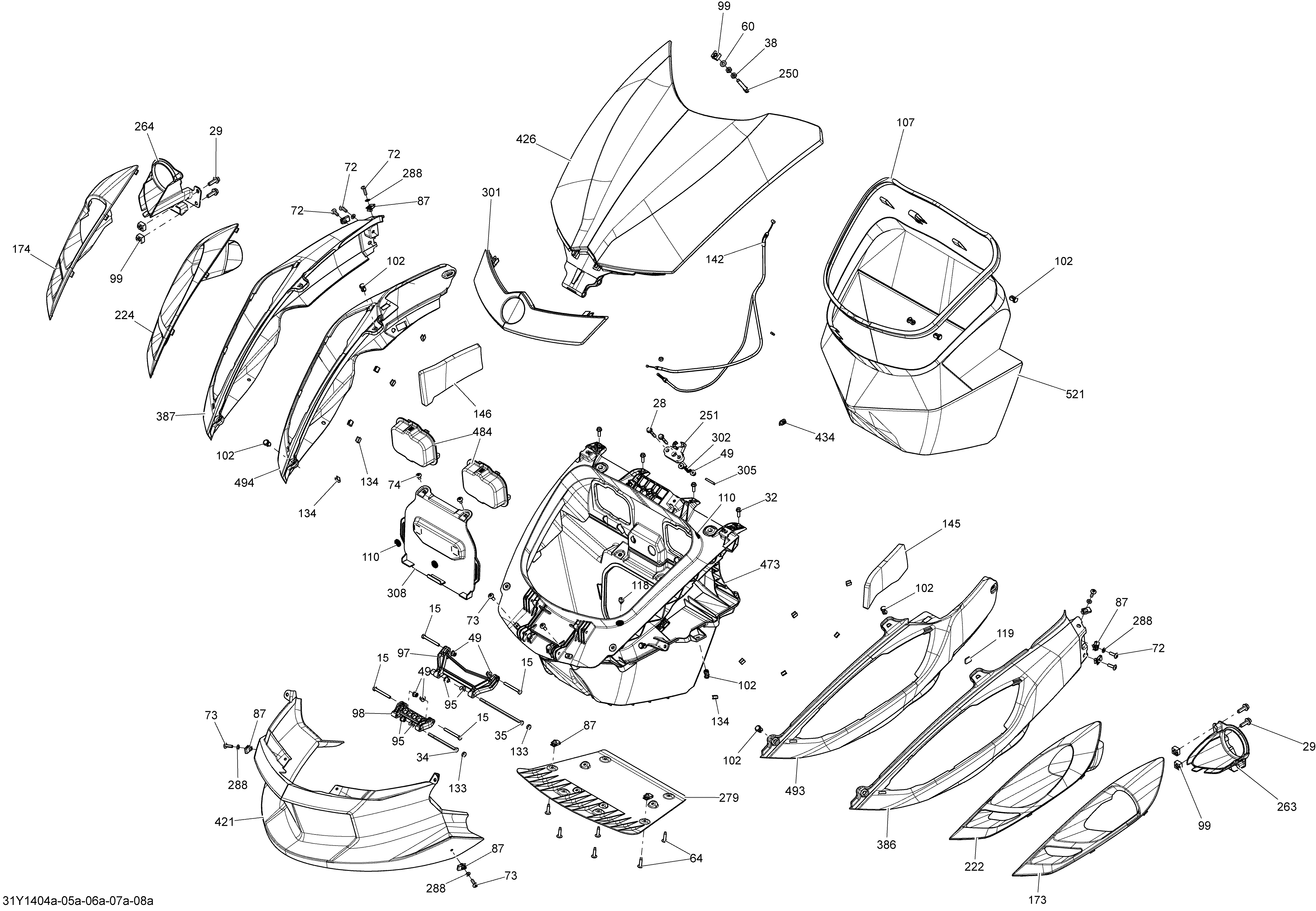

09- Body And Accessories Fr Storage_31Y1404a для BRP Spyder ST SM5 - 2014
-
№АртикулНазвание
-
15207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
28207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
29207682534 Hex. Flanged Screw. Model-Australie, Brezil, EuropeHex. Flanged Screw. Model-Australie, Brezil, Europe
-
32210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
34230060060 Hex. Screw M6 X 100Hex. Screw M6 X 100
-
35230065060 Hex. Screw M6 X 150Hex. Screw M6 X 150
-
38232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
49233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
60234081410 Flat Washer 8 mmFlat Washer 8 mm
-
64250000081 Torx Screw M6 X 25Torx Screw M6 X 25
-
72250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
73250000446 Torx Screw Scotch Grip, M6 X 20Torx Screw Scotch Grip, M6 X 20
-
74250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
87250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
95269500706 SleeveSleeve
-
97269501481 Rear ArmRear Arm
-
98269501482 Front ArmFront Arm
-
99269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
102293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
107293250047 Neoprene SealNeoprene Seal
-
110293740028 Dual Lock Washer 3/4''Dual Lock Washer 3/4''
-
118293830005 Rubber BumperRubber Bumper
-
119293830143 Rubber Pad. Model-North America, Europe, Australie, JaponRubber Pad. Model-North America, Europe, Australie, Japon
-
133414436900 Black Snap CapBlack Snap Cap
-
134414479100 ClipClip
-
142517305459 Hood CableHood Cable
-
145518325515 LH Front Panel FoamLH Front Panel Foam
-
146518325516 RH Front Panel FoamRH Front Panel Foam
-
173705001469 LH Headlamp Bezel. Model-Australie, Brezil, EuropeLH Headlamp Bezel. Model-Australie, Brezil, Europe
-
174705001470 RH Headlamp Bezel. Model-Australie, Brezil, EuropeRH Headlamp Bezel. Model-Australie, Brezil, Europe
-
222705001541 LH Air Duct. Model-North AmericaLH Air Duct. Model-North America
-
224705001543 RH Air Duct. Model-North AmericaRH Air Duct. Model-North America
-
250705002223 LugLug
-
251705007379 LatchLatch
-
263705004796 Black LH Headlamp Support. Model-Australie, Brezil, EuropeBlack LH Headlamp Support. Model-Australie, Brezil, Europe
-
264705004797 Black RH Headlamp Support. Model-Australie, Brezil, EuropeBlack RH Headlamp Support. Model-Australie, Brezil, Europe
-
279705002837 Skid PlateSkid Plate
-
288705003207 Plastic WasherPlastic Washer
-
301705004572 Steel Black Front Fascia. Model-Steel Black Met.Steel Black Front Fascia. Model-Steel Black Met.
-
301705003875 Pearl White Front Fascia. Model-Vegas White PearlPearl White Front Fascia. Model-Vegas White Pearl
-
302219400242 SpringSpring
-
305515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
308705004628 Battery Cover Ass'YBattery Cover Ass'Y
-
386705007323 Black LH Front Pannel. Model-Steel Black Met. BrezilBlack LH Front Pannel. Model-Steel Black Met. Brezil
-
387705007324 Black RH Front Pannel. Model-Steel Black Met. BrezilBlack RH Front Pannel. Model-Steel Black Met. Brezil
-
421705006270 Steel Black Bumper Cover. Model-ST STDSteel Black Bumper Cover. Model-ST STD
-
426705007992 Steel Black Hood. Model-Steel Black Met.Steel Black Hood. Model-Steel Black Met.
-
426705007988 Vegas White Pearl Hood. Model-Vegas White PearlVegas White Pearl Hood. Model-Vegas White Pearl
-
473705008320 Storage Bin Ass'yStorage Bin Ass'y
-
484705007483 Fuse Cover Ass'yFuse Cover Ass'y
-
493705007696 Steel Black LH Front Pannel. Model-Steel Black Met. AustralieSteel Black LH Front Pannel. Model-Steel Black Met. Australie
-
493705007696 Steel Black LH Front Pannel. Model-Steel Black Met. EuropeSteel Black LH Front Pannel. Model-Steel Black Met. Europe
-
493705007696 Steel Black LH Front Pannel. Model-Steel Black Met. North AmericaSteel Black LH Front Pannel. Model-Steel Black Met. North America
-
493705007695 Vegas White Pearl LH Front Pannel. Model-Vegas White PearlVegas White Pearl LH Front Pannel. Model-Vegas White Pearl
-
494705007707 Steel Black RH Front Pannel. Model-Steel Black Met. AustralieSteel Black RH Front Pannel. Model-Steel Black Met. Australie
-
494705007707 Steel Black RH Front Pannel. Model-Steel Black Met. EuropeSteel Black RH Front Pannel. Model-Steel Black Met. Europe
-
494705007707 Steel Black RH Front Pannel. Model-Steel Black Met. North AmericaSteel Black RH Front Pannel. Model-Steel Black Met. North America
-
494705007706 Vegas White Pearl RH Front Pannel. Model-Vegas White PearlVegas White Pearl RH Front Pannel. Model-Vegas White Pearl
-
494705007710 Platinum Silver RH Front PannelPlatinum Silver RH Front Pannel
