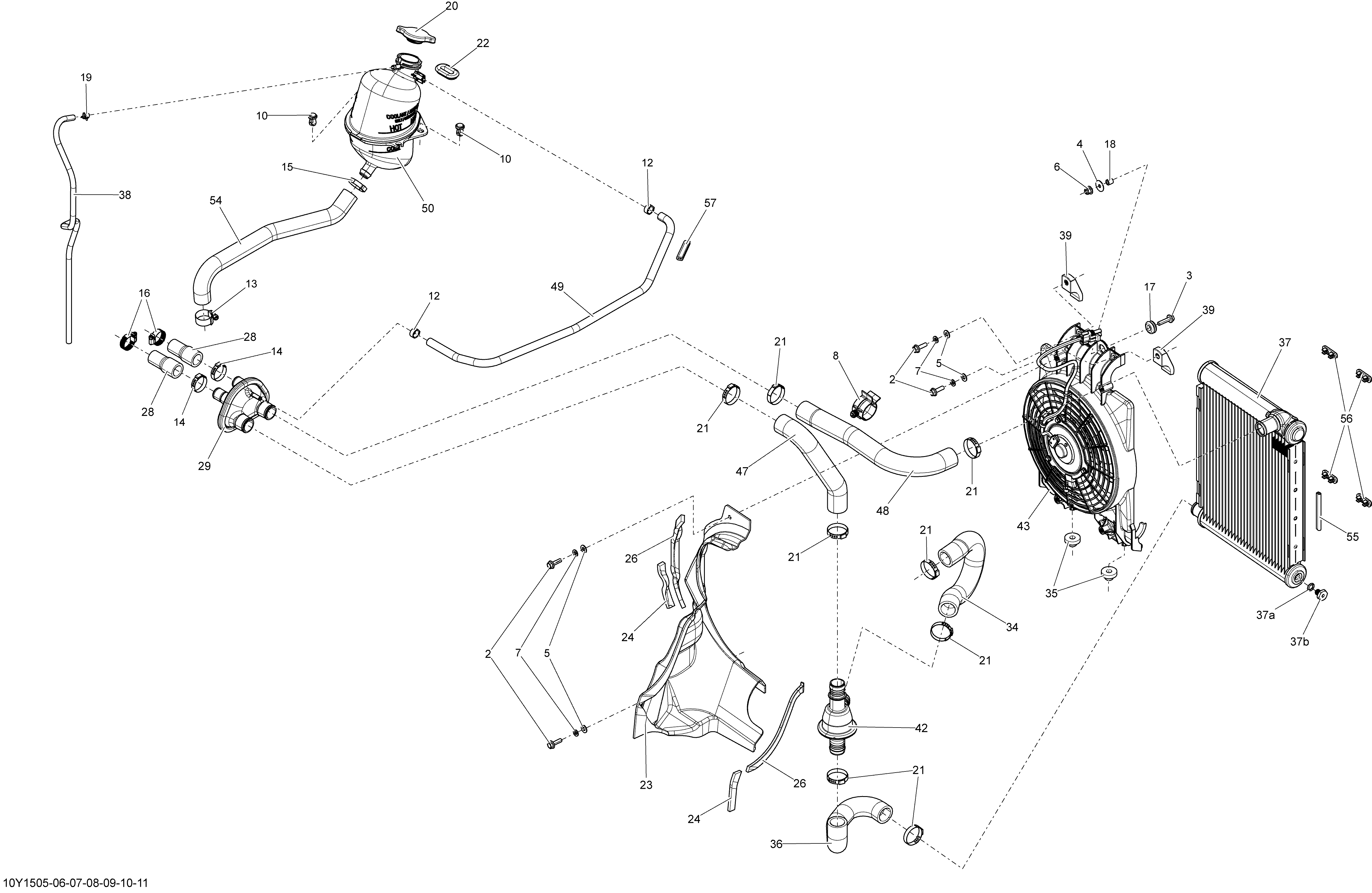

01- Cooling System _10Y1509 для BRP Spyder RS SE5 - 2015
-
№АртикулНазвание
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4224060201 Flat WasherFlat Washer
-
5224061121 Flat WasherFlat Washer
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7234161601 Lock Washer Helical M6Lock Washer Helical M6
-
8275500590 RetainerRetainer
-
10293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
12293650025 Oetiker Gear ClampOetiker Gear Clamp
-
13293650051 Tridon Gear ClampTridon Gear Clamp
-
14293650099 Crimp ClampCrimp Clamp
-
15293650165 Oetiker ClampOetiker Clamp
-
16293650173 Tridon Gear ClampTridon Gear Clamp
-
17293720053 GrommetGrommet
-
18293900105 BushingBushing
-
19414554800 Spring ClampSpring Clamp
-
20509000187 Pressure CapPressure Cap
-
21509000529 Oetiker Gear ClampOetiker Gear Clamp
-
22705003668 Oblong GrommetOblong Grommet
-
23705006688 RH Inner Heat ShieldRH Inner Heat Shield
-
24293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
26293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
28709200144 Formed HoseFormed Hose
-
29709200151 ConnectorConnector
-
34709200259 Formed HoseFormed Hose
-
35709200285 GrommetGrommet
-
36709200301 Formed HoseFormed Hose
-
37709200337 Radiator. Includes 37 to 37bRadiator. Includes 37 to 37b
-
37a709200417 O-RingO-Ring
-
37b709200418 Drain PlugDrain Plug
-
38415080200 Hose, PolyurethaneHose, Polyurethane
-
39709200372 Clamp BracketClamp Bracket
-
42709200384 Thermostat HousingThermostat Housing
-
43709200554 Fan AssemblyFan Assembly
-
47709200419 Formed HoseFormed Hose
-
48709200420 Formed HoseFormed Hose
-
49709200421 Formed HoseFormed Hose
-
50709200528 Coolant TankCoolant Tank
-
54709200489 Formed HoseFormed Hose
-
55414506600 TrimTrim
-
56709200502 Rubber StopperRubber Stopper
-
57271001530 TrimTrim
