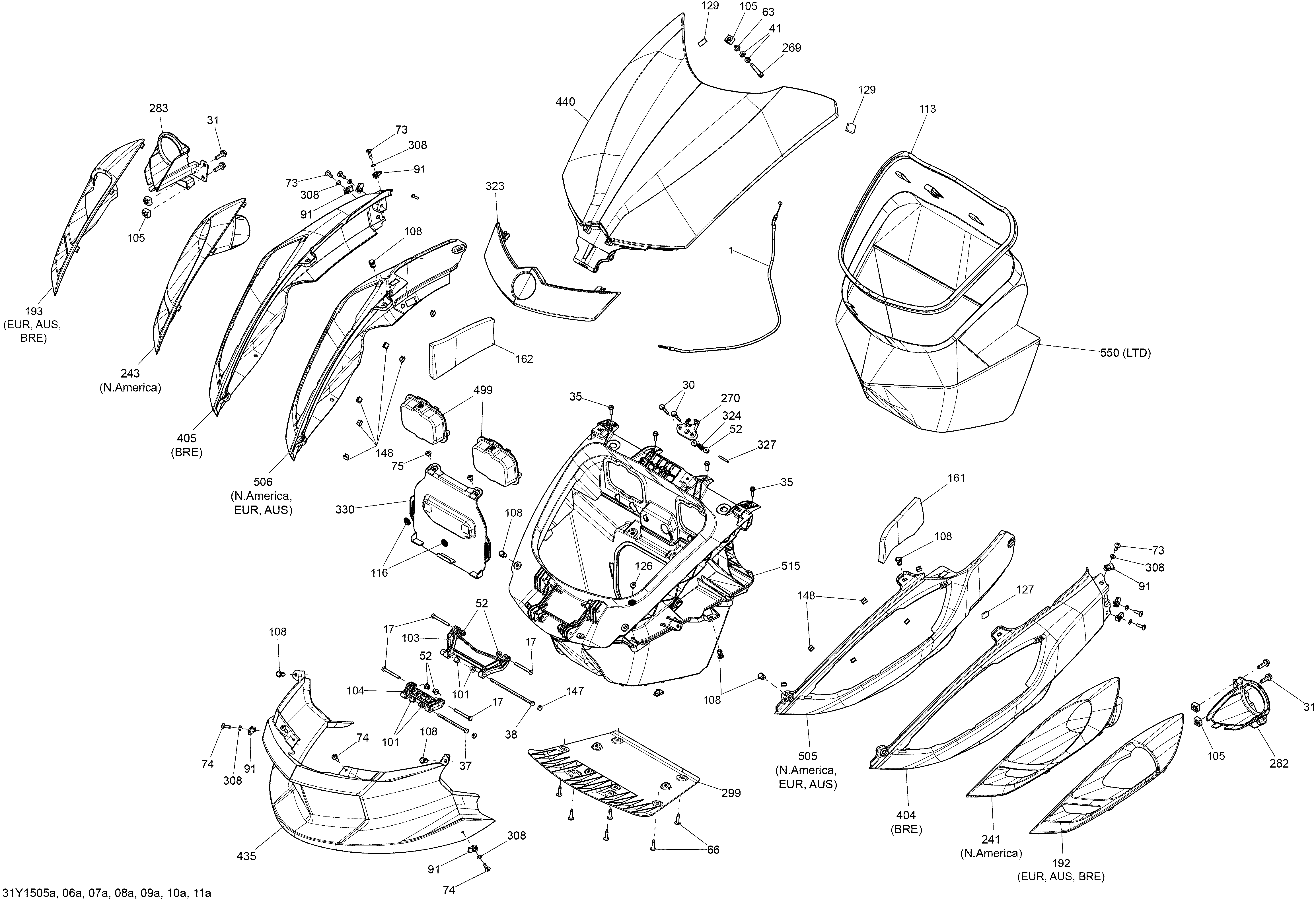

09- Body And Accessories Fr Storage_31Y1509a для BRP Spyder RS SM5 - 2015
-
№АртикулНазвание
-
1517305742 Hood CableHood Cable
-
17207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
30207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
31207682534 Hex. Flanged Screw M8 X 25. Model-Europe, Australia, BrazilHex. Flanged Screw M8 X 25. Model-Europe, Australia, Brazil
-
35210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
37230060060 Hex. Screw M6 X 100Hex. Screw M6 X 100
-
38230065060 Hex. Screw M6 X 150Hex. Screw M6 X 150
-
41232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
52233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
63234081410 Flat Washer 8 mmFlat Washer 8 mm
-
66250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
73250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
74250000446 Torx Screw Scotch Grip, M6 X 20Torx Screw Scotch Grip, M6 X 20
-
75250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
91250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
101269500706 SleeveSleeve
-
103269501481 Rear ArmRear Arm
-
104269501482 Front ArmFront Arm
-
105269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
108293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
113293250047 Neoprene Seal. SERVNeoprene Seal. SERV
-
116293740028 Dual Lock Washer 3/4''Dual Lock Washer 3/4''
-
126293830005 Rubber BumperRubber Bumper
-
127293830143 Rubber Pad. Model-North America, Europe, AustraliaRubber Pad. Model-North America, Europe, Australia
-
129293830175 Rubber PadRubber Pad
-
147414436900 Black Snap CapBlack Snap Cap
-
148414479100 ClipClip
-
161518325515 LH Front Panel FoamLH Front Panel Foam
-
162518325516 RH Front Panel FoamRH Front Panel Foam
-
192705001469 LH Headlamp Bezel. Model-Europe, Australia, BrazilLH Headlamp Bezel. Model-Europe, Australia, Brazil
-
193705001470 RH Headlamp Bezel. Model-Europe, Australia, BrazilRH Headlamp Bezel. Model-Europe, Australia, Brazil
-
241705001541 LH Air Duct. Model-North AmericaLH Air Duct. Model-North America
-
243705001543 RH Air Duct. Model-North AmericaRH Air Duct. Model-North America
-
269705002223 LugLug
-
270705007379 LatchLatch
-
282705004796 Black LH Headlamp Support. Model-Europe, Australia, BrazilBlack LH Headlamp Support. Model-Europe, Australia, Brazil
-
283705004797 Black RH Headlamp Support. Model-Europe, Australia, BrazilBlack RH Headlamp Support. Model-Europe, Australia, Brazil
-
299705002837 Skid PlateSkid Plate
-
308705003207 Plastic WasherPlastic Washer
-
323705004572 Steel Black Front Fascia. Model-Steel Black MetSteel Black Front Fascia. Model-Steel Black Met
-
324219400242 SpringSpring
-
327515175332 Vinyl Tubing, Low Temperature. SERVVinyl Tubing, Low Temperature. SERV
-
330705004628 Battery Cover Ass'YBattery Cover Ass'Y
-
404705007323 Black LH Front Pannel. Model-Steel Black Met BrazilBlack LH Front Pannel. Model-Steel Black Met Brazil
-
405705007324 Black RH Front Pannel. Model-Steel Black Met BrazilBlack RH Front Pannel. Model-Steel Black Met Brazil
-
435705006270 Steel Black Bumper CoverSteel Black Bumper Cover
-
440705007992 Steel Black Hood. Model-Steel Black MetSteel Black Hood. Model-Steel Black Met
-
499705007483 Fuse Cover Ass'yFuse Cover Ass'y
-
505705007696 Steel Black LH Front Pannel. Model-Steel Black Met North America, Europe, AustraliaSteel Black LH Front Pannel. Model-Steel Black Met North America, Europe, Australia
-
506705007707 Steel Black RH Front Pannel. Model-Steel Black Met North America, Europe, AustraliaSteel Black RH Front Pannel. Model-Steel Black Met North America, Europe, Australia
-
514705008320 Storage Bin Ass'yStorage Bin Ass'y
