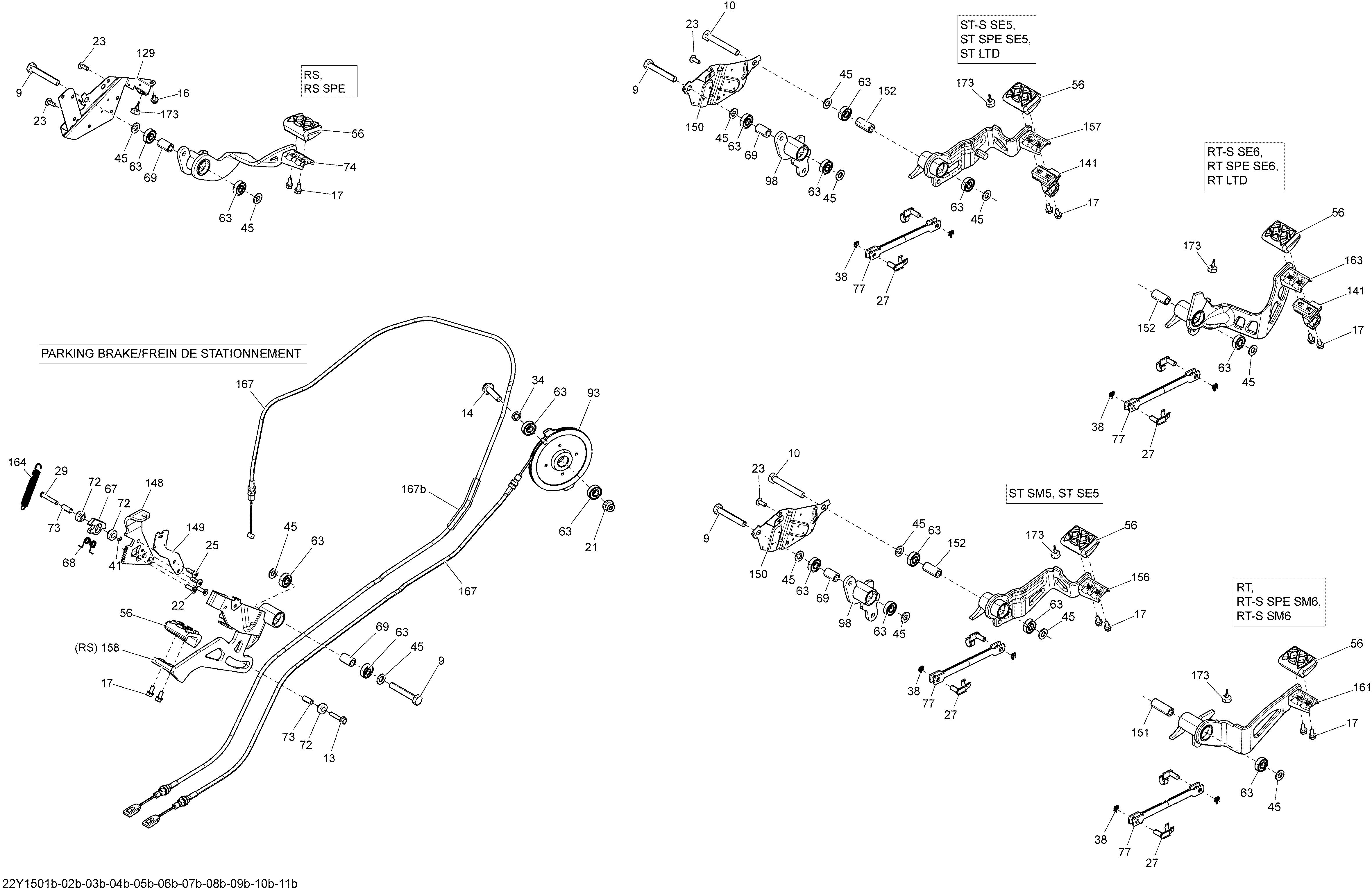

06- Hydraulic Brake Pedal_22Y1510b для BRP Spyder RSS SE5 - 2015
-
№АртикулНазвание
-
9207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
13207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
16210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
17210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
22250000643 Torx Screw Flat Head T-30 S.Grip M6X20Torx Screw Flat Head T-30 S.Grip M6X20
-
23250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
25250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
27250400062 PinPin
-
29293370064 PinPin
-
38371800700 Cotter PinCotter Pin
-
41414439000 CirclipCirclip
-
45503183800 WasherWasher
-
56705004933 Rubber PadRubber Pad
-
63705600458 BearingBearing
-
67705600524 KeyKey
-
68705600525 SpringSpring
-
69705600541 BushingBushing
-
72705600587 BushingBushing
-
73705600588 BushingBushing
-
74705600633 Brake PedalBrake Pedal
-
129705601136 Tab LockTab Lock
-
148705601269 Pedal PlatePedal Plate
-
149705601270 Switch PlateSwitch Plate
-
150705601136 Tab LockTab Lock
-
158705601289 Parking PedalParking Pedal
-
164707000543 SpringSpring
-
167707001802 Parking Brake CableParking Brake Cable
-
173708000759 Rubber StopperRubber Stopper
