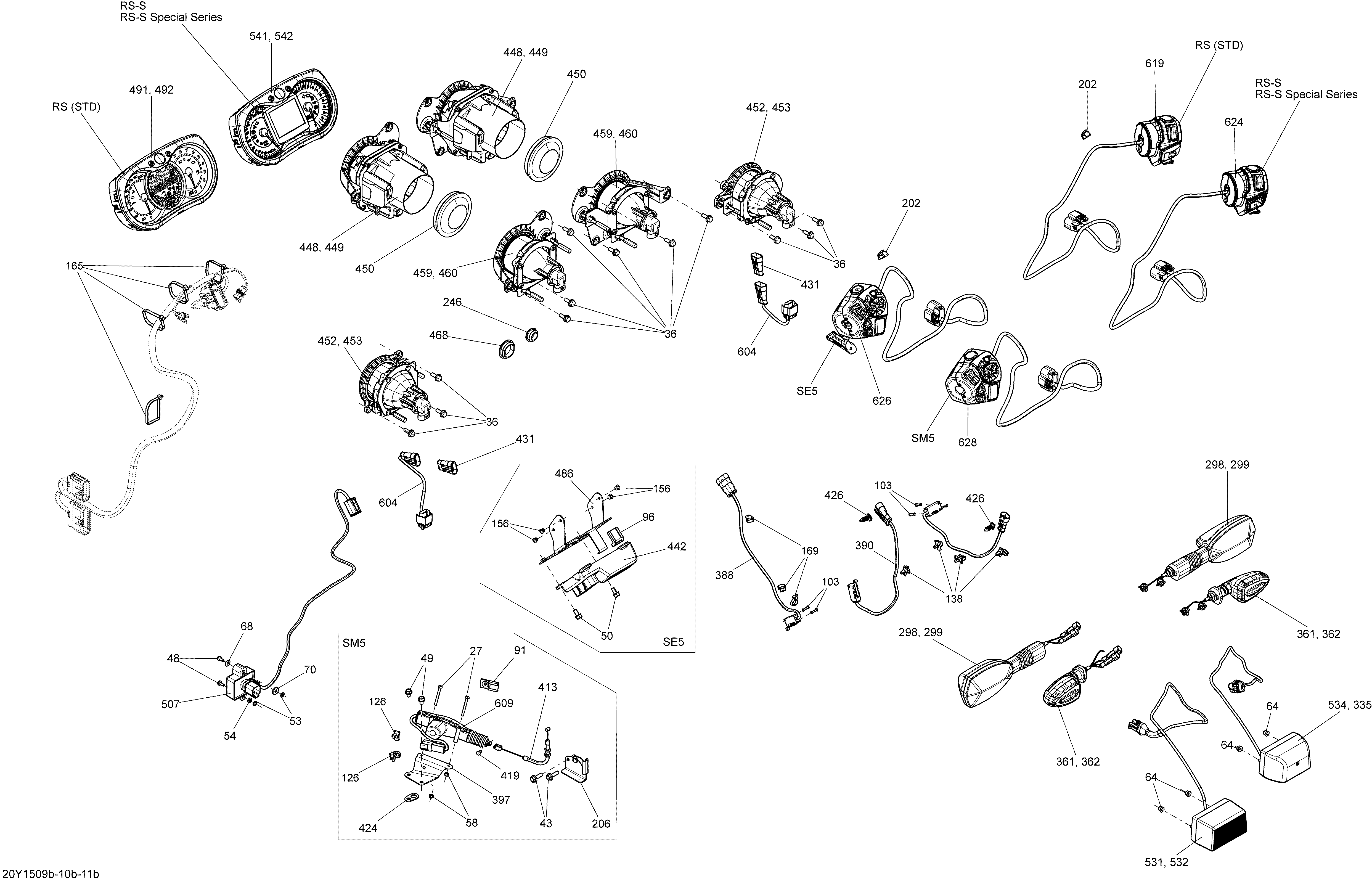

10- Electrical System 2_20Y1510b для BRP Spyder RSS SM5 - 2015
-
№АртикулНазвание
-
27205444086 Socket Head Screw M4 X 40. SM5Socket Head Screw M4 X 40. SM5
-
36207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
43207662044 Hex. Flanged Screw M6 X 20. SM5Hex. Flanged Screw M6 X 20. SM5
-
48250000674 Hex. Screw Forming M4 X 16. Model-Brazil, AustraliaHex. Screw Forming M4 X 16. Model-Brazil, Australia
-
49210261080 Hex. Flanged Screw M6 X 10. SM5Hex. Flanged Screw M6 X 10. SM5
-
50210261280 Hex. Flanged Screw M6 X 12. SE5Hex. Flanged Screw M6 X 12. SE5
-
53211100002 Push Nut. Model-Brazil, AustraliaPush Nut. Model-Brazil, Australia
-
54213200016 Flat Washer, Emhart. Model-Brazil, AustraliaFlat Washer, Emhart. Model-Brazil, Australia
-
58232541414 Elastic Stop Nut M4. SM5Elastic Stop Nut M4. SM5
-
64233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
68234042600 Flat Washer 4 mm, Stainless. Model-Brazil, AustraliaFlat Washer 4 mm, Stainless. Model-Brazil, Australia
-
70234052400 Flat Washer 5 mm, Stainless. Model-Brazil, AustraliaFlat Washer 5 mm, Stainless. Model-Brazil, Australia
-
91270000141 Clip. SM5Clip. SM5
-
96278001166 Module Protector. SE5Module Protector. SE5
-
103293150150 Pop RivetPop Rivet
-
126293750009 Tie-Rap 173 mm. SM5Tie-Rap 173 mm. SM5
-
138293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
156390402400 Pop Rivet 3/16''. SE5Pop Rivet 3/16''. SE5
-
165414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
202414227300 Clip. SM5Clip. SM5
-
206420251565 Reverse Cable Support. SM5Reverse Cable Support. SM5
-
246705003464 CapCap
-
298710003668 Rear Flasher. Model-Europe, Brazil, Australia, Includes 298 to 299Rear Flasher. Model-Europe, Brazil, Australia, Includes 298 to 299
-
299715900043 Bulb 12V 21W. Model-Europe, Brazil, AustraliaBulb 12V 21W. Model-Europe, Brazil, Australia
-
361710001290 LH Rear Turn Signal Ass'y. Model-North America, Includes 261 to 262LH Rear Turn Signal Ass'y. Model-North America, Includes 261 to 262
-
361710001337 RH Rear Turn Signal Ass'y. Model-North America, Includes 261 to 262RH Rear Turn Signal Ass'y. Model-North America, Includes 261 to 262
-
362219800039 Bulb 12V/10W, Amber. Model-North AmericaBulb 12V/10W, Amber. Model-North America
-
388710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
390710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
397710001599 Actuator Support. SM5Actuator Support. SM5
-
413707001455 Reverse Cable. SM5Reverse Cable. SM5
-
419390401600 Pop Rivet 1/8''. SM5Pop Rivet 1/8''. SM5
-
424710002024 Shim. SM5Shim. SM5
-
426710002033 HolderHolder
-
431710002168 Packard Connector With Plug. Model-North AmericaPackard Connector With Plug. Model-North America
-
442710003750 Calibrated Module. SE5Calibrated Module. SE5
-
448710002412 LH Bi-Halogen Beam Ass'y. Model-North America, Includes 448 to 450LH Bi-Halogen Beam Ass'y. Model-North America, Includes 448 to 450
-
448710002411 RH Bi-Halogen Beam Ass'y. Model-North America, Includes 448 to 450RH Bi-Halogen Beam Ass'y. Model-North America, Includes 448 to 450
-
449219400069 Halogen Bulb. Model-North AmericaHalogen Bulb. Model-North America
-
450219400070 Cap. Model-North AmericaCap. Model-North America
-
452710003504 LH Low Beam Ass'y. Model-Europe, Brazil, Australia, Includes 452 to 453LH Low Beam Ass'y. Model-Europe, Brazil, Australia, Includes 452 to 453
-
452710003505 RH Low Beam Ass'y. Model-Europe, Brazil, Australia, Includes 452 to 453RH Low Beam Ass'y. Model-Europe, Brazil, Australia, Includes 452 to 453
-
453415129249 Halogen Bulb. Model-Europe, Brazil, AustraliaHalogen Bulb. Model-Europe, Brazil, Australia
-
459710002500 LH High Beam Ass'y. Model-Europe, Brazil, Australia, Includes 459 to 460LH High Beam Ass'y. Model-Europe, Brazil, Australia, Includes 459 to 460
-
459710002499 RH High Beam Ass'y. Model-Europe, Brazil, Australia, Includes 459 to 460RH High Beam Ass'y. Model-Europe, Brazil, Australia, Includes 459 to 460
-
460415129249 Halogen Bulb. Model-Europe, Brazil, AustraliaHalogen Bulb. Model-Europe, Brazil, Australia
-
468710002858 Rubber PlugRubber Plug
-
486710002977 TCM Module Support. SE5TCM Module Support. SE5
-
507710003142 Configuration Module. Model-Brazil, AustraliaConfiguration Module. Model-Brazil, Australia
-
531710003348 License Plate Light. Model-North America, Includes 531 to 532License Plate Light. Model-North America, Includes 531 to 532
-
532415129261 Bulb. Model-North AmericaBulb. Model-North America
-
534710003349 License Plate Light. Model-Europe, Brazil, Includes 534 to 535License Plate Light. Model-Europe, Brazil, Includes 534 to 535
-
535415129261 Bulb. Model-Europe, BrazilBulb. Model-Europe, Brazil
-
541710003946 Multifunction Gauge Cluster. Includes 541 to 542Multifunction Gauge Cluster. Includes 541 to 542
-
542415129349 LensLens
-
604710004374 Adapter Harness. Model-Europe, Brazil, AustraliaAdapter Harness. Model-Europe, Brazil, Australia
-
609710003776 Actuator. SM5Actuator. SM5
-
624710004146 RH Switch HousingRH Switch Housing
-
626710004160 LH Switch Housing. SE5LH Switch Housing. SE5
-
628710004161 LH Switch Housing. SM5LH Switch Housing. SM5
