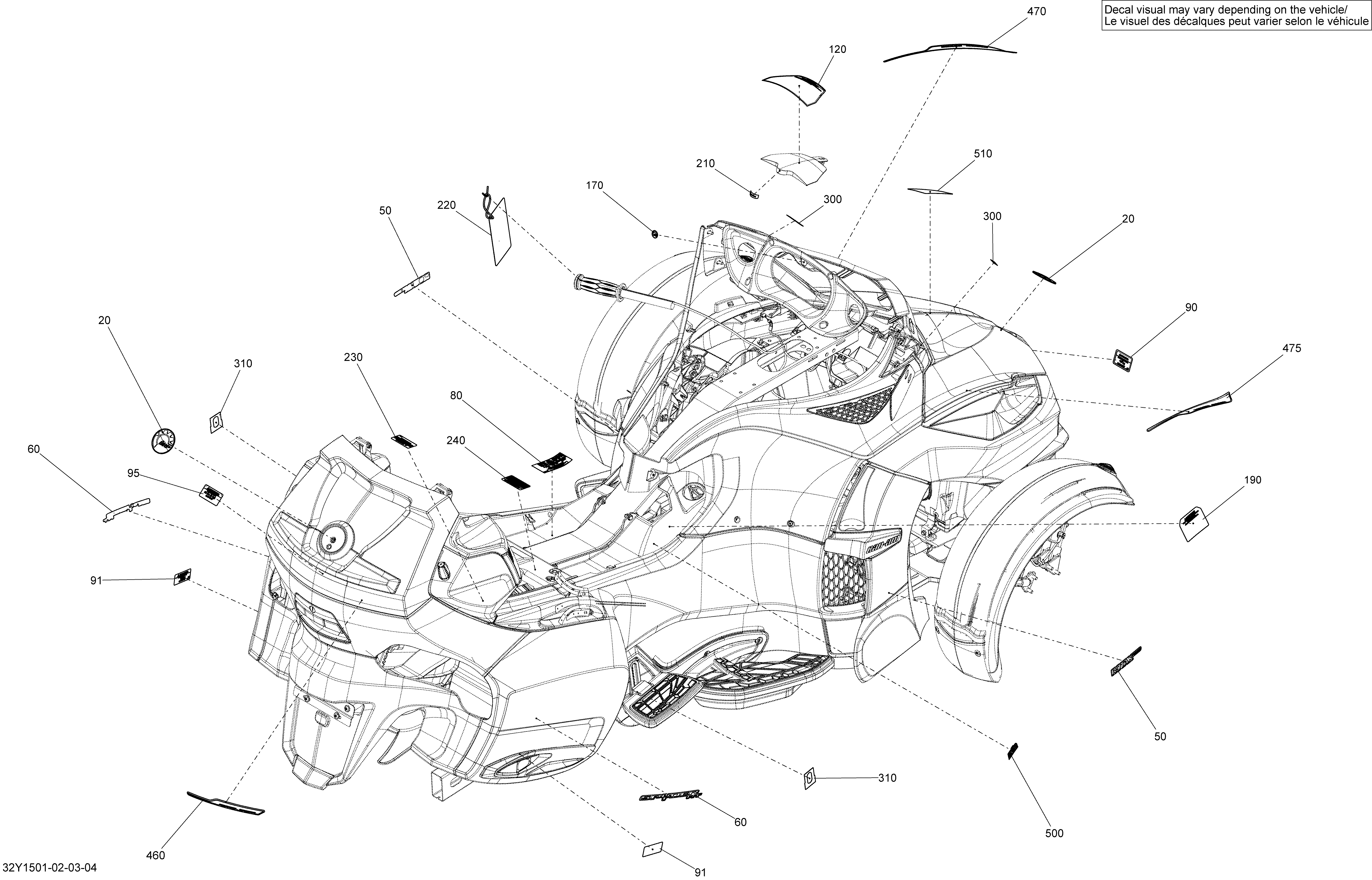

09- Decals _32Y1501 для BRP Spyder RT SM6 - 2015
-
№АртикулНазвание
-
20704904613 BRP Logo, 68 mmBRP Logo, 68 mm
-
50704903830 Decal, Rotax Power. Model-BlackDecal, Rotax Power. Model-Black
-
50704903832 Decal, Rotax Power. Model-WhiteDecal, Rotax Power. Model-White
-
60704904147 Decal, Spyder RT. Model-BlackDecal, Spyder RT. Model-Black
-
60704904148 Decal, Spyder RT. Model-WhiteDecal, Spyder RT. Model-White
-
80704904244 Decal, Tire Information. Model-North AmericaDecal, Tire Information. Model-North America
-
80704904245 Decal, Tire Information. Model-AustraliaDecal, Tire Information. Model-Australia
-
80704904245 Decal, Tire Information. Model-EuropeDecal, Tire Information. Model-Europe
-
80704904245 Decal, Tire Information. Model-JapanDecal, Tire Information. Model-Japan
-
90704903109 Warning Decal, Maximum Load. Model-North AmericaWarning Decal, Maximum Load. Model-North America
-
90704903110 Warning Decal, Maximum Load. Model-AustraliaWarning Decal, Maximum Load. Model-Australia
-
90704903110 Warning Decal, Maximum Load. Model-EuropeWarning Decal, Maximum Load. Model-Europe
-
90704903110 Warning Decal, Maximum Load. Model-JapanWarning Decal, Maximum Load. Model-Japan
-
91704903111 Warning Decal, Maximum Load. Model-JapanWarning Decal, Maximum Load. Model-Japan
-
91704903111 Warning Decal, Maximum Load. Model-EuropeWarning Decal, Maximum Load. Model-Europe
-
91704903111 Warning Decal, Maximum Load. Model-AustraliaWarning Decal, Maximum Load. Model-Australia
-
91704903112 Warning Decal, Maximum Load. Model-North AmericaWarning Decal, Maximum Load. Model-North America
-
95704903113 Warning Decal, Maximum Load. Model-AustraliaWarning Decal, Maximum Load. Model-Australia
-
95704903113 Warning Decal, Maximum Load. Model-JapanWarning Decal, Maximum Load. Model-Japan
-
95704903113 Warning Decal, Maximum Load. Model-EuropeWarning Decal, Maximum Load. Model-Europe
-
95704903114 Warning Decal, Maximum Load. Model-North AmericaWarning Decal, Maximum Load. Model-North America
-
120704904045 Warning Decal, InspectionWarning Decal, Inspection
-
170704904616 BRP Logo, 20mmBRP Logo, 20mm
-
190704904924 Caution Decal, Oil LevelCaution Decal, Oil Level
-
210704903118 Decal, Safety CardDecal, Safety Card
-
230704903119 Warning Decal, Liquide De FreinWarning Decal, Liquide De Frein
-
240704904300 Warning Decal, Pressure. Model-North AmericaWarning Decal, Pressure. Model-North America
-
240704904301 Warning Decal, Pressure. Model-JapanWarning Decal, Pressure. Model-Japan
-
240704904301 Warning Decal, Pressure. Model-EuropeWarning Decal, Pressure. Model-Europe
-
240704904301 Warning Decal, Pressure. Model-AustraliaWarning Decal, Pressure. Model-Australia
-
300704902061 Mirror Mask. Model-WhiteMirror Mask. Model-White
-
310704903261 Label ProtectorLabel Protector
-
500704904812 Decal, XPSDecal, XPS
-
510704904936 Notice Decal, CleaningNotice Decal, Cleaning
