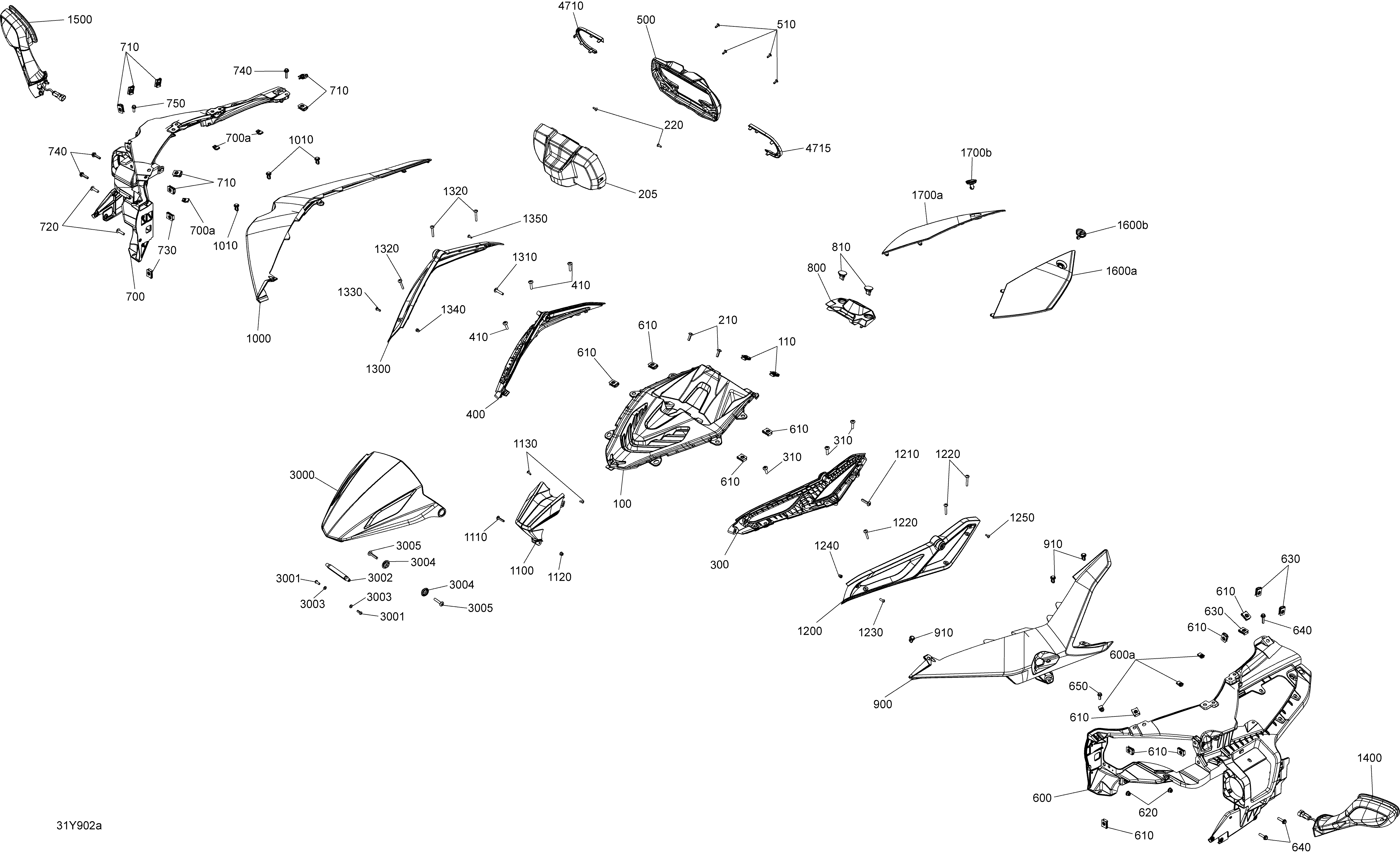

09- Body And Accessories Console для BRP 003 - F3 S SE6 - 2019
-
№АртикулНазвание
-
100708400208 Upper FairingUpper Fairing
-
110250100208 Panel Nut M6Panel Nut M6
-
205709402141 Rear Gauge TrimRear Gauge Trim
-
210250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
220250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
300708400053 LH Slider SupportLH Slider Support
-
310250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
400708400054 RH Slider SupportRH Slider Support
-
410250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
500709402142 Front Gauge TrimFront Gauge Trim
-
510250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
600>600a708400170 LH Consol Supp. Includes 600 TO 600aLH Consol Supp. Includes 600 TO 600a
-
600a250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
610250100208 Panel Nut M6Panel Nut M6
-
620233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
630250100208 Panel Nut M6Panel Nut M6
-
640250000793 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
650210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
700>700a708400171 Rh Consol Supp. Includes 700 TO 700aRh Consol Supp. Includes 700 TO 700a
-
700a250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
710250100208 Panel Nut M6Panel Nut M6
-
720250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
730250100208 Panel Nut M6Panel Nut M6
-
740250000793 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
750210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
800708400205 Switch BezelSwitch Bezel
-
810708400046 CapCap
-
900708400341 LH Consol Fairing, B-160 Deep Black. Model B-393 Monolith Black & B-406 Oxford Blue MetallicLH Consol Fairing, B-160 Deep Black. Model B-393 Monolith Black & B-406 Oxford Blue Metallic
-
910293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1000708400339 RH Consol Fairing, B-160 Deep Black. Model B-393 Monolith Black & B-406 Oxford Blue MetallicRH Consol Fairing, B-160 Deep Black. Model B-393 Monolith Black & B-406 Oxford Blue Metallic
-
1010293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1100708400011 Black Deep Nose FairingBlack Deep Nose Fairing
-
1110250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
1120233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
1130250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
1200708400016 LH Upper Console HeaderLH Upper Console Header
-
1210250000604 Torx Screw M6 X 30. Model B-393 Monolith Black & B-406 Oxford Blue MetallicTorx Screw M6 X 30. Model B-393 Monolith Black & B-406 Oxford Blue Metallic
-
1220250000732 Torx Screw NylonTorx Screw Nylon
-
1230235551454 Screw-Torx Button Head M5 X 14Screw-Torx Button Head M5 X 14
-
1240250100152 Cap Nut M5Cap Nut M5
-
1250250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
1300708400017 RH Upper Console HeaderRH Upper Console Header
-
1310250000604 Torx Screw M6 X 30. Model B-393 Monolith Black & B-406 Oxford Blue MetallicTorx Screw M6 X 30. Model B-393 Monolith Black & B-406 Oxford Blue Metallic
-
1320250000732 Torx Screw NylonTorx Screw Nylon
-
1330235551454 Screw-Torx Button Head M5 X 14Screw-Torx Button Head M5 X 14
-
1340250100152 Cap Nut M5Cap Nut M5
-
1350250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
1400>1400b705008964 LH Lighted Mirror Assembly. AustraliaLH Lighted Mirror Assembly. Australia
-
1400>1400b705013732 LH Mirror Assy, Black. Except AustraliaLH Mirror Assy, Black. Except Australia
-
1400a219800047 LH Mirror LensLH Mirror Lens
-
1400b219800046 Bulb 12V 21W, AmberBulb 12V 21W, Amber
-
1500>1500b705008969 RH Lighted Mirror Assembly. AustraliaRH Lighted Mirror Assembly. Australia
-
1500>1500b705013733 RH Mirror Assy., Black. Except AustraliaRH Mirror Assy., Black. Except Australia
-
1500a219800048 RH Mirror LensRH Mirror Lens
-
1500b219800046 Bulb 12V 21W, AmberBulb 12V 21W, Amber
-
1600a708400238 LH Acces PanelLH Acces Panel
-
1600b708400065 Cover Latch Quater TurnCover Latch Quater Turn
-
1700a708400239 RH Acces PanelRH Acces Panel
-
1700b708400065 Cover Latch Quater TurnCover Latch Quater Turn
-
2400a708400217 Glove Box DoorGlove Box Door
-
2400b293250406 SealSeal
-
3000219400531 Gauge Cover. Model B-429 Liquid TitanGauge Cover. Model B-429 Liquid Titan
-
3001250000652 Socket Screw M5 X .80 X 16. Model B-429 Liquid TitanSocket Screw M5 X .80 X 16. Model B-429 Liquid Titan
-
3003234051670 Flat Washer M5. Model B-429 Liquid TitanFlat Washer M5. Model B-429 Liquid Titan
-
3005250000646 Torx Screw M6 X 35. Model B-429 Liquid TitanTorx Screw M6 X 35. Model B-429 Liquid Titan
-
4710705012349 LH Trim, Deep Black B-160LH Trim, Deep Black B-160
-
4715705012351 RH Trim, Deep Black B-160RH Trim, Deep Black B-160
