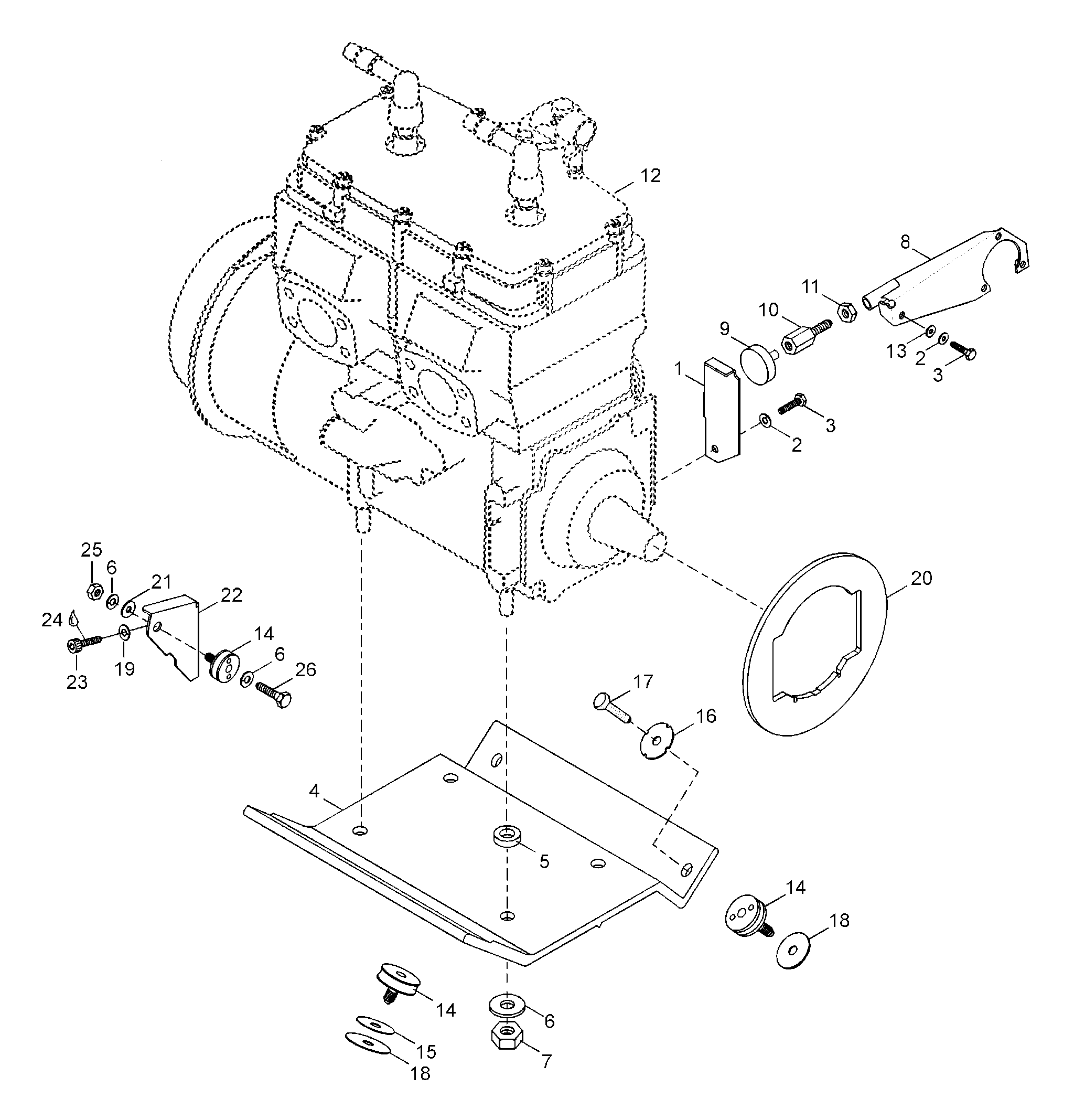

01- Engine Mount Plate для BRP Lynx G-Touring Royal - 1999
-
№АртикулНазвание
-
15341891 Stopper plateStopper plate
-
220052 WasherWasher
-
340029 Screw M6x16Screw M6x16
-
45343085 Engine supportEngine support
-
620068 Lock washerLock washer
-
733004 Nut M10Nut M10
-
85341685 Support plate weld.Support plate weld.
-
9570025100 StopperStopper
-
10517244200 ScrewScrew
-
1133063 Nut M12Nut M12
-
1211000048 Engine 670RAVEEngine 670RAVE
-
1320009 WasherWasher
-
145441913 Rubber insulatorRubber insulator
-
1520080 WasherWasher
-
16512056700 Lock washerLock washer
-
1740228 Screw M10x16Screw M10x16
-
18546221 WasherWasher
-
1920004 WasherWasher
-
205342057 Rubber grommetRubber grommet
-
2120023 WasherWasher
-
225343853 Engine support, frontEngine support, front
-
2340066 Allen screw M8x16Allen screw M8x16
-
24413703000 Loctite 242, 10ccLoctite 242, 10cc
-
2533012 Nut elastic M10Nut elastic M10
-
2640228 Screw M10x16Screw M10x16
