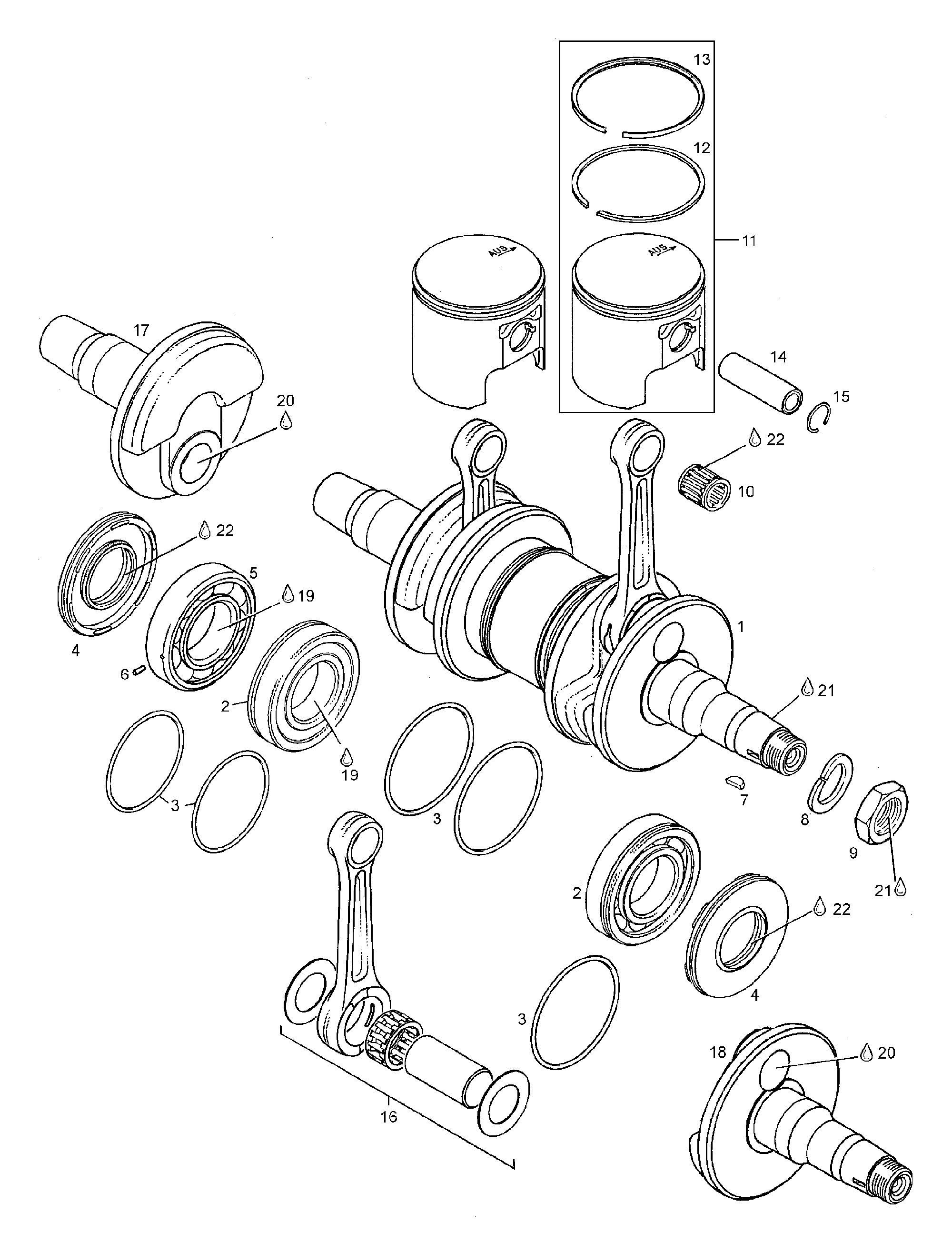

01- Crankshaft Assy для BRP Lynx 6900 FCE - 2000
-
№АртикулНазвание
-
1420888390 Crankshaft assy. Includes items 1 thru 6Crankshaft assy. Includes items 1 thru 6
-
2420832570 Ball bearing 6207Ball bearing 6207
-
3420250165 O-ringO-ring
-
4420831950 Oil sealOil seal
-
5420832574 Ball bearing 6207. Includes items 5 thru 6Ball bearing 6207. Includes items 5 thru 6
-
6420929972 Drive pinDrive pin
-
7420246055 Woodruff keyWoodruff key
-
8420945759 Lock washerLock washer
-
9420842230 Nut M22Nut M22
-
10420832320 Cagel. needle bearinCagel. needle bearin
-
11420888175 Piston assy 71.92 m. Includes items 11 thru 13Piston assy 71.92 m. Includes items 11 thru 13
-
11420888176 Piston assy 72.17 m. Includes items 11 thru 13Piston assy 72.17 m. Includes items 11 thru 13
-
11420888177 Piston assy 72.42 m. Includes items 11 thru 13Piston assy 72.42 m. Includes items 11 thru 13
-
12420915850 Piston ring 72.00 mPiston ring 72.00 m
-
12420915851 Piston ring 72.25 mPiston ring 72.25 m
-
12420915852 Piston ring 72.50 mPiston ring 72.50 m
-
13420815200 Piston ring 72.00 mPiston ring 72.00 m
-
13420815201 Piston ring 72.25 mPiston ring 72.25 m
-
13420815202 Piston ring 72.50 mPiston ring 72.50 m
-
14420916186 Piston pinPiston pin
-
15420945735 CirclipCirclip
-
16420994564 Crankshaft repair kitCrankshaft repair kit
-
17420818244 Crankshaft P.T.O.-siCrankshaft P.T.O.-si
-
18420819020 Crankshaft MAG.-sidCrankshaft MAG.-sid
-
19420297434 Loctite, 50mlLoctite, 50ml
-
20420897341 Loctite, 10ccLoctite, 10cc
-
21420899785 Loctite 221 violetLoctite 221 violet
