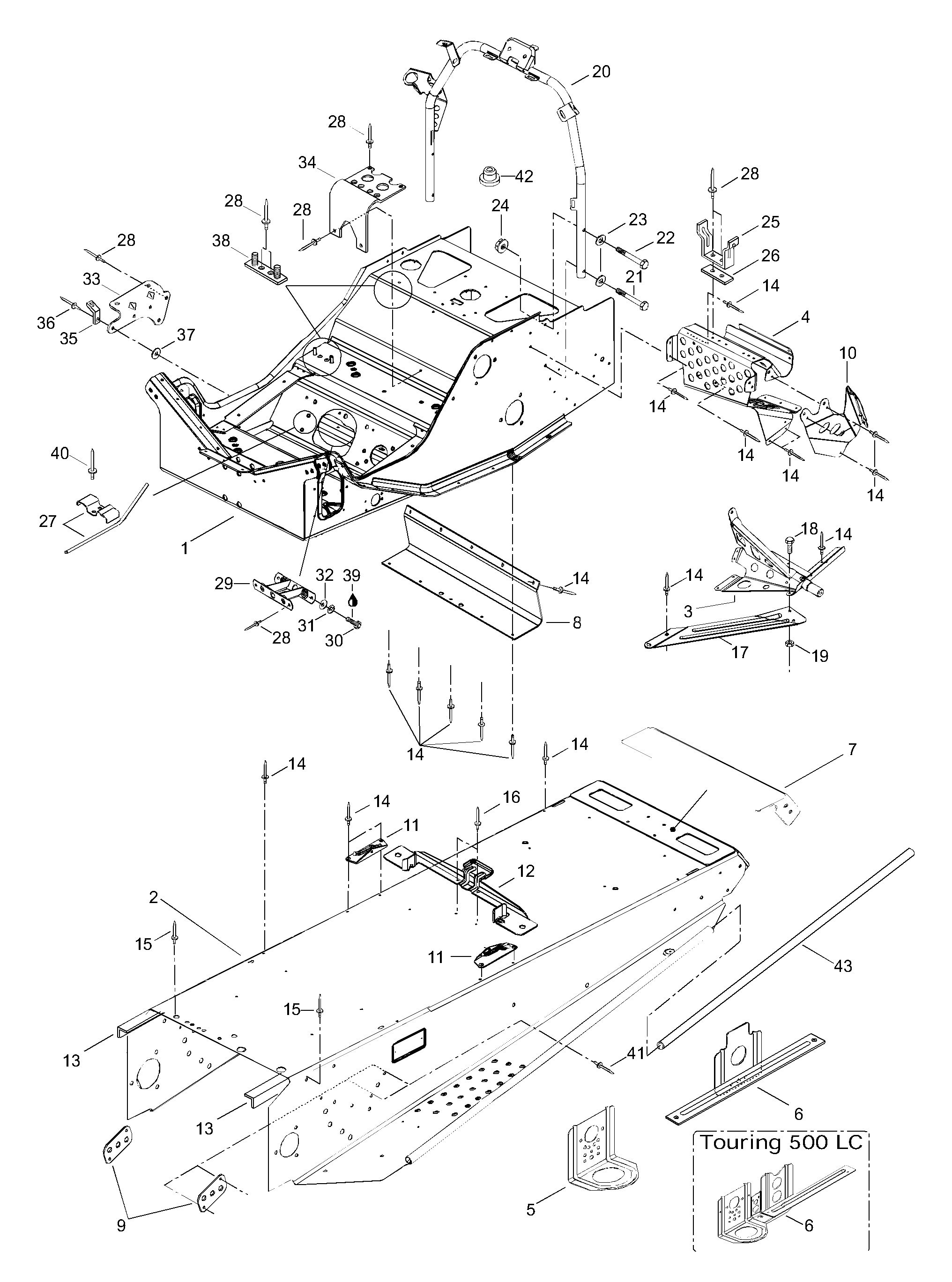

09- Frame для BRP Lynx Touring 500 F - 2000
-
№АртикулНазвание
-
15146169 Frame assy. Includes items 1 thru 2Frame assy. Includes items 1 thru 2
-
3518320506 R.H. supportR.H. support
-
3518320507 L.H. supportL.H. support
-
4518318933 R.H. front footrestR.H. front footrest
-
4518318934 L.H. front footrestL.H. front footrest
-
5518321495 Front bracketFront bracket
-
65346077 R.H. Rear bracketR.H. Rear bracket
-
65346078 L.H. Rear bracketL.H. Rear bracket
-
7518321609 Rear capRear cap
-
8518321867 DeflectorDeflector
-
95445942 Reinf., front armReinf., front arm
-
10518308715 Upper plate R.H.Upper plate R.H.
-
10518308714 Upper plate L.H.Upper plate L.H.
-
11517266900 Tank bracket R.H.Tank bracket R.H.
-
11517267000 Tank bracket L.H.Tank bracket L.H.
-
12518317506 Seat bracketSeat bracket
-
13518316769 R.H. tunnel reinforcemeR.H. tunnel reinforceme
-
13518316768 R.H. tunnel reinforcemeR.H. tunnel reinforceme
-
14390402200 RivetRivet
-
15390402300 RivetRivet
-
16390402400 RivetRivet
-
17518321958 R.H. reinf. plateR.H. reinf. plate
-
17518321959 L.H. reinf. plateL.H. reinf. plate
-
18207151644 Screw M5x16Screw M5x16
-
19233251414 Nut M5Nut M5
-
20518321428 Handle steering supp.Handle steering supp.
-
2140002 Screw M6x40Screw M6x40
-
2240003 Screw M6x35Screw M6x35
-
2320003 WasherWasher
-
2433200 Nut M6Nut M6
-
25518202100 Pulley Guard bracketPulley Guard bracket
-
26518207500 ReinforcementReinforcement
-
27518321854 Rope guideRope guide
-
28390402200 RivetRivet
-
29518304741 Reinforcement plateReinforcement plate
-
3040036 Screw M8x20Screw M8x20
-
3120014 Spring washerSpring washer
-
32224081201 WasherWasher
-
33518206300 Muffler supportMuffler support
-
34518310400 Air intake supportAir intake support
-
38518315300 Support plateSupport plate
-
39413705400 Loctite 270, 250mlLoctite 270, 250ml
-
40390909200 RivetRivet
-
4136489 RivetRivet
-
42414859400 PluggPlugg
-
43518304746 Reinforcement-footrestReinforcement-footrest
