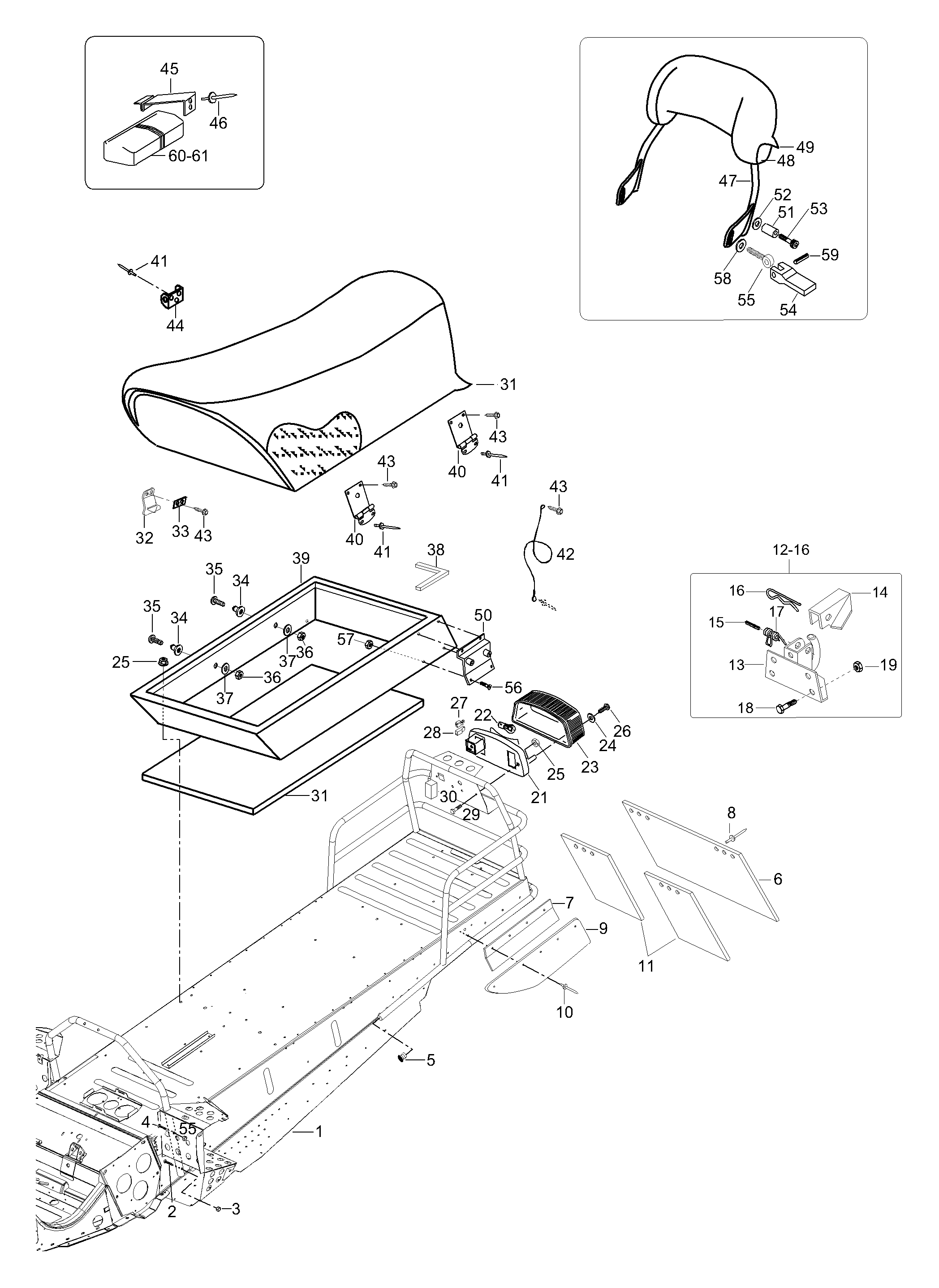

09- Frame для BRP Lynx 6900 FCE - 2002
![](/wa-data/public/shop/sheme/bombardier/lynx/edbce79c-6375-4fe9-8f72-383d1b0a481c.png)
-
№АртикулНазвание
-
15146038 ChassisChassis
-
240032 Screw M6x30Screw M6x30
-
333051 Nut M6Nut M6
-
440002 Screw M6x40Screw M6x40
-
528136 PlugPlug
-
65340055 Snow guardSnow guard
-
75340532 SupportSupport
-
836037 RivetRivet
-
95340136 Snow guard, sideSnow guard, side
-
1036097 RivetRivet
-
115341770 SupportSupport
-
125344156 Hitch Assy. Includes items 12 thru 16Hitch Assy. Includes items 12 thru 16
-
135344208 Bracket weldedBracket welded
-
145440767 LatchLatch
-
1541012 CotterCotter
-
1641029 PinPin
-
17545693 SpringSpring
-
1840336 Screw M8x20Screw M8x20
-
1933011 Nut elastic M8Nut elastic M8
-
205341214 Rear lamp assy. Includes items 20 thru 26Rear lamp assy. Includes items 20 thru 26
-
21414979400 Tail lamp housingTail lamp housing
-
22410504000 Bulb tail lampBulb tail lamp
-
23414513700 LensLens
-
24414516400 WasherWasher
-
2533200 Nut M6Nut M6
-
2640613 ScrewScrew
-
2742178 Female terminalFemale terminal
-
2842179 Connector housingConnector housing
-
2940032 Screw M6x30Screw M6x30
-
305345713 CoverCover
-
315245238 SeatSeat
-
325346383 LatchLatch
-
335446848 Support plateSupport plate
-
34542307 Counter rollCounter roll
-
3540168 Screw M4x25Screw M4x25
-
3633008 Nut elastic M4Nut elastic M4
-
3720037 WasherWasher
-
38390002 SealSeal
-
395246336 Seat boxSeat box
-
405446374 Hinge for set ass’yHinge for set ass’y
-
4136083 RivetRivet
-
42546777 Retainer cableRetainer cable
-
4340888 Screw 4,2x19Screw 4,2x19
-
44548824 Belt LugBelt Lug
-
45539455 Spring plateSpring plate
-
4636005 RivetRivet
-
475241820 BackrestBackrest
-
48539399 FoamFoam
-
495340917 CoverCover
-
505341818 L.H. Fixing plateL.H. Fixing plate
-
505341889 R.H. Fixing plateR.H. Fixing plate
-
515441814 SleeveSleeve
-
5220004 WasherWasher
-
5340336 Allen screw M8x20Allen screw M8x20
-
545243419 Locking LeverLocking Lever
-
55517250100 Eye boltEye bolt
-
5640063 Screw M5x12Screw M5x12
-
5733062 Elastic flanged nut M5Elastic flanged nut M5
-
5820023 WasherWasher
-
59414821400 PinPin
-
605445401 Tool box assy. Includes items 60 thru 61Tool box assy. Includes items 60 thru 61
-
61572036310 Tool boxTool box
