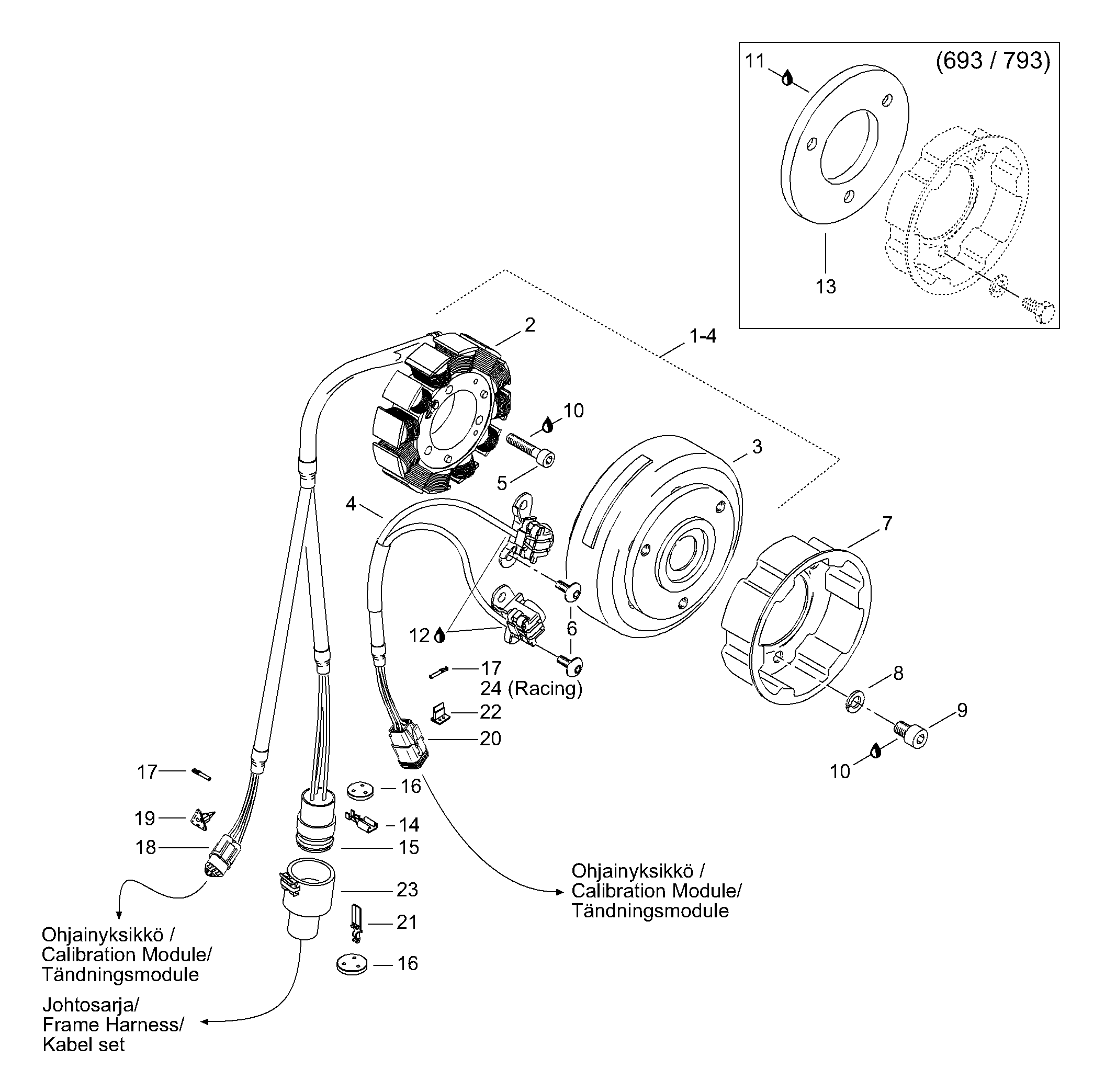

03- Fly Wheel для BRP Lynx Rave 800 Special - 2002
-
№АртикулНазвание
-
1420888450 Magneto 12V/290W. Includes items 1 thru 4Magneto 12V/290W. Includes items 1 thru 4
-
2420888615 Stator assyStator assy
-
3420888626 Magneto flywheelMagneto flywheel
-
4420966802 Pick up assyPick up assy
-
5420840880 Allen screw M6x30Allen screw M6x30
-
6420640321 Taptite screw M5x16Taptite screw M5x16
-
7420852532 Starter cupStarter cup
-
820014 Lock washerLock washer
-
9420940591 Screw M8x20Screw M8x20
-
10420899785 Loctite 221/viol.Loctite 221/viol.
-
11420897651 Loctite 243, blue, 10ccLoctite 243, blue, 10cc
-
12420297710 PU-glue, sikaflex 255PU-glue, sikaflex 255
-
13420866756 Fly wheelFly wheel
-
14409011900 Female terminalFemale terminal
-
15409208200 Terminal housingTerminal housing
-
16409208500 SealSeal
-
17278000632 Female terminalFemale terminal
-
18409207400 Terminal housingTerminal housing
-
19409207200 LockLock
-
20278000739 Terminal housingTerminal housing
-
21409011100 Male terminalMale terminal
-
22278000738 LockLock
-
23409207900 Terminal housingTerminal housing
