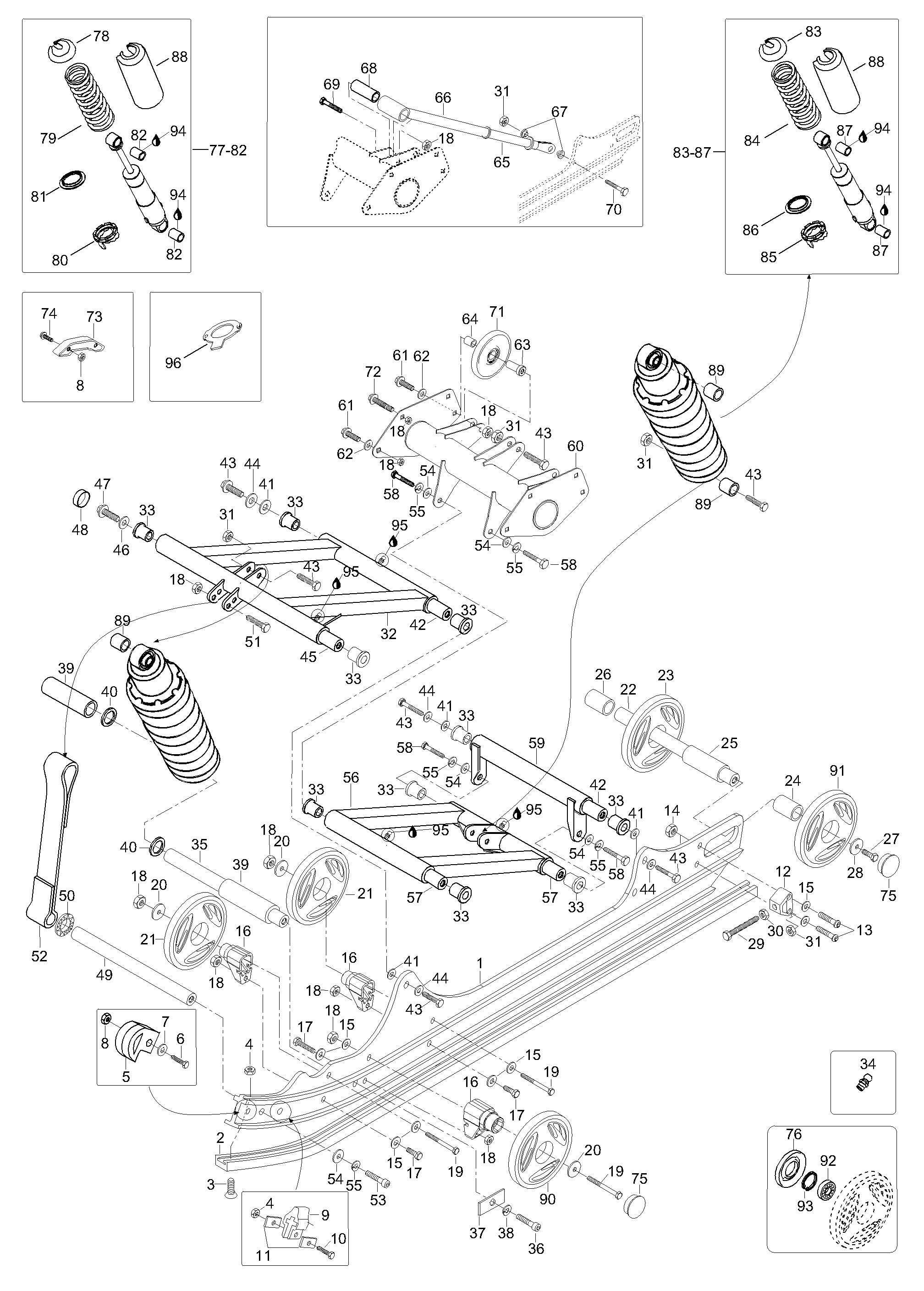

08- Rear Suspension для BRP Lynx Super Touring 700 - 2002
-
№АртикулНазвание
-
15246388 RunnerRunner
-
25347724 Runner shoeRunner shoe
-
340059 Allen screw M6x60Allen screw M6x60
-
433010 Nut elastic M6Nut elastic M6
-
5534578 Runner protectorRunner protector
-
640031 Screw M6x25Screw M6x25
-
720003 WasherWasher
-
833200 Nut M6Nut M6
-
95442328 Rubber StopperRubber Stopper
-
1040032 Screw M6x30Screw M6x30
-
11548470 WasherWasher
-
125341633 TensionerTensioner
-
1340008 Screw M8x45Screw M8x45
-
1433201 Elastic flanged nut M8Elastic flanged nut M8
-
1520104 Washer, hardenedWasher, hardened
-
165447079 SupportSupport
-
1740037 Screw M8x25Screw M8x25
-
1833011 Nut elastic M8Nut elastic M8
-
1940089 Screw M8x75Screw M8x75
-
20503183100 Washer, hardenedWasher, hardened
-
21503188997 Wheel blackWheel black
-
225341511 Rear shaftRear shaft
-
23503189478 Wheel blackWheel black
-
245441512 SpacerSpacer
-
255441513 SleeveSleeve
-
265444099 SpacerSpacer
-
27250000019 Screw M10x35Screw M10x35
-
28503183300 Washer, hardenedWasher, hardened
-
2940239 Screw M10x100Screw M10x100
-
3033004 Nut M10Nut M10
-
3133012 Nut elastic M10Nut elastic M10
-
325145588 Welded front armWelded front arm
-
3331083 CushionCushion
-
3434011 Crease nippleCrease nipple
-
355347633 Shaft, shockShaft, shock
-
3640536 Allen screw M10x45Allen screw M10x45
-
375447940 Support plateSupport plate
-
3820068 Lock washerLock washer
-
395346649 SpacerSpacer
-
4031013 ShimShim
-
4120116 WasherWasher
-
425346900 ShaftShaft
-
4340016 Screw M10x45Screw M10x45
-
44512056700 Lock washerLock washer
-
455346135 ShaftShaft
-
4620090 Lock washerLock washer
-
4740243 Screw M12x60Screw M12x60
-
485448025 CapCap
-
495343471 ShaftShaft
-
504181158 Fixing WasherFixing Washer
-
5140008 Screw M8x45Screw M8x45
-
525447919 Belt, frontBelt, front
-
5340134 Allen screw M10x45Allen screw M10x45
-
5420105 Washer, hardenedWasher, hardened
-
5520047 Spring washerSpring washer
-
565245536 Rear Arm WeldRear Arm Weld
-
575346865 ShaftShaft
-
5840014 Screw M10x40Screw M10x40
-
595345535 Rear armRear arm
-
605247115 Upper armUpper arm
-
6140058 Locking screw M8x20Locking screw M8x20
-
6220005 WasherWasher
-
635447945 SleeveSleeve
-
645447946 SleeveSleeve
-
655347852 ShaftShaft
-
665347851 PipePipe
-
675447853 BearingBearing
-
685447848 Bearing sleeveBearing sleeve
-
6940011 Screw M8x60Screw M8x60
-
7040042 Screw M10x35Screw M10x35
-
715348355 Idler Wheel black (101)Idler Wheel black (101)
-
7240150 Locking screw M8x90Locking screw M8x90
-
735343191 Slide partSlide part
-
7440064 Screw M6x40Screw M6x40
-
75570063600 CapCap
-
76572089000 Labyrinth sealLabyrinth seal
-
7723142 Shock (36mm). Includes items 77 thru 82Shock (36mm). Includes items 77 thru 82
-
78503140600 Spring stopperSpring stopper
-
80503183700 CamCam
-
8231094 Slide bearingSlide bearing
-
8323143 Shock (36mm). Includes items 83 thru 87Shock (36mm). Includes items 83 thru 87
-
83503140600 Spring stopperSpring stopper
-
85503183700 CamCam
-
8731094 Slide bearingSlide bearing
-
885346754 ProtectorProtector
-
895446652 SleeveSleeve
-
905347564 Wheel 135/moondustWheel 135/moondust
-
915347565 Wheel 165/moondustWheel 165/moondust
-
92405404500 Ball bearingBall bearing
-
93371901700 CirclipCirclip
-
95413711500 Synthetic greaseSynthetic grease
-
965347884 Adjusting wrenchAdjusting wrench
