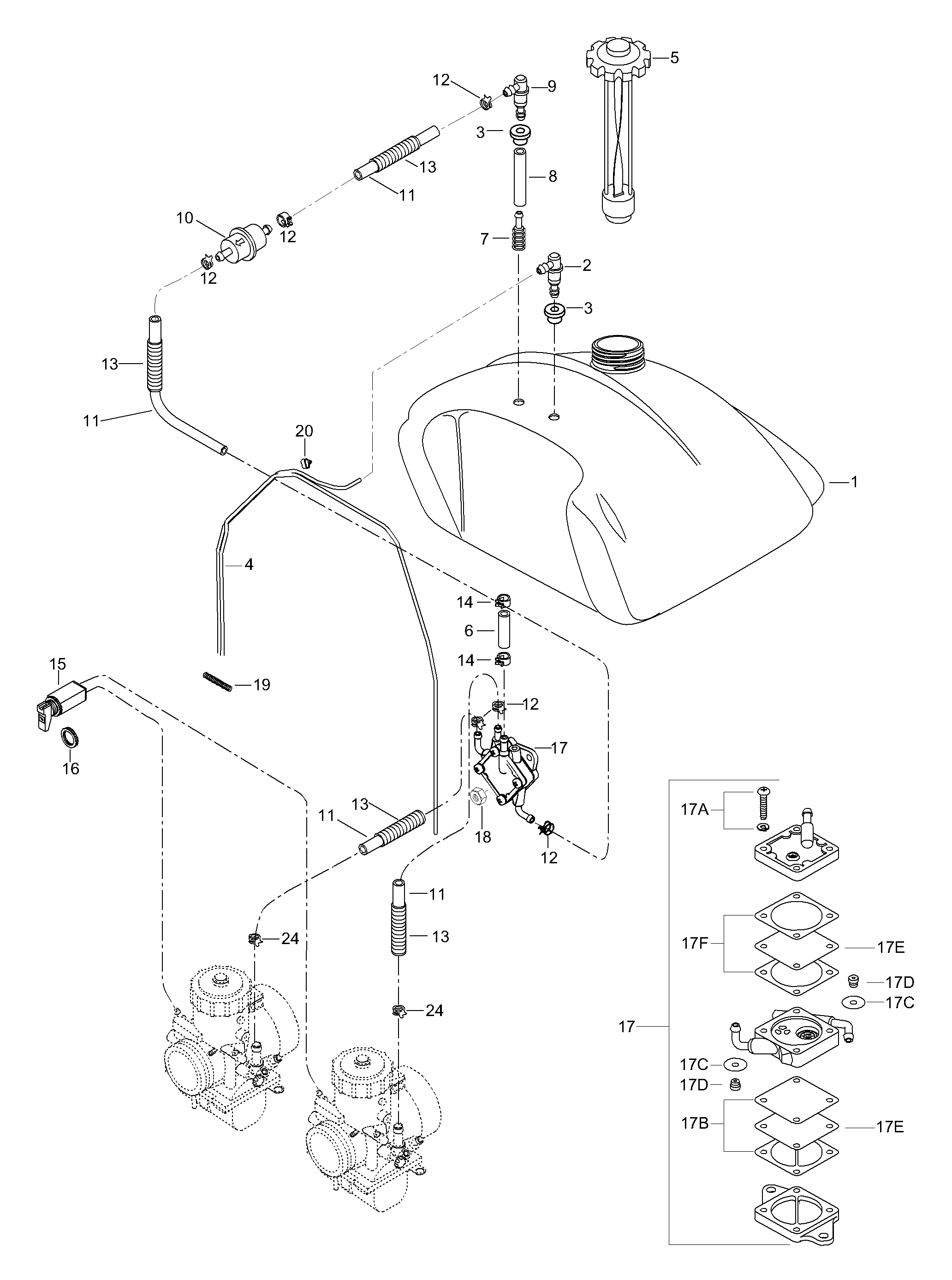

02- Fuel Tank для BRP Lynx 6900 FCE - 2003
-
№АртикулНазвание
-
1519393 Fuel tankFuel tank
-
2533535 Connector-maleConnector-male
-
328037 GrommetGrommet
-
439035 Airpipe 5/3Airpipe 5/3
-
5572161200 CapCap
-
639001 Fuel hose 11/6Fuel hose 11/6
-
7414872100 Fuel FilterFuel Filter
-
839048 Fuel hose 12.5/7.5Fuel hose 12.5/7.5
-
95341709 Connector-maleConnector-male
-
10414363600 Fuel filterFuel filter
-
1139004 Fuel hose 8/5Fuel hose 8/5
-
1227086 ClampClamp
-
1328012 Spiral tubeSpiral tube
-
14414420700 ClampClamp
-
15535482 ChokeChoke
-
16414977200 Plastic nutPlastic nut
-
17b404902300 GasketGasket
-
17c404902100 GrommetGrommet
-
17d275500042 ValveValve
-
17E404902200 DiaphragmDiaphragm
-
17F404902400 GasketGasket
-
1719058 Fuel pumpFuel pump
-
1833010 Nut elastic M6Nut elastic M6
-
1925003 SpringSpring
-
20513032923 Clamp tubeClamp tube
