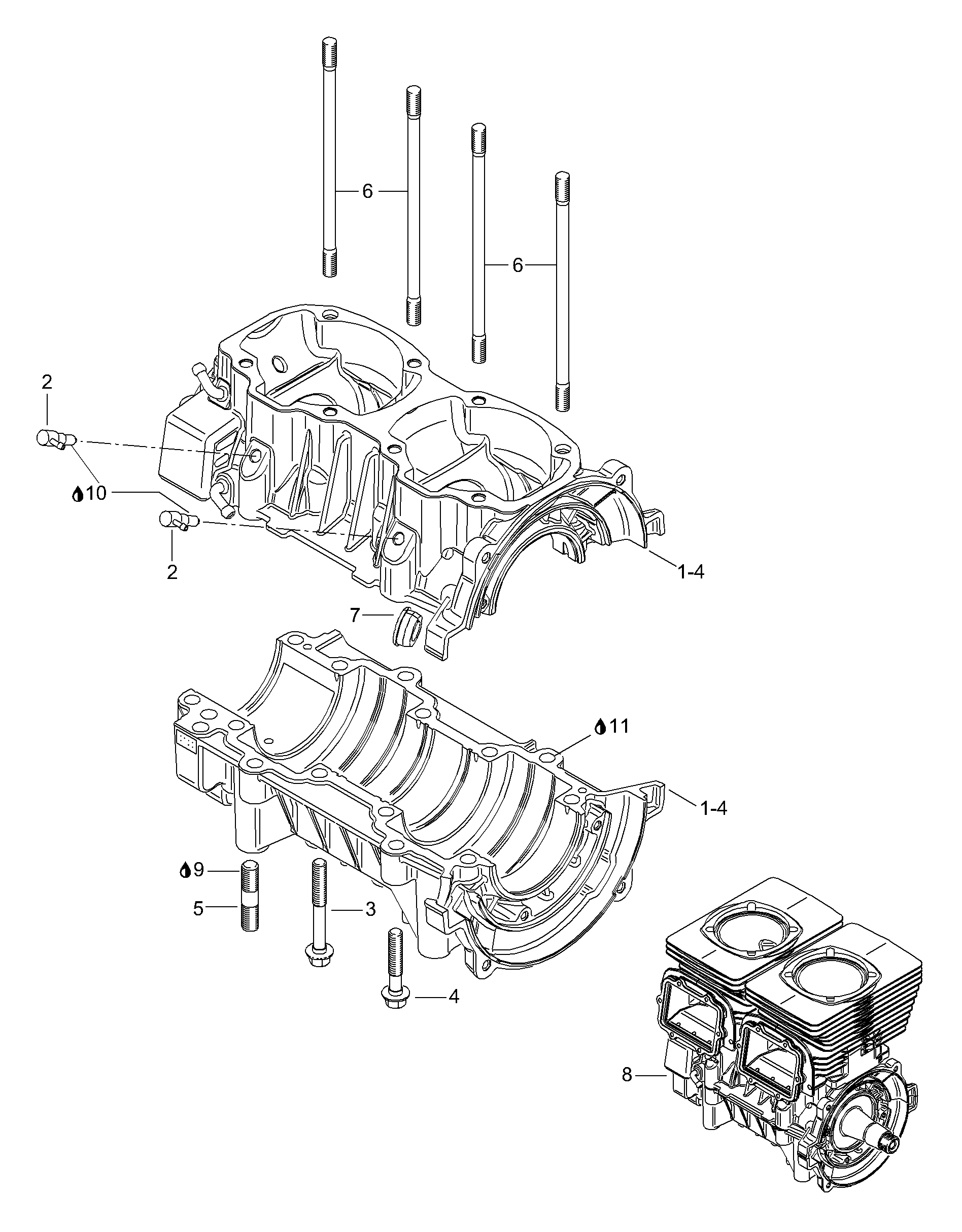

05- Crankcase для BRP Lynx Enduro 550 F - 2003
-
№АртикулНазвание
-
1420888496 Crankcase. Includes items 1 thru 4Crankcase. Includes items 1 thru 4
-
2420956510 Check valve assyCheck valve assy
-
3420640951 Screw M8x68,5Screw M8x68,5
-
4420640431 Screw M8x45Screw M8x45
-
5420941644 StudStud
-
6420840556 StudStud
-
7420860962 Cable grommetCable grommet
-
8300055201 Short block engineShort block engine
-
9420899785 Loct 221/viol/6cm3Loct 221/viol/6cm3
-
10413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
11420297906 Sealing compound, 30Sealing compound, 30
