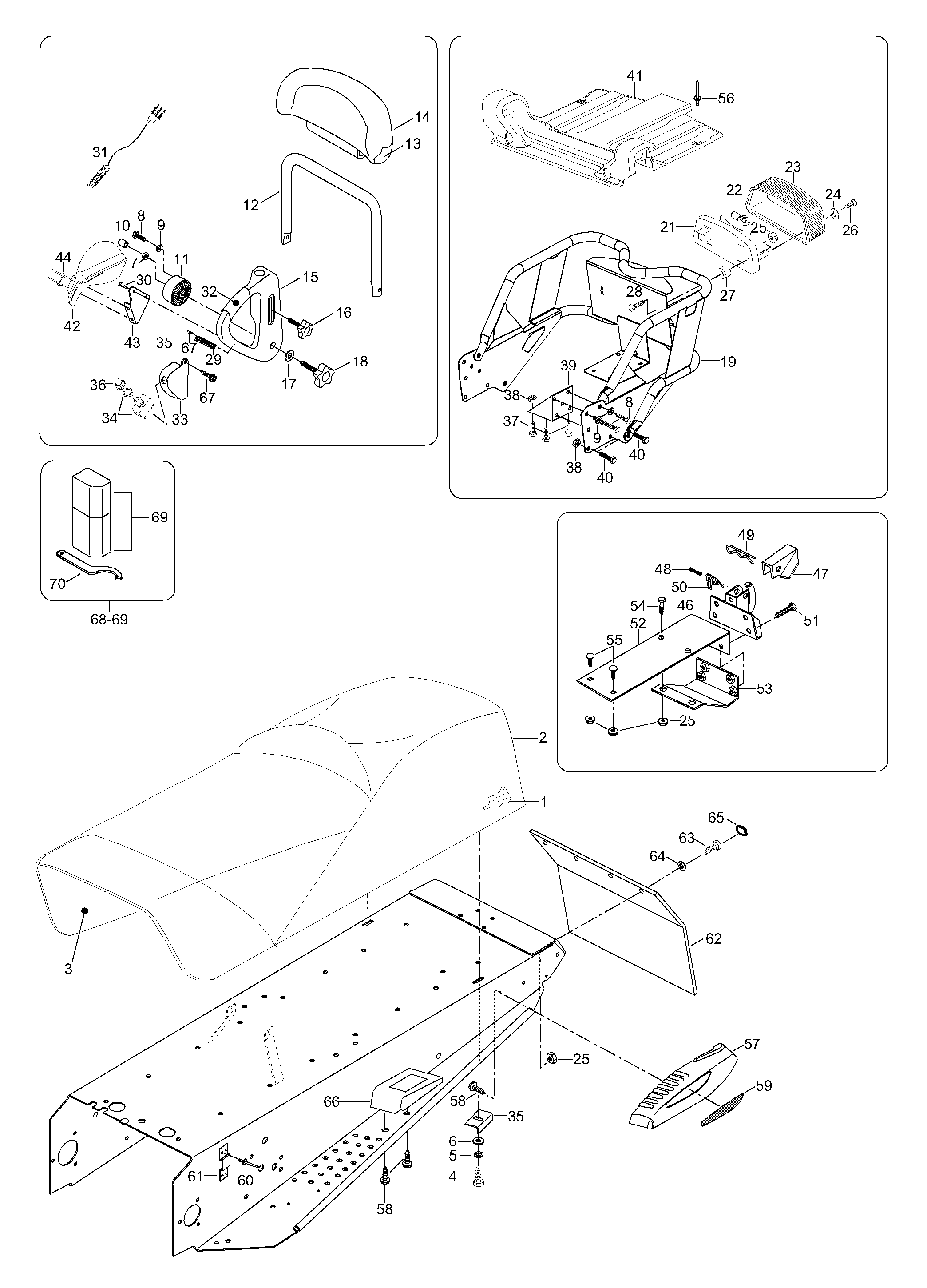

09- Body для BRP Lynx Explorer 550 F - 2003
-
№АртикулНазвание
-
15146604 Seat foamSeat foam
-
2605148618 Seat coverSeat cover
-
35146603 Seat baseSeat base
-
440015 Screw M8x30Screw M8x30
-
520014 Lock washerLock washer
-
620010 WasherWasher
-
733016 Nut elastic M12Nut elastic M12
-
840037 Screw M8x25Screw M8x25
-
920072 Lock washerLock washer
-
10510003628 HoseHose
-
11510003707 PivotPivot
-
12605248997 BackrestBackrest
-
13605349172 FoamFoam
-
14605349173 CoverCover
-
15510003542 R.H. armR.H. arm
-
15510003607 L.H. armL.H. arm
-
16510003533 Male handle M8x35Male handle M8x35
-
1720027 WasherWasher
-
18510003534 Male handle M12x45Male handle M12x45
-
19605148943 Rack assyRack assy
-
205341214 Taillamp assy. 20 Includes items 26Taillamp assy. 20 Includes items 26
-
21414979400 Taillamp housingTaillamp housing
-
22410504000 BulbBulb
-
23414513700 LensLens
-
24414516400 WasherWasher
-
2533200 Nut M6Nut M6
-
26414516300 ScrewScrew
-
27549103 SleeveSleeve
-
2840065 Locking screw M6x45Locking screw M6x45
-
29605349166 HousingHousing
-
3040847 ScrewScrew
-
31605449536 L.H. HeaterL.H. Heater
-
31605449165 R.H. HeaterR.H. Heater
-
32605449165 R.H. GripR.H. Grip
-
32605449536 L.H. GripL.H. Grip
-
33605348889 BracketBracket
-
34410110700 SwitchSwitch
-
355447994 Support plateSupport plate
-
36515175281 CoverCover
-
3740058 Locking screw M8x20Locking screw M8x20
-
3833201 Elastic flanged nut M8Elastic flanged nut M8
-
39605248942 R.H. Support plateR.H. Support plate
-
39605248941 L.H. Support plateL.H. Support plate
-
4040336 Screw M8x20Screw M8x20
-
41605349170 Plastic coverPlastic cover
-
42572089400 R.H. Passeng. hand GriR.H. Passeng. hand Gri
-
42572089500 L.H. Passeng. hand GriL.H. Passeng. hand Gri
-
43605348911 R.H. Bracket hand gripR.H. Bracket hand grip
-
43605348912 L.H. Bracket hand gripL.H. Bracket hand grip
-
4436037 RivetRivet
-
455344156 Hitch Assy. 45 Includes items 50Hitch Assy. 45 Includes items 50
-
465344208 Hitch WeldHitch Weld
-
475440767 LockLock
-
4841012 Spring PinSpring Pin
-
4941029 Needle PinNeedle Pin
-
50545693 SpringSpring
-
5140336 Screw M8x20Screw M8x20
-
525446855 BracketBracket
-
535346856 ReinforcementReinforcement
-
5440030 Screw M6x20Screw M6x20
-
5540866 Locking screw M6x20Locking screw M6x20
-
5636037 RivetRivet
-
57861777700 R.H. mouldingR.H. moulding
-
57861777800 L.H. mouldingL.H. moulding
-
5840870 Hex. tapping screwHex. tapping screw
-
59516000241 R.H. rear reflectorR.H. rear reflector
-
59516000242 L.H. rear reflectorL.H. rear reflector
-
6036489 RivetRivet
-
615447908 BracketBracket
-
625246859 Snow guardSnow guard
-
6340078 Screw M6x22Screw M6x22
-
6420009 WasherWasher
-
65415073300 CapCap
-
66572088700 GT SE Foot Rest RHGT SE Foot Rest RH
-
66572088800 GT SE Foot Rest LHGT SE Foot Rest LH
-
6740847 Screw B4.2x13Screw B4.2x13
-
685445403 Tool box with tools. 68 Includes items 69Tool box with tools. 68 Includes items 69
-
69572036310 Tool boxTool box
-
70529032900 Wrench adjustWrench adjust
