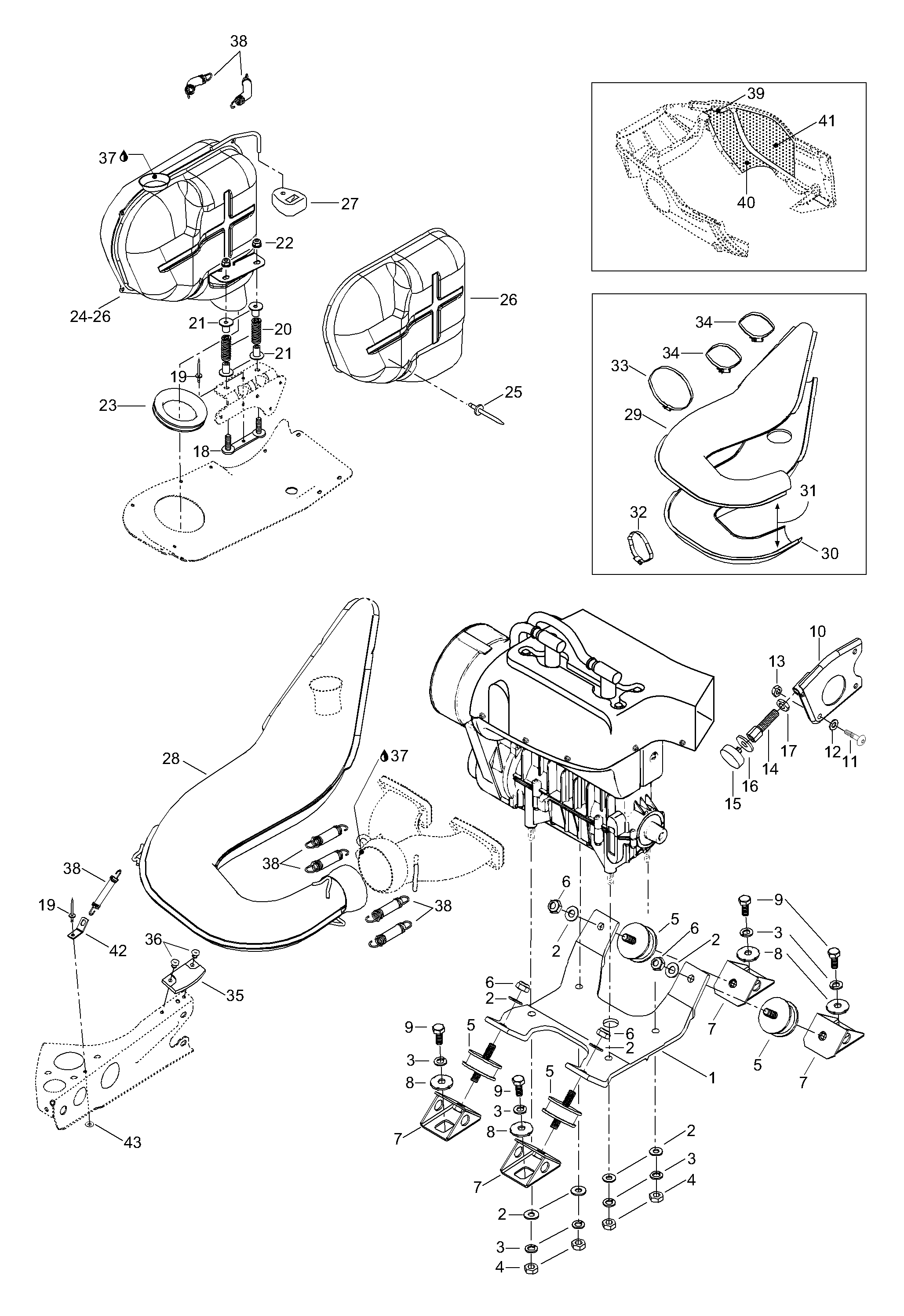

01- Engine Mount Plate/Muffler для BRP Lynx Ranger FCE - 2003
-
№АртикулНазвание
-
1512059397 Engine supportEngine support
-
220105 WasherWasher
-
320113 Spring washerSpring washer
-
433004 Nut M10Nut M10
-
5570128700 Rubber mountRubber mount
-
633082 Nut elastic M10Nut elastic M10
-
7512050900 Engine supportEngine support
-
8512056700 Lock washerLock washer
-
940040 Screw M10x25Screw M10x25
-
10605349891 Support plateSupport plate
-
1140344 Allen screw M8x25Allen screw M8x25
-
1220004 WasherWasher
-
1333011 Nut elastic M8Nut elastic M8
-
14512058800 Stopper screwStopper screw
-
15512059056 StopperStopper
-
16512059057 WasherWasher
-
1733218 Jam nut M12Jam nut M12
-
18514053263 BracketBracket
-
1936489 RivetRivet
-
20414913700 SpringSpring
-
21514053343 SleeveSleeve
-
2233029 Elastic flanged nut M8Elastic flanged nut M8
-
23570039000 Rubber grommetRubber grommet
-
24514053648 Muffler assy. Includes items 24 thru 26Muffler assy. Includes items 24 thru 26
-
25390910000 RivetRivet
-
26514053389 L.H. heat shieldL.H. heat shield
-
27514052704 Rubber pumberRubber pumber
-
28514053645 Tune pipeTune pipe
-
29605148826 Upper enveloppeUpper enveloppe
-
30605148827 Lower enveloppeLower enveloppe
-
31605249357 Isolering, upperIsolering, upper
-
31605249356 Isolering, lowerIsolering, lower
-
3227046 ClampClamp
-
3327050 ClampClamp
-
3427049 ClampClamp
-
35570044100 Rubber padRubber pad
-
3636037 RivetRivet
-
37293800090 Sealing, Loctite 17914Sealing, Loctite 17914
-
38415107100 SpringSpring
-
39514053363 IsoleringIsolering
-
40514052718 IsoleringIsolering
-
41514053390 IsoleringIsolering
-
425447086 Spring bracketSpring bracket
-
4320008 WasherWasher
