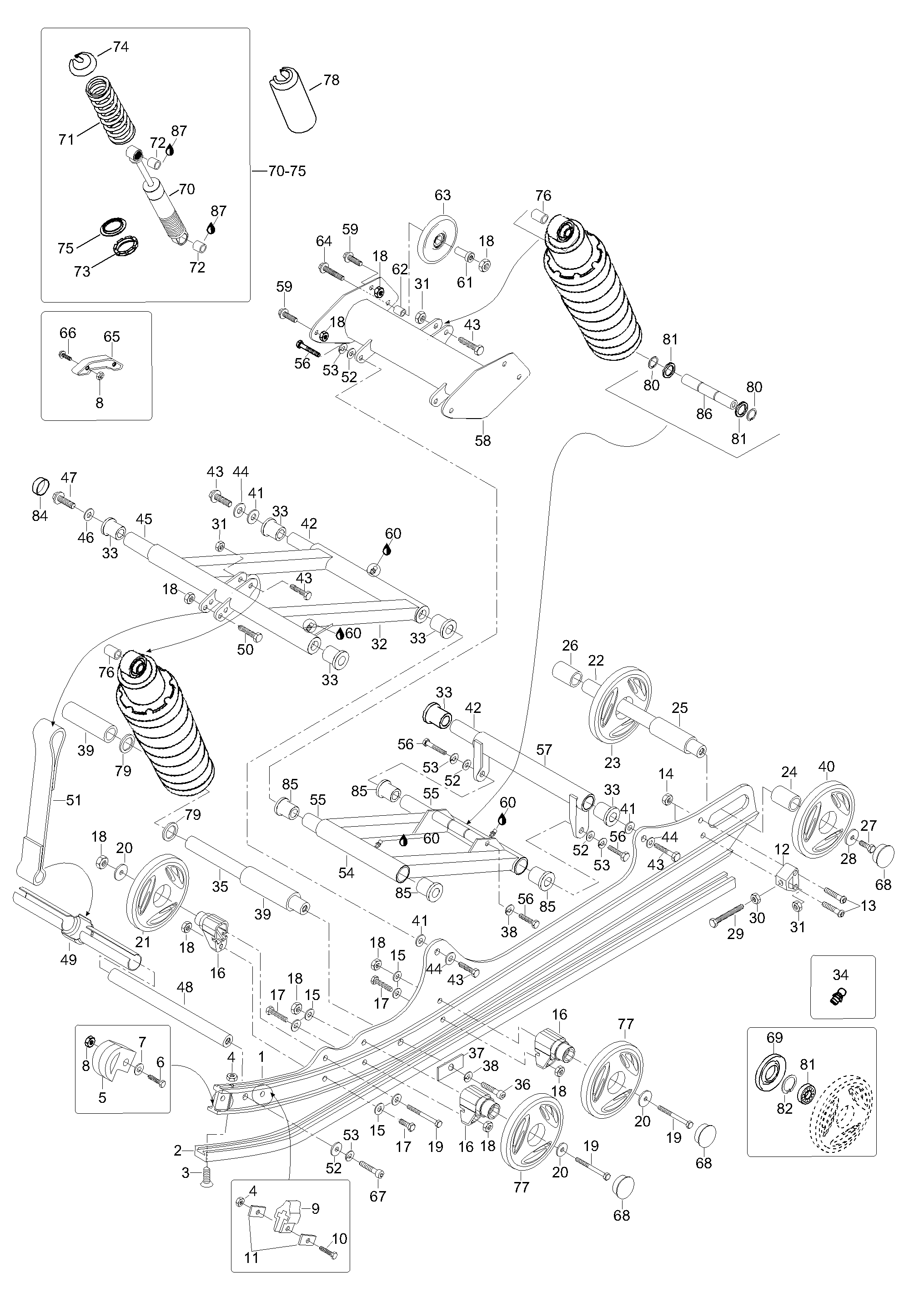

08- Rear Suspension для BRP Lynx Enduro 550 F RC - 2004
-
№АртикулНазвание
-
15247659 RunnerRunner
-
25346796 Runner shoeRunner shoe
-
340059 Allen screw M6 x 60Allen screw M6 x 60
-
433010 Nut elastic M6Nut elastic M6
-
5534578 Runner protectorRunner protector
-
640031 Screw M6 x 25Screw M6 x 25
-
720003 WasherWasher
-
833200 Nut M6Nut M6
-
95442328 Rubber StopperRubber Stopper
-
1040032 Screw M6 x 30Screw M6 x 30
-
11548470 WasherWasher
-
125341633 TensionerTensioner
-
1340392 Allen screw M8 x 45Allen screw M8 x 45
-
1433201 Elastic flanged nut M8Elastic flanged nut M8
-
1520104 Washer, hardenedWasher, hardened
-
165447079 SupportSupport
-
1740037 Screw M8 x 25Screw M8 x 25
-
1833011 Nut elastic M8Nut elastic M8
-
1940089 Screw M8 x 75Screw M8 x 75
-
20503183100 Washer, hardenedWasher, hardened
-
21503188997 Wheel blackWheel black
-
225341511 Rear shaftRear shaft
-
23503189478 Wheel blackWheel black
-
245441512 SpacerSpacer
-
255441513 SleeveSleeve
-
265444099 SpacerSpacer
-
2740050 Screw M10 x 35Screw M10 x 35
-
28503183300 Washer, hardenedWasher, hardened
-
2940239 Screw M10 x 100Screw M10 x 100
-
3033004 Nut M10Nut M10
-
3133012 Nut elastic M10Nut elastic M10
-
325145588 Welded front armWelded front arm
-
3331083 CushionCushion
-
3434011 Crease nippleCrease nipple
-
355347633 Shaft, shockShaft, shock
-
3640536 Allen screw M10 x 45Allen screw M10 x 45
-
375446786 Support plateSupport plate
-
3820068 Lock washerLock washer
-
395346649 SpacerSpacer
-
4120116 WasherWasher
-
425346900 ShaftShaft
-
4340016 Screw M10 x 45Screw M10 x 45
-
44512056700 Lock washerLock washer
-
455346135 ShaftShaft
-
4620090 Lock washerLock washer
-
4740243 Screw M12 x 60Screw M12 x 60
-
485343471 ShaftShaft
-
49605349381 Retainer, stopper strapRetainer, stopper strap
-
5040008 Screw M8 x 45Screw M8 x 45
-
51605449385 Belt, frontBelt, front
-
5220105 Washer, hardenedWasher, hardened
-
5320047 Spring washerSpring washer
-
54605349313 Rear Arm WeldRear Arm Weld
-
555346865 ShaftShaft
-
5640014 Screw M10 x 40Screw M10 x 40
-
575345535 Rear armRear arm
-
58605249273 Upper armUpper arm
-
5940058 Locking screw M8 x 20Locking screw M8 x 20
-
60413711500 Synthetic greaseSynthetic grease
-
615446700 SleeveSleeve
-
625446701 SleeveSleeve
-
6346027 Idler Wheel blackIdler Wheel black
-
6440376 Locking screw M8 x 80Locking screw M8 x 80
-
655343191 Slide partSlide part
-
6640064 Screw M6x40Screw M6x40
-
6740134 Allen screw M10 x 45Allen screw M10 x 45
-
68570063600 CapCap
-
69572089000 Labyrinth sealLabyrinth seal
-
70605350700 Shock assy, rear. Includes items 70 thru 75Shock assy, rear. Includes items 70 thru 75
-
7023173 Shock, centerShock, center
-
7023174 Shock, rearShock, rear
-
70605350699 Shock assy, center. Includes items 70 thru 75Shock assy, center. Includes items 70 thru 75
-
7125055 Spring, rear armSpring, rear arm
-
7125064 Spring, front armSpring, front arm
-
7231094 Slide bearingSlide bearing
-
73230078 CamCam
-
745346750 Spring stopperSpring stopper
-
75230049 Spring guideSpring guide
-
765446652 SleeveSleeve
-
77572097603 Wheel 135/redWheel 135/red
-
785346754 ProtectorProtector
-
7931013 ShimShim
-
8031007 CirclipCirclip
-
8131091 ShimShim
-
82405404500 Ball bearingBall bearing
-
83371901700 CirclipCirclip
-
845448025 CapCap
-
8531068 CushionCushion
-
86605449317 Shaft, rear shockShaft, rear shock
-
87320006 Loctite 641Loctite 641
