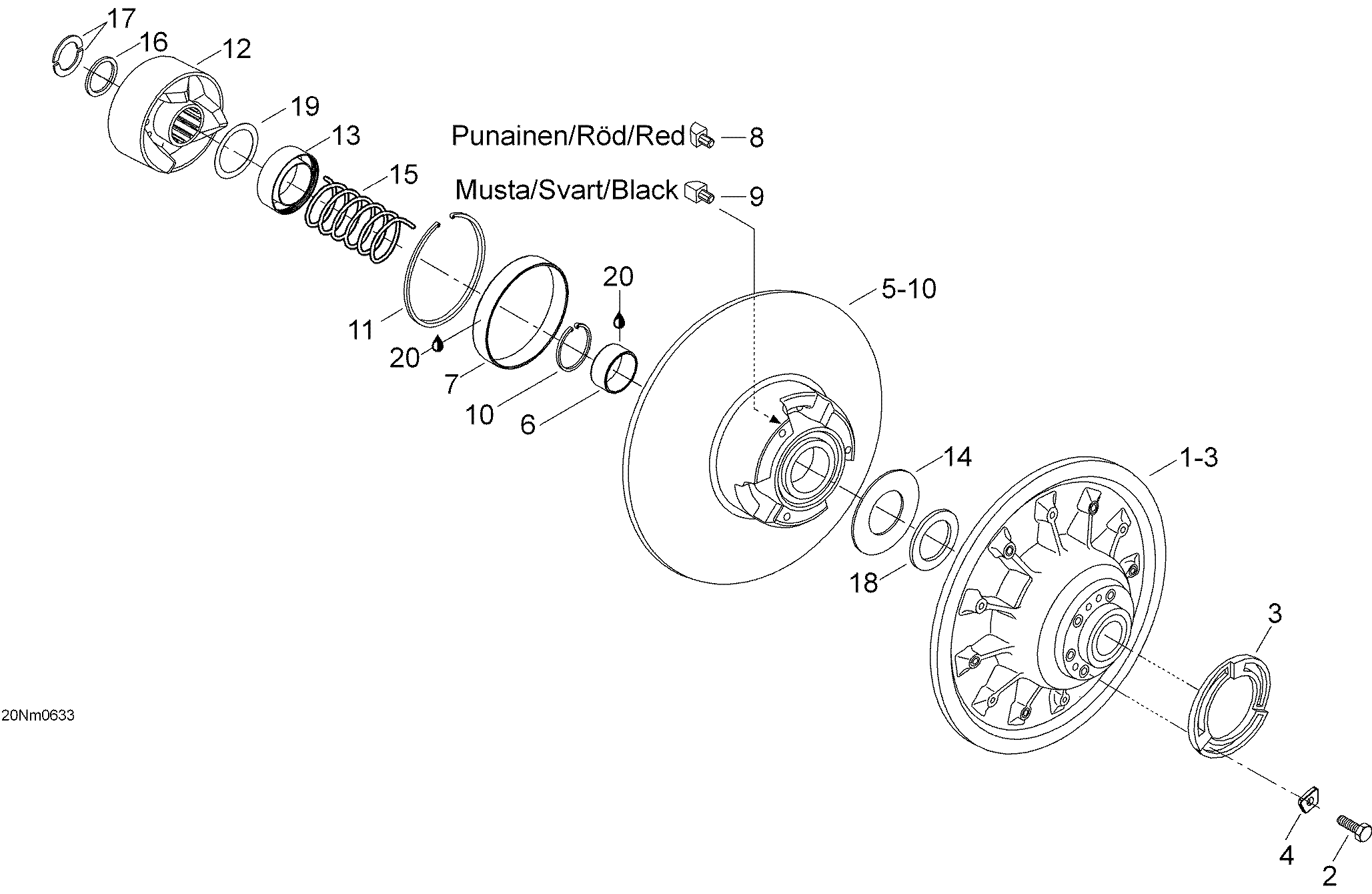

05- Driven pulley для BRP Lynx Adventure GT 600HO SDI - 2006
-
№АртикулНазвание
-
1417126807 Fixed half pulley assy. Innehaller delar 1-3Fixed half pulley assy. Innehaller delar 1-3
-
2207162544 Screw M6x25Screw M6x25
-
2207162244 Screw M6x22Screw M6x22
-
3415005800 Ring-adjustmentRing-adjustment
-
4415005900 Shim-adjustmentShim-adjustment
-
5417126909 Sliding pulley ass'y. Innehaller delar 5-10Sliding pulley ass'y. Innehaller delar 5-10
-
6417126901 BushingBushing
-
7417126902 BushingBushing
-
8417126373 Cam slide shoe (rear)Cam slide shoe (rear)
-
9417126374 Cam slide shoe (front)Cam slide shoe (front)
-
10371911200 CirclipCirclip
-
11417126878 CirclipCirclip
-
12417126385 CamCam
-
13417126381 ProtectorProtector
-
14504099600 Stopper washerStopper washer
-
15417126687 Spring, svartSpring, svart
-
16417126733 SpacerSpacer
-
17417126734 Half keyHalf key
-
18504112300 ShimShim
-
19417126322 SwivelSwivel
-
20413408300 Loctite, black Max, 3 mlLoctite, black Max, 3 ml
