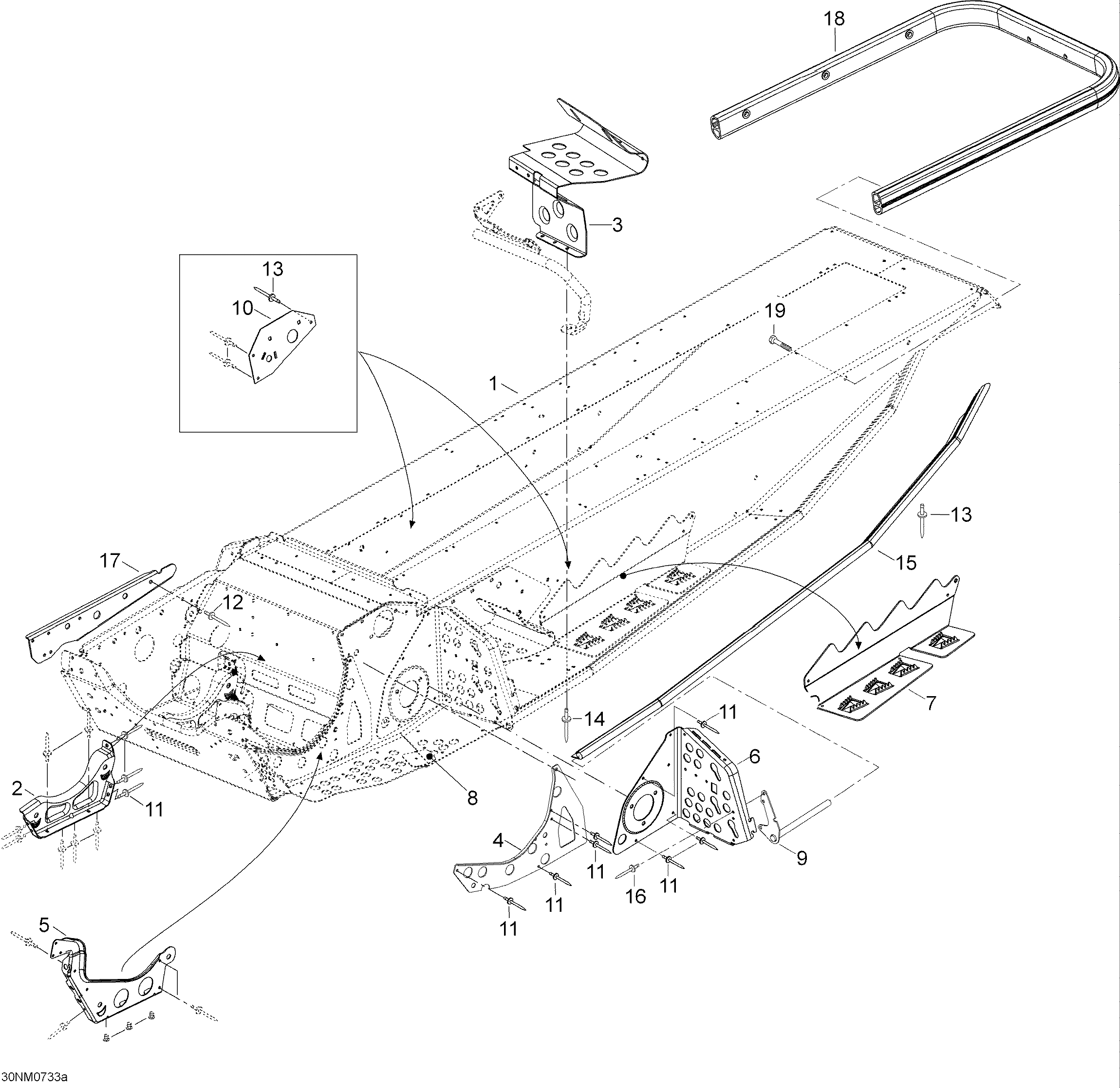

09- Frame для BRP Lynx Adventure GT 600HO SDI - 2007
-
№АртикулНазвание
-
1605153533 Frame ass'y. Includes 1 to 21Frame ass'y. Includes 1 to 21
-
2518323346 StiffenerStiffener
-
3605353473 R.H. Toe holdR.H. Toe hold
-
3605353472 L.H. Toe holdL.H. Toe hold
-
4605350345 Inner reinforcementInner reinforcement
-
5605451826 Engine supportEngine support
-
6518323805 R.H. footrest reinforcementR.H. footrest reinforcement
-
6518324527 L.H. footrest reinforcementL.H. footrest reinforcement
-
7605253924 R.H. footrest reinforcementR.H. footrest reinforcement
-
7605253923 L.H. footrest reinforcementL.H. footrest reinforcement
-
8605451590 Rivet plateRivet plate
-
9605453453 L.H. Support plateL.H. Support plate
-
9605453454 R.H. Support plateR.H. Support plate
-
10605453605 R.H. BracketR.H. Bracket
-
10605453604 L.H. BracketL.H. Bracket
-
1136007 RivetRivet
-
12605636005 RivetRivet
-
1336108 RivetRivet
-
1436489 RivetRivet
-
15605354023 L.H. RollerL.H. Roller
-
15605354024 R.H. RollerR.H. Roller
-
1636006 RivetRivet
-
17605353544 StiffenerStiffener
-
18605253597 Rear bumperRear bumper
-
1940336 Screw M8 x 20Screw M8 x 20
