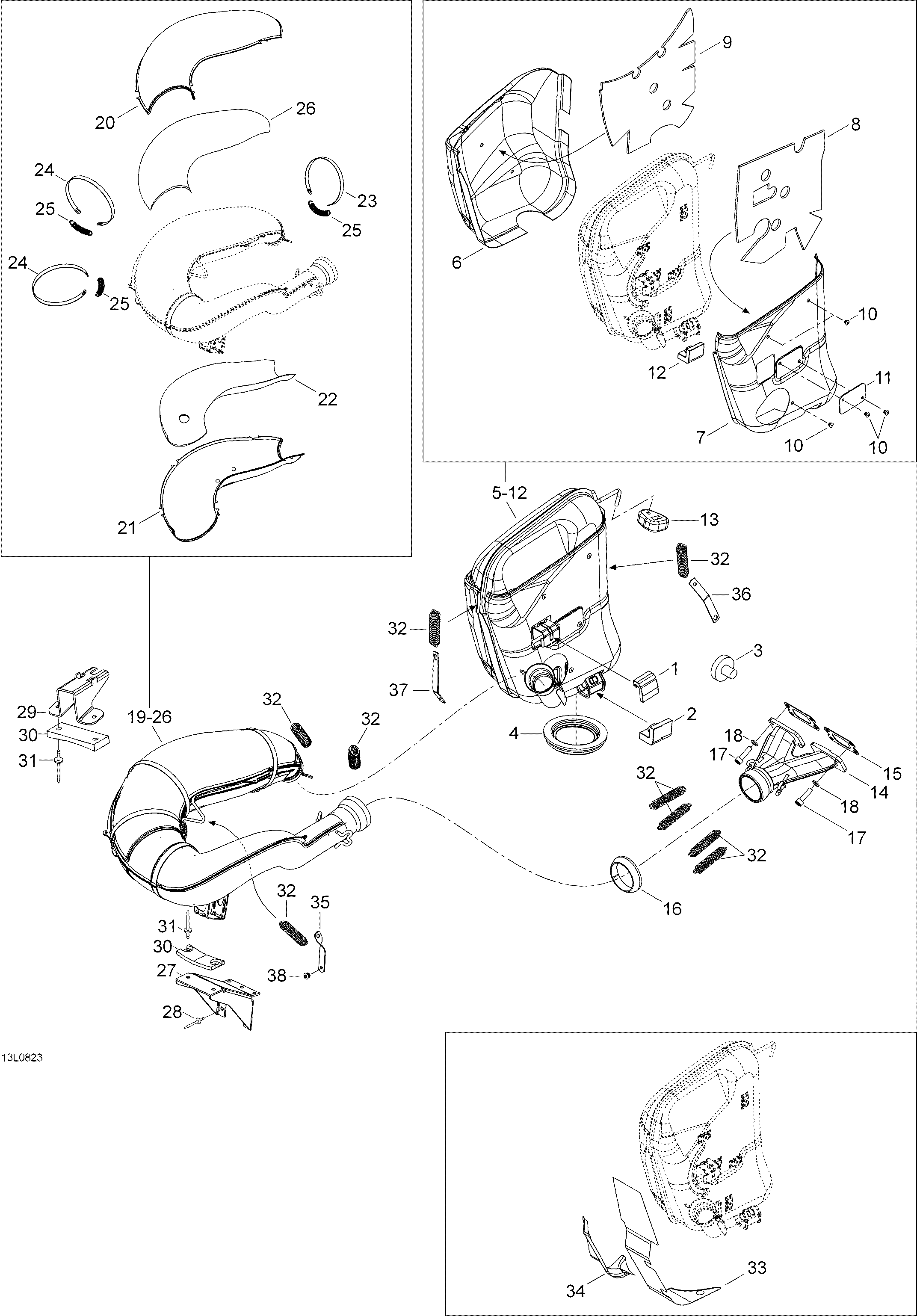

01- Exhaust System для BRP Lynx Adventure LX 550 - 2008
-
№АртикулНазвание
-
1514053372 Upper stopperUpper stopper
-
2514054223 Lower stopperLower stopper
-
3514053654 Side stopperSide stopper
-
4514053394 Exhaust grommetExhaust grommet
-
5514054099 Muffler ass'y. Includes 5 to 12Muffler ass'y. Includes 5 to 12
-
6514054100 R.H. DeflectorR.H. Deflector
-
7514053843 Heat deflector L.H.Heat deflector L.H.
-
8514053844 Insulating wool L.H.Insulating wool L.H.
-
9514053947 Insulating wool R.H.Insulating wool R.H.
-
10390910000 RivetRivet
-
11514053429 ReinforcementReinforcement
-
12514054223 Lower stopperLower stopper
-
13514052704 Rubber bumperRubber bumper
-
14420673065 Exhaust manifold. Includes 7 to 9Exhaust manifold. Includes 7 to 9
-
15420831849 GasketGasket
-
16514053644 Exhaust gasketExhaust gasket
-
1740135 Socket head screw M8 x 30Socket head screw M8 x 30
-
1820014 Lock washer A8Lock washer A8
-
19514053848 Tuned pipe ass'y. Includes 19 to 26Tuned pipe ass'y. Includes 19 to 26
-
20514053852 Rear upper half-enveloppeRear upper half-enveloppe
-
21514053853 Rear lower half-enveloppeRear lower half-enveloppe
-
22514053854 Lower insulating woolLower insulating wool
-
23514053501 Retaining strapRetaining strap
-
24514053512 Retaining strapRetaining strap
-
25514053643 SpringSpring
-
26514053987 Upper insulating woolUpper insulating wool
-
27605354926 Lower bracketLower bracket
-
2836108 RivetRivet
-
29605255394 Upper bracketUpper bracket
-
30514053352 Rubber bumperRubber bumper
-
3136037 RivetRivet
-
32415107100 SpringSpring
-
33514053560 Reflective sheetReflective sheet
-
34514053622 Reflective sheetReflective sheet
-
35605451629 Spring bracketSpring bracket
-
36514053725 Spring bracketSpring bracket
-
37514053393 Spring bracketSpring bracket
-
3836489 RivetRivet
