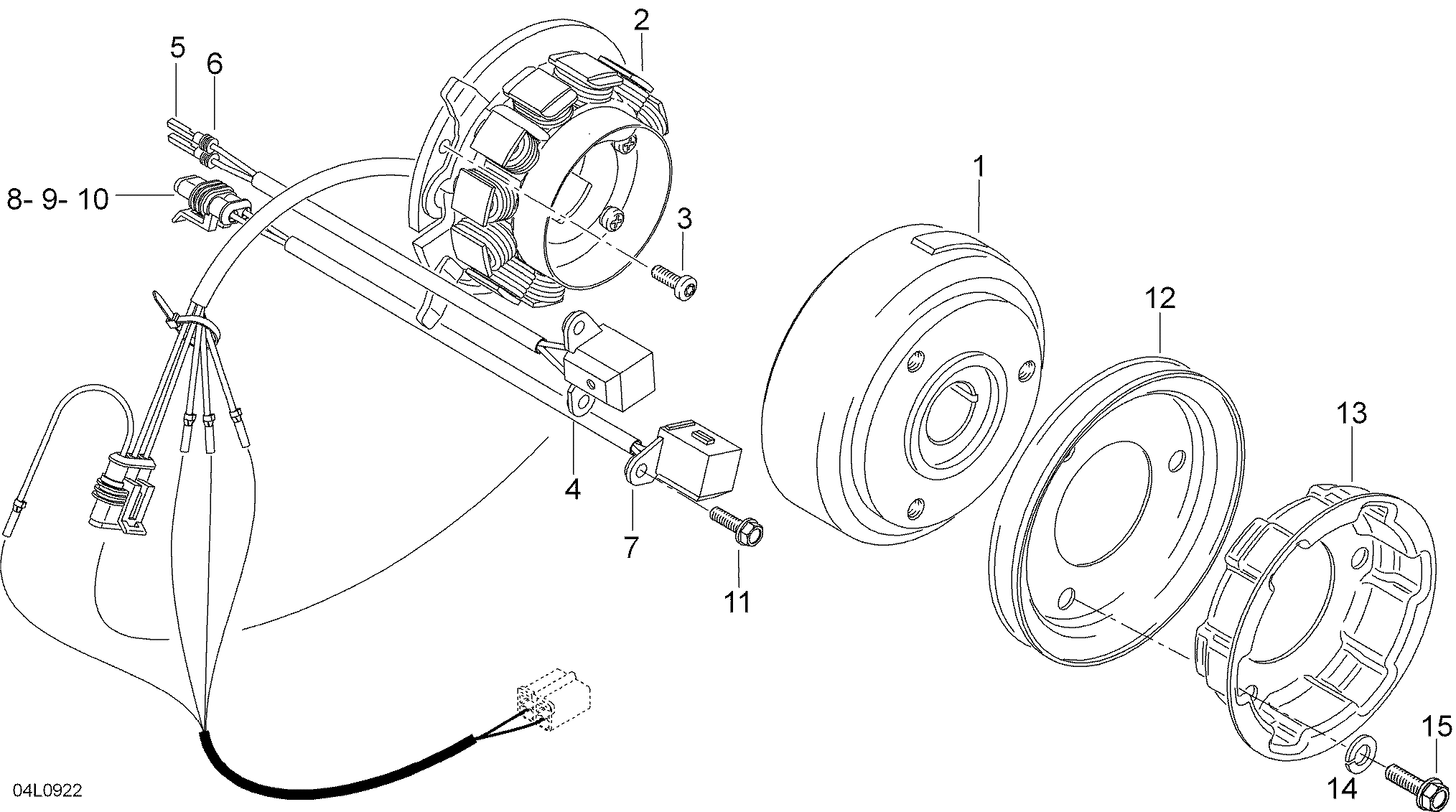

01- Ignition для BRP Lynx Rave 550 - 2009
-
№АртикулНазвание
-
1420889376 Fly wheelFly wheel
-
2420889369 Stator ass'yStator ass'y
-
3420641521 Allen screw M5 x 16Allen screw M5 x 16
-
4420665162 Pick up ass'y for reverse. Includes 6 to 8Pick up ass'y for reverse. Includes 6 to 8
-
5278001014 Female terminalFemale terminal
-
6278001013 SealSeal
-
7420665160 Pick up assy. Includes 9 to 12Pick up assy. Includes 9 to 12
-
8409209500 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
9278001014 Female terminalFemale terminal
-
10278001013 SealSeal
-
11420941925 Taptite screw M5 x 16Taptite screw M5 x 16
-
12420980486 V-belt pulleyV-belt pulley
-
13420852414 Starting pulleyStarting pulley
-
14420845311 Lock washerLock washer
-
15420440852 Screw M8 x 16Screw M8 x 16
