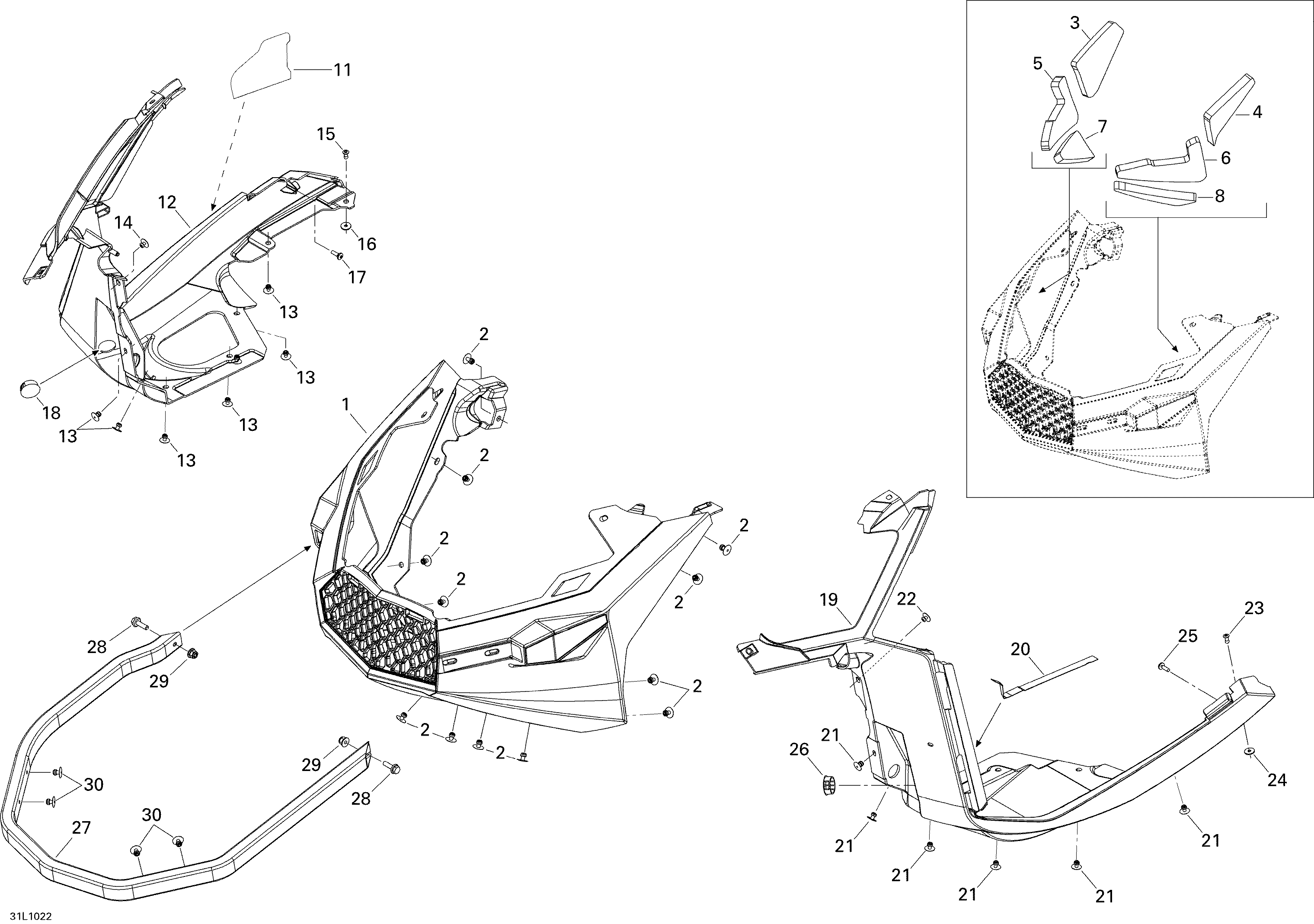

09- Bottom Pan для BRP Lynx Rave 550 - 2010
-
№АртикулНазвание
-
1502006971 Front Bottom PanFront Bottom Pan
-
2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3502006829 RH Foam UpperRH Foam Upper
-
4502006830 LH Foam UpperLH Foam Upper
-
5502006906 RH Middle FoamRH Middle Foam
-
6502006907 LH Middle FoamLH Middle Foam
-
7502006908 RH Lower FoamRH Lower Foam
-
8502006909 LH Lower FoamLH Lower Foam
-
11508000686 Heat shieldHeat shield
-
12502006914 RH Bottom PanRH Bottom Pan
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
15293150104 Pop Rivet 3/16''. Black-Black ModelPop Rivet 3/16''. Black-Black Model
-
15390402300 Pop Rivet 3/16''. White-White ModelPop Rivet 3/16''. White-White Model
-
16517124300 WasherWasher
-
17250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
18414916600 Nylon CapNylon Cap
-
19502007051 LH Bottom PanLH Bottom Pan
-
20293250087 GasketGasket
-
21293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
22293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
23293150104 Pop Rivet 3/16''. Black-Black ModelPop Rivet 3/16''. Black-Black Model
-
23390402300 Pop Rivet 3/16''. White-White ModelPop Rivet 3/16''. White-White Model
-
24517124300 WasherWasher
-
25250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
26414916600 Nylon CapNylon Cap
-
27502006944 Front BumperFront Bumper
-
28207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
29233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
30293150104 Pop Rivet 3/16''Pop Rivet 3/16''
