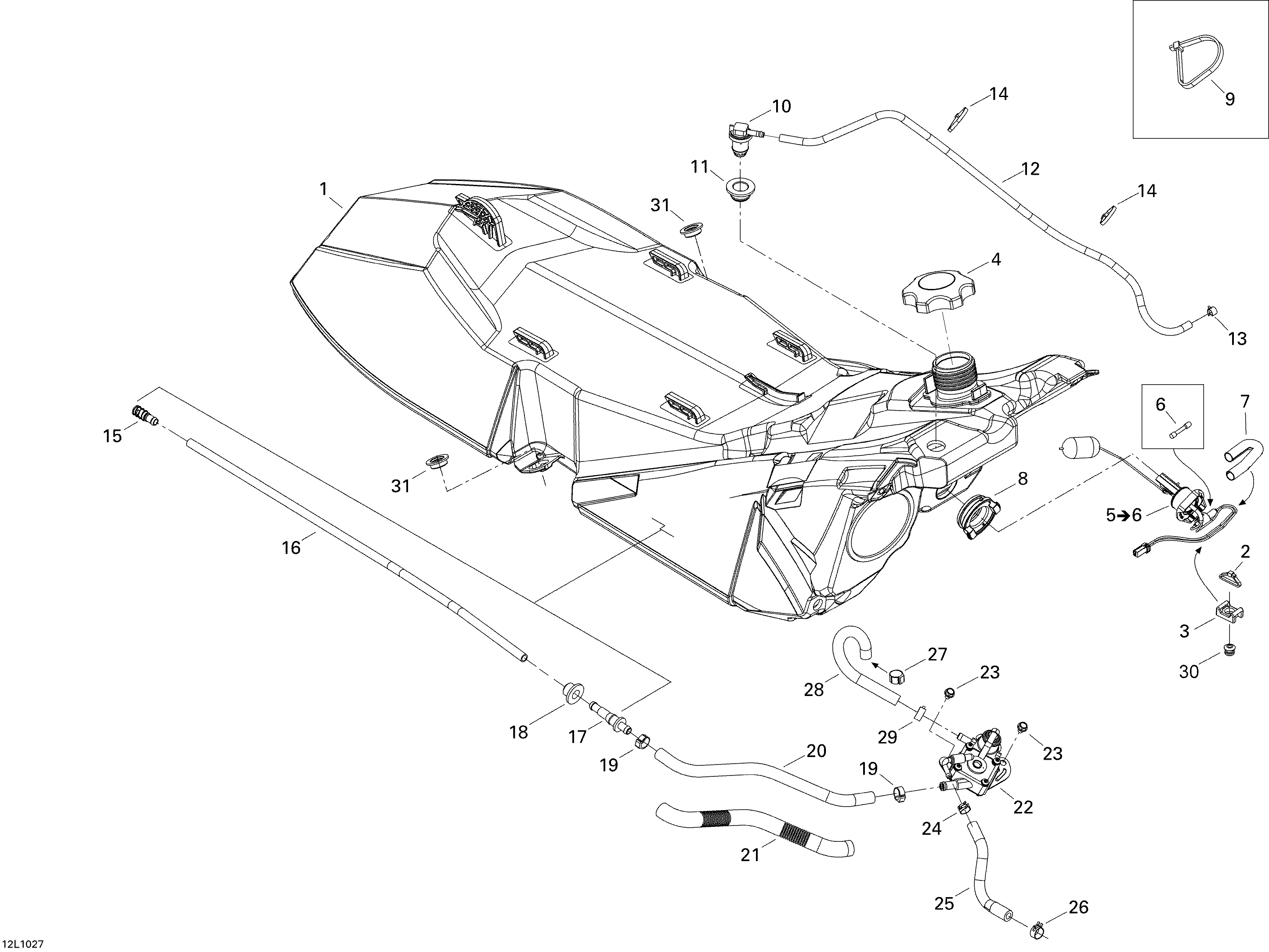

02- Fuel System для BRP Lynx Rave RE 800R PowerTEK - 2010
-
№АртикулНазвание
-
1513033609 Fuel TankFuel Tank
-
2293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
3515176795 ClipClip
-
4513033025 Fuel Tank CapFuel Tank Cap
-
5513033605 Fuel SensorFuel Sensor
-
6710001995 Fuse 0.5AFuse 0.5A
-
7415079900 Tubing 10 mmTubing 10 mm
-
8513033606 GrommetGrommet
-
9293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
10513033188 Check ValveCheck Valve
-
11513033596 GrommetGrommet
-
12415080200 Hose, PolyurethaneHose, Polyurethane
-
13414554800 Spring ClampSpring Clamp
-
14414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
15414872100 Fuel FilterFuel Filter
-
16513033332 HoseHose
-
17414872700 Male ConnectorMale Connector
-
18513033435 GrommetGrommet
-
19605627009 ClampClamp
-
20513033165 HoseHose
-
21415080000 Tubing 16 mmTubing 16 mm
-
22513033184 Fuel PompeFuel Pompe
-
23210261040 Hex. Flanged Forming Screw M6 X 10Hex. Flanged Forming Screw M6 X 10
-
24605627010 ClampClamp
-
25513033327 HoseHose
-
26605627005 ClampClamp
-
27605627005 ClampClamp
-
28513033343 HoseHose
-
29605627005 ClampClamp
-
30390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
31513033326 Shoulder BushingShoulder Bushing
