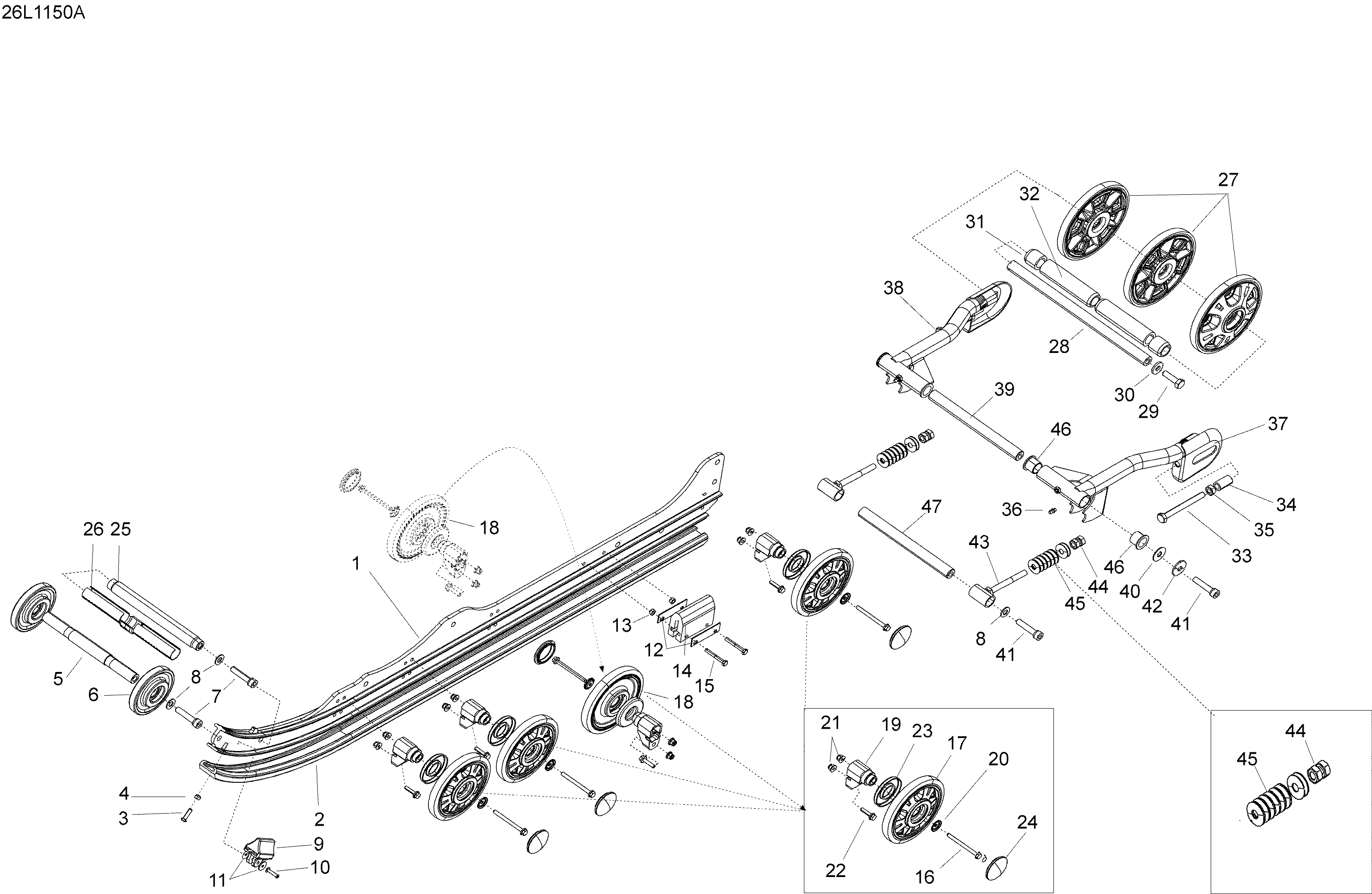

08- Rear Suspension для BRP Lynx 49 Ranger 600 E-TEC - 2011
-
№АртикулНазвание
-
1503192790 Runner PPS SLURunner PPS SLU
-
2503192843 Slider shoeSlider shoe
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192842 Front wheel shaftFront wheel shaft
-
6503192611 Wheel 100Wheel 100
-
7205504544 ScrewScrew
-
8234001410 Flat Washer 10 mmFlat Washer 10 mm
-
9503192106 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12548387 Plate washerPlate washer
-
13232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
14570023100 Rubber StopperRubber Stopper
-
15207064544 Hex. Screw M6 X 45Hex. Screw M6 X 45
-
16207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
17503191942 Wheel outside -141mm.Wheel outside -141mm.
-
18503191316 Wheel 141 Ass'yWheel 141 Ass'y
-
19503192793 Molded SupportMolded Support
-
20503191820 Wheel Cup M6Wheel Cup M6
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
23503190434 Labyrinth SealLabyrinth Seal
-
24570063600 Wheel CapWheel Cap
-
25605353958 ShaftShaft
-
26605355096 Retainer for stopper strapRetainer for stopper strap
-
27503192676 Wheel 165 WhiteWheel 165 White
-
28503190429 Rear AxleRear Axle
-
29250000817 Hex. Screw With NylonHex. Screw With Nylon
-
30503190439 WasherWasher
-
31503192048 SpacerSpacer
-
32503192670 SpacerSpacer
-
3340239 Screw hex capScrew hex cap
-
34503192696 SpacerSpacer
-
35232006414 Hex. Nut M10Hex. Nut M10
-
36408200700 Grease FittingGrease Fitting
-
37503192053 Extension swing LHExtension swing LH
-
38503192054 Extension swing RHExtension swing RH
-
395346900 Shaft , L=215Shaft , L=215
-
4020116 Shim 10,5/30X1,5 ZNEShim 10,5/30X1,5 ZNE
-
41205504547 Screw socket gripScrew socket grip
-
42512056700 Lock WasherLock Washer
-
43503192695 Adjustment screwAdjustment screw
-
44232006414 Hex. Nut M10Hex. Nut M10
-
4525004 Cup spring 28X10.2X1.25 DIN2093Cup spring 28X10.2X1.25 DIN2093
-
4631024 BearingBearing
-
475343471 ShaftShaft
