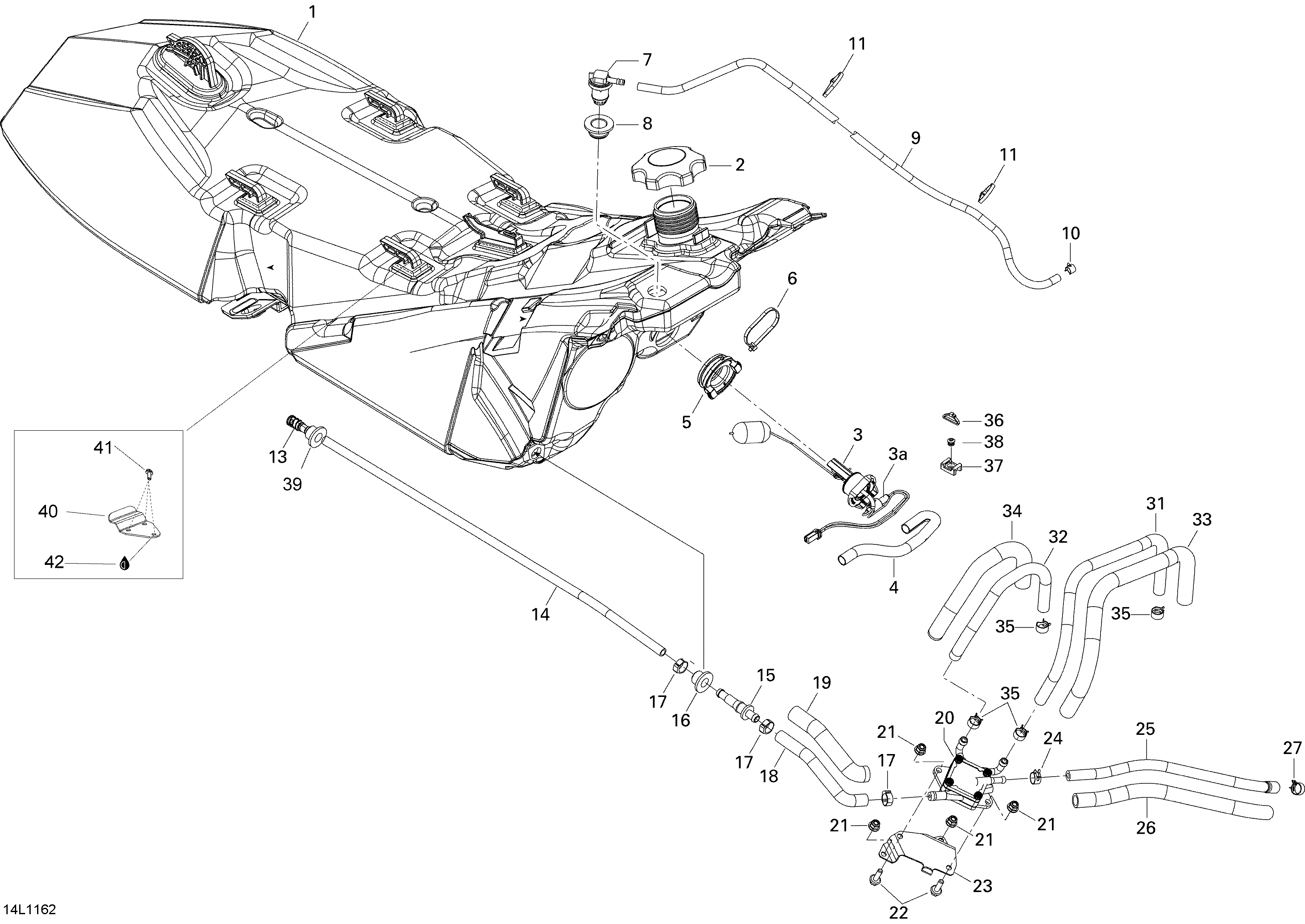

02- Fuel System для BRP Lynx Rave 550 - 2011
-
№АртикулНазвание
-
1513033609 Fuel TankFuel Tank
-
2513033025 Fuel Tank CapFuel Tank Cap
-
3513033624 Fuel Level Sensor Ass'yFuel Level Sensor Ass'y
-
3a710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
4415079900 Tubing 10 mmTubing 10 mm
-
5513033606 GrommetGrommet
-
6293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
7513033188 Check ValveCheck Valve
-
8513033596 GrommetGrommet
-
9415080200 Hose, PolyurethaneHose, Polyurethane
-
10414554800 Spring ClampSpring Clamp
-
11414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
13414872100 Fuel FilterFuel Filter
-
14513033332 HoseHose
-
15414872700 Male ConnectorMale Connector
-
16513033435 GrommetGrommet
-
17293650053 Crimp ClampCrimp Clamp
-
18513033499 Formed HoseFormed Hose
-
19415080000 Tubing 16 mmTubing 16 mm
-
20403901813 Fuel PumpFuel Pump
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
23513033543 Pump BracketPump Bracket
-
24414415200 Universal Spring ClampUniversal Spring Clamp
-
25513033553 Formed HoseFormed Hose
-
26415080000 Tubing 16 mmTubing 16 mm
-
27513033029 Universal Spring ClampUniversal Spring Clamp
-
31415129492 HoseHose
-
32415129492 HoseHose
-
33415080000 Tubing 16 mmTubing 16 mm
-
34415080000 Tubing 16 mmTubing 16 mm
-
35513033029 Universal Spring ClampUniversal Spring Clamp
-
36515176795 ClipClip
-
37293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
38390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
3928037 Grommet 16/10x11Grommet 16/10x11
-
40510005129 Seat front fastening plateSeat front fastening plate
-
41205461046 Screw socketScrew socket
-
42293800060 Loctite 243, 10 mlLoctite 243, 10 ml
