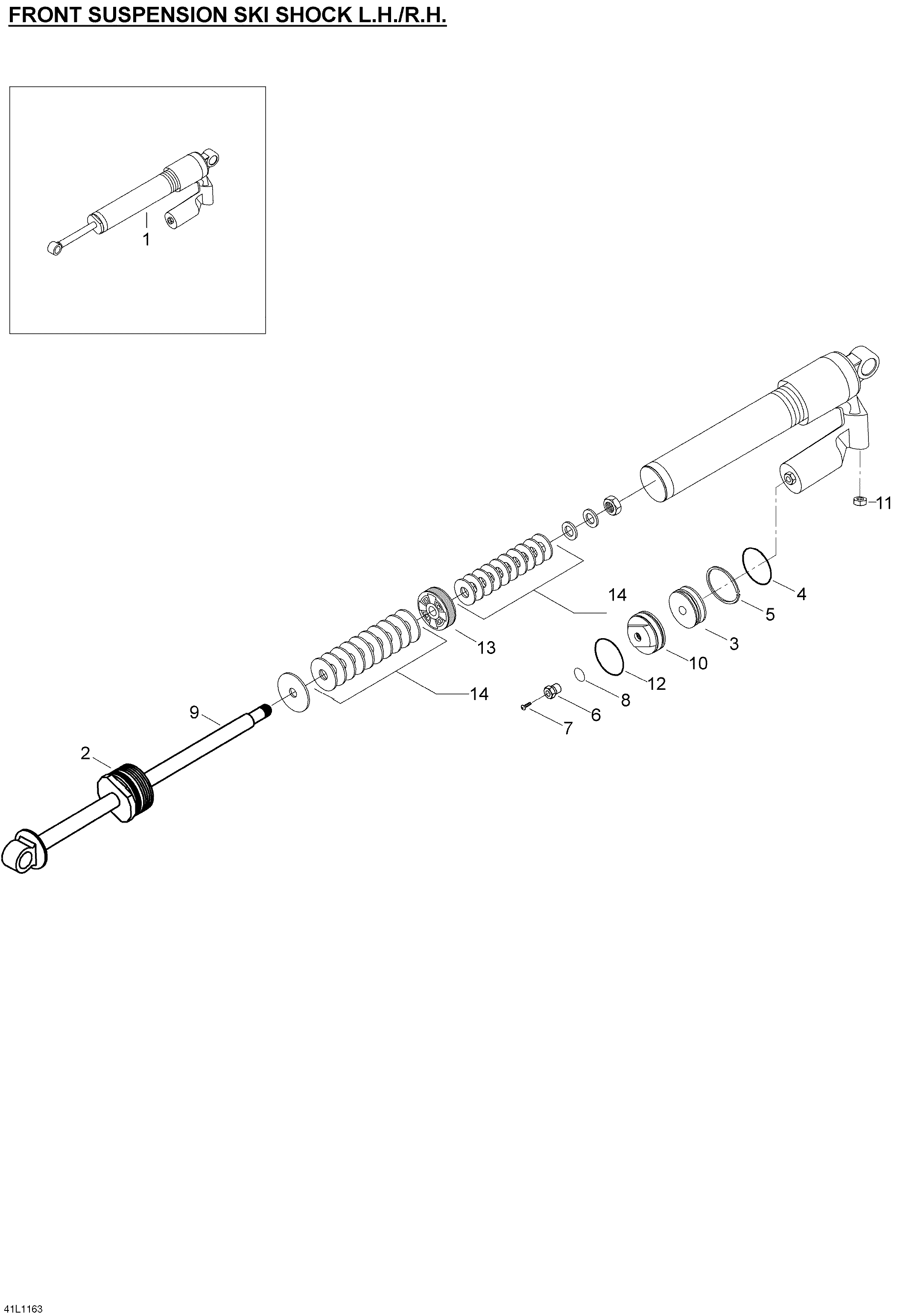

07- Take Apart Shock, Ski для BRP Lynx Rave RE 800R E-TEC - 2011
-
№АртикулНазвание
-
1619330018 RH HPG Front Shock (cal.505072904). Includes 1 to 14RH HPG Front Shock (cal.505072904). Includes 1 to 14
-
1619330017 LH HPG Front Shock (cal.505072906). Includes 1 to 14LH HPG Front Shock (cal.505072906). Includes 1 to 14
-
4415093807 O-RingO-Ring
-
5503189006 Piston RingPiston Ring
-
6505070398 Air Valve RingAir Valve Ring
-
7505070399 ScrewScrew
-
8505070400 O-RingO-Ring
-
9619300175 Rod ass'yRod ass'y
-
10619300009 Seal carrier assySeal carrier assy
-
11619300015 Valve ass'yValve ass'y
-
12415093804 O-RingO-Ring
-
14619300060 Shim 40/46 mm. 17 X 0,114Shim 40/46 mm. 17 X 0,114
-
14619300069 Shim 40/46 mm. 17 X 0,203Shim 40/46 mm. 17 X 0,203
-
14619300068 Shim 40/46 mm. 18 X 0,114Shim 40/46 mm. 18 X 0,114
-
14619300067 Shim 40/46 mm. 18 X 0,152Shim 40/46 mm. 18 X 0,152
-
14230029 Shim 40/46 mm. 20 X 0,114Shim 40/46 mm. 20 X 0,114
-
14230030 Shim 40/46 mm. 20 X 0,152Shim 40/46 mm. 20 X 0,152
-
14230031 Shim 40/46 mm. 20 X 0,203Shim 40/46 mm. 20 X 0,203
-
14230032 Shim 40/46 mm. 20 X 0,254Shim 40/46 mm. 20 X 0,254
-
14619300097 Shim 40/46 mm. 20 X 0,305Shim 40/46 mm. 20 X 0,305
-
14619300133 Shim 40/46 mm. 22 X 0,114Shim 40/46 mm. 22 X 0,114
-
14619300140 Shim 40/46 mm. 22 X 0,152Shim 40/46 mm. 22 X 0,152
-
14619300098 Shim 40/46 mm. 22 X 0,203Shim 40/46 mm. 22 X 0,203
-
14619300134 Shim 40/46 mm. 22 X 0,254Shim 40/46 mm. 22 X 0,254
-
14503189015 Shim 40/46 mm. 22 X 0,305Shim 40/46 mm. 22 X 0,305
-
14503189016 Shim 40/46 mm. 24 X 0,114Shim 40/46 mm. 24 X 0,114
-
14503189017 Shim 40/46 mm. 24 X 0,152Shim 40/46 mm. 24 X 0,152
-
14503189018 Shim 40/46 mm. 24 X 0,203Shim 40/46 mm. 24 X 0,203
-
14619300095 Shim 40/46 mm. 24 X 0,254Shim 40/46 mm. 24 X 0,254
-
14503189020 Shim 40/46 mm. 24 X 0,305Shim 40/46 mm. 24 X 0,305
-
14503189021 Shim 40/46 mm. 26 X 0,114Shim 40/46 mm. 26 X 0,114
-
14619300141 Shim 40/46 mm. 26 X 0,152Shim 40/46 mm. 26 X 0,152
-
14503189023 Shim 40/46 mm. 26 X 0,203Shim 40/46 mm. 26 X 0,203
-
14619300099 Shim 40/46 mm. 26 X 0,254Shim 40/46 mm. 26 X 0,254
-
14619300100 Shim 40/46 mm. 26 X 0,305Shim 40/46 mm. 26 X 0,305
-
14619300101 Shim 40/46 mm. 28 X 0,114Shim 40/46 mm. 28 X 0,114
-
14503189027 Shim 40/46 mm. 28 X 0,152Shim 40/46 mm. 28 X 0,152
-
14619300102 Shim 40/46 mm. 28 X 0,203Shim 40/46 mm. 28 X 0,203
-
14619300103 Shim 40/46 mm. 28 X 0,254Shim 40/46 mm. 28 X 0,254
-
14503189030 Shim 40/46 mm. 28 X 0,305Shim 40/46 mm. 28 X 0,305
-
14619300135 Shim 40/46 mm. 30 X 0,114Shim 40/46 mm. 30 X 0,114
-
14619300104 Shim 40/46 mm. 30 X 0,152Shim 40/46 mm. 30 X 0,152
-
14503189033 Shim 40/46 mm. 30 X 0,203Shim 40/46 mm. 30 X 0,203
-
14619300113 Shim 40/46 mm. 30 X 0,254Shim 40/46 mm. 30 X 0,254
-
14619300056 Shim 40/46 mm. 30 X 0,305Shim 40/46 mm. 30 X 0,305
-
14230082 Shim 40/46 mm. 32 X 0,114Shim 40/46 mm. 32 X 0,114
-
14619300137 Shim 40/46 mm. 32 X 0,152Shim 40/46 mm. 32 X 0,152
-
14619300138 Shim 40/46 mm. 32 X 0,203Shim 40/46 mm. 32 X 0,203
-
14619300059 Shim 40/46 mm. 32 X 0,254Shim 40/46 mm. 32 X 0,254
-
14619300022 Shim 40/46 mm. 32 X 0,305Shim 40/46 mm. 32 X 0,305
-
14230033 Shim 40/46 mm. 34 X 0,114Shim 40/46 mm. 34 X 0,114
-
14230034 Shim 40/46 mm. 34 X 0,152Shim 40/46 mm. 34 X 0,152
-
14230035 Shim 40/46 mm. 34 X 0,203Shim 40/46 mm. 34 X 0,203
-
14230036 Shim 40/46 mm. 34 X 0,254Shim 40/46 mm. 34 X 0,254
-
14619300070 Shim 40/46 mm. 34 X 0,305Shim 40/46 mm. 34 X 0,305
-
14230037 Shim 40/46 mm. 36 X 0,114Shim 40/46 mm. 36 X 0,114
-
14503189036 Shim 40/46 mm. 36 X 0,152Shim 40/46 mm. 36 X 0,152
-
14619300142 Shim 40/46 mm. 36 X 0,203Shim 40/46 mm. 36 X 0,203
-
14503189038 Shim 40/46 mm. 36 X 0,254Shim 40/46 mm. 36 X 0,254
-
14619300105 Shim 40/46 mm. 36 X 0,305Shim 40/46 mm. 36 X 0,305
-
14230040 Shim 40/46 mm. 38 X 0,152Shim 40/46 mm. 38 X 0,152
-
14230041 Shim 40/46 mm. 38 X 0,203Shim 40/46 mm. 38 X 0,203
-
14230042 Shim 40/46 mm. 38 X 0,254Shim 40/46 mm. 38 X 0,254
-
14619300106 Shim 40/46 mm. 38 X 0,305Shim 40/46 mm. 38 X 0,305
-
14503189039 Shim 40/46 mm. 40 X 0,152Shim 40/46 mm. 40 X 0,152
-
14619300112 Shim 40/46 mm. 40 X 0,203Shim 40/46 mm. 40 X 0,203
-
14619300136 Shim 40/46 mm. 40 X 0,254Shim 40/46 mm. 40 X 0,254
-
14619300107 Shim 40/46 mm. 40 X 0,305Shim 40/46 mm. 40 X 0,305
