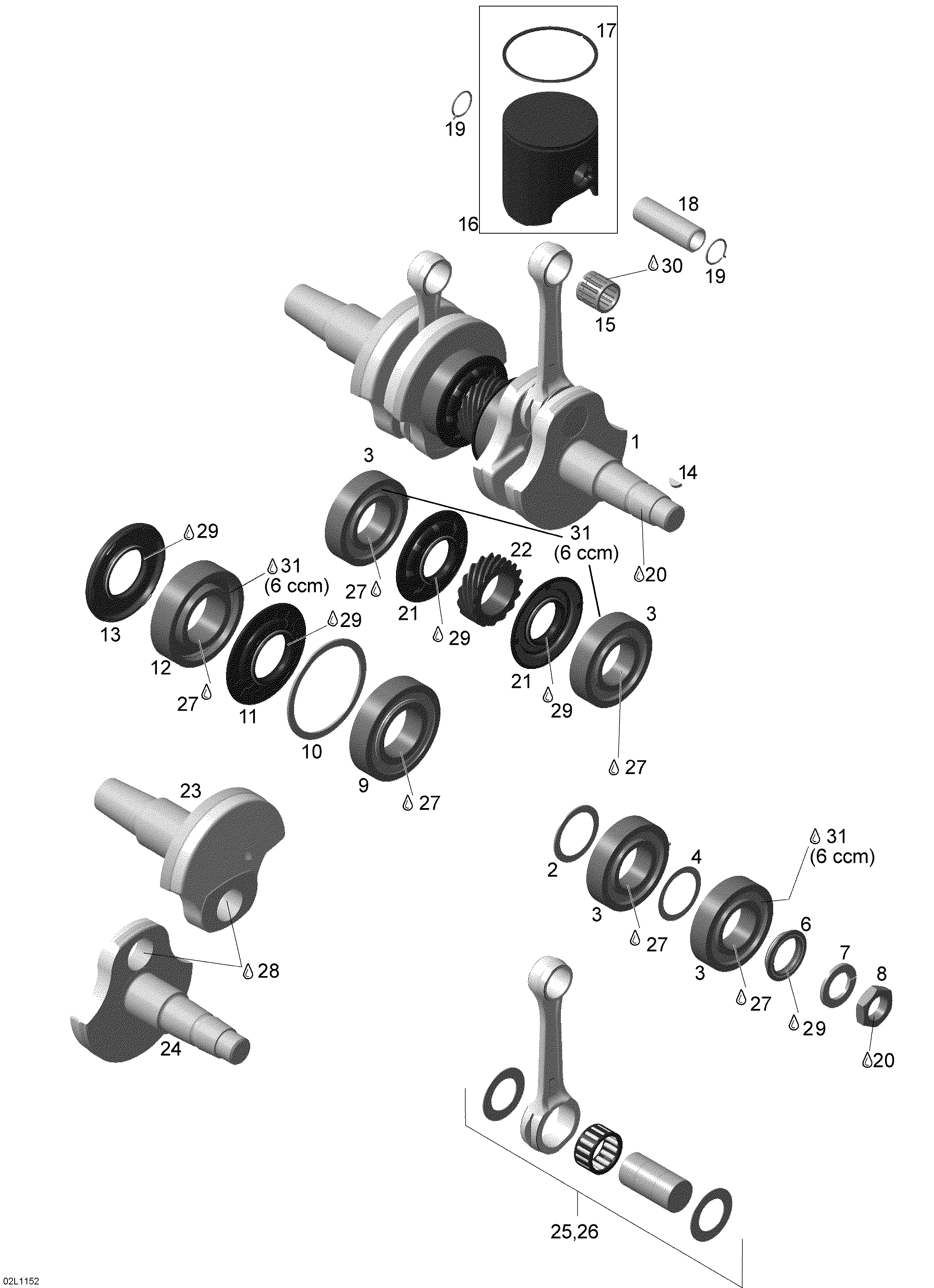

01- Crankshaft And Pistons для BRP Lynx Rave RS 600 - 2011
-
№АртикулНазвание
-
1420891632 Crankshaft Ass'y. Includes 1 to 14Crankshaft Ass'y. Includes 1 to 14
-
2420827767 ShimShim
-
3420832575 Ball BearingBall Bearing
-
4420427502 Adjustment WasherAdjustment Washer
-
6420931793 Oil SealOil Seal
-
7420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
8420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
9420832600 Ball Bearing 6208Ball Bearing 6208
-
10420926190 WasherWasher
-
11420931910 Oil SealOil Seal
-
12420832603 Ball BearingBall Bearing
-
13420931284 Oil SealOil Seal
-
14420246015 Woodruff KeyWoodruff Key
-
15420832445 Needle BearingNeedle Bearing
-
16420892383 Piston Ass'y, 71.87 mm. Includes 16 to 17Piston Ass'y, 71.87 mm. Includes 16 to 17
-
17420815295 Semi-Trapez RingSemi-Trapez Ring
-
18420916412 Piston PinPiston Pin
-
19420845106 Piston CirclipPiston Circlip
-
20293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
21420931455 Oil SealOil Seal
-
22420834355 Central GearCentral Gear
-
23420818708 Crankshaft, PTO SideCrankshaft, PTO Side
-
24420818739 Crankshaft, MAG SideCrankshaft, MAG Side
-
25420890958 Rod Repair Kit, PTO SideRod Repair Kit, PTO Side
-
26420890959 Rod Repair Kit, MAG SideRod Repair Kit, MAG Side
-
27293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
28420897340 Loctite 14486Loctite 14486
-
29420899271 Petamo Grease, GHY133N, 400 gPetamo Grease, GHY133N, 400 g
-
30619590101 Injection oil (83x 14L)Injection oil (83x 14L)
-
31293550021 Isoflex Grease, TOPAS NB52, 50 gIsoflex Grease, TOPAS NB52, 50 g
