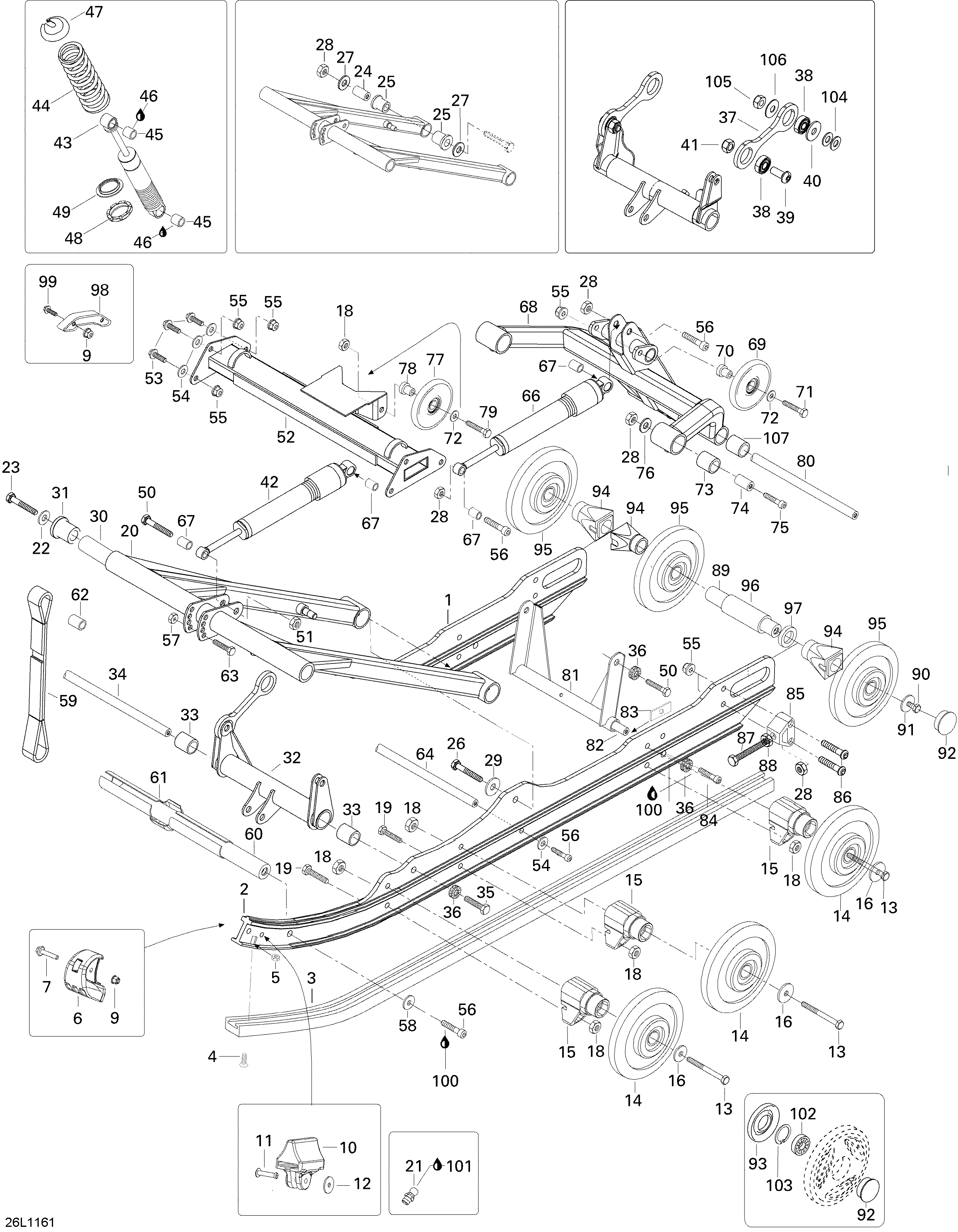

08- Rear Suspension для BRP Lynx Xtrim 550 - 2011
-
№АртикулНазвание
-
1503191981 L.H/R.H. RunnerL.H/R.H. Runner
-
3503192191 ShoeShoe
-
440845 Socket head screw M6 x 25Socket head screw M6 x 25
-
533010 Elastic stop nut M6Elastic stop nut M6
-
6503192299 Runner ProtectorRunner Protector
-
7207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
9233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
10503192106 Rubber StopperRubber Stopper
-
11293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
12503191273 WasherWasher
-
13207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
14503192441 Wheel 141 mm Ass'y, RedWheel 141 mm Ass'y, Red
-
15503191833 SupportSupport
-
16503191820 Wheel Cup M6Wheel Cup M6
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
20503191989 Front armFront arm
-
2134011 Grease nippleGrease nipple
-
22250200005 Conical Spring Washer M12Conical Spring Washer M12
-
2340243 Hex. screw M12 x 60Hex. screw M12 x 60
-
24605354157 ShaftShaft
-
2531065 CushionCushion
-
2640021 Hex. screw M10 x 70Hex. screw M10 x 70
-
2720116 WasherWasher
-
2833012 Elastic stop nut M10Elastic stop nut M10
-
29503183300 WasherWasher
-
30503192046 ShaftShaft
-
3131024 Cushion / bearingCushion / bearing
-
32605355772 Front AarmFront Aarm
-
3331024 Cushion / bearingCushion / bearing
-
34605355800 ShaftShaft
-
35205005547 Screw M10 x 55Screw M10 x 55
-
3620068 Lock washer D10Lock washer D10
-
37605254159 Connecting RodConnecting Rod
-
38605631003 Ball bearingBall bearing
-
39205402546 Socket Screw BN.HD.ISO.7380Socket Screw BN.HD.ISO.7380
-
4020012 WasherWasher
-
41233401414 Elastic stop nut M10Elastic stop nut M10
-
43503192389 Shock, front armShock, front arm
-
43503192385 Shock, rear armShock, rear arm
-
44605625010 SpringSpring
-
44605625009 Spring, rear arm 65Nm. 280mm.Spring, rear arm 65Nm. 280mm.
-
4531094 CushionCushion
-
4632161 Loctite 641, 50mlLoctite 641, 50ml
-
47230076 Spring SeatSpring Seat
-
48230048 NutNut
-
49230049 Spring guideSpring guide
-
50207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
5125004 Nut Stop ElasticNut Stop Elastic
-
52503192100 Upper armUpper arm
-
5340037 He. screw M8 x 25He. screw M8 x 25
-
54234081410 Flat Washer 8 mmFlat Washer 8 mm
-
55233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
56205005044 Socket head screw M10 x 50Socket head screw M10 x 50
-
57232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
5820005 Washer, hardened M10Washer, hardened M10
-
59605355116 Stopper strapStopper strap
-
60605353958 ShaftShaft
-
61605355096 LimiterLimiter
-
62605455335 SleeveSleeve
-
63207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
645343471 ShaftShaft
-
675446652 SleeveSleeve
-
68503193081 Rear armRear arm
-
69503192675 Idler wheel 133/blackIdler wheel 133/black
-
70605454461 SleeveSleeve
-
71207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
7220077 Washer A8,4Washer A8,4
-
7331065 CushionCushion
-
74503191927 ShaftShaft
-
75205027544 Socket head screw M12 x 75Socket head screw M12 x 75
-
7620040 Washer A12Washer A12
-
77572043500 Idler WheelIdler Wheel
-
78605454167 SleeveSleeve
-
7940006 Screw M8 x 35Screw M8 x 35
-
80605355118 ShaftShaft
-
81605353953 Rear armRear arm
-
82605355119 ShaftShaft
-
835446786 Support plateSupport plate
-
8440134 Socket head screw M10 x 45Socket head screw M10 x 45
-
855341633 Tensioner housingTensioner housing
-
8640392 Socket head screw M8 x 45Socket head screw M8 x 45
-
8740239 Hex. screw M10 x 100Hex. screw M10 x 100
-
8833004 Nut M10Nut M10
-
89503190429 Rear AxleRear Axle
-
9040050 Hex. screw M10 x 35Hex. screw M10 x 35
-
91503190439 WasherWasher
-
92570063600 Wheel CapWheel Cap
-
93503190434 Labyrinth SealLabyrinth Seal
-
94503190428 Rear Wheel SpacerRear Wheel Spacer
-
95503192677 Idler wheel 165Idler wheel 165
-
96503190430 SpacerSpacer
-
97503190432 WasherWasher
-
98503192731 Slide partSlide part
-
99207764044 Bolt Carriage DIN.603Bolt Carriage DIN.603
-
100293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
101293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
102293350055 Ball BearingBall Bearing
-
103371901700 CirclipCirclip
-
104234001410 Flat Washer 10 mmFlat Washer 10 mm
-
105233401414 Lock spring / M10 x 1.5Lock spring / M10 x 1.5
-
10625004 Spring CupSpring Cup
-
10731024 CushionCushion
