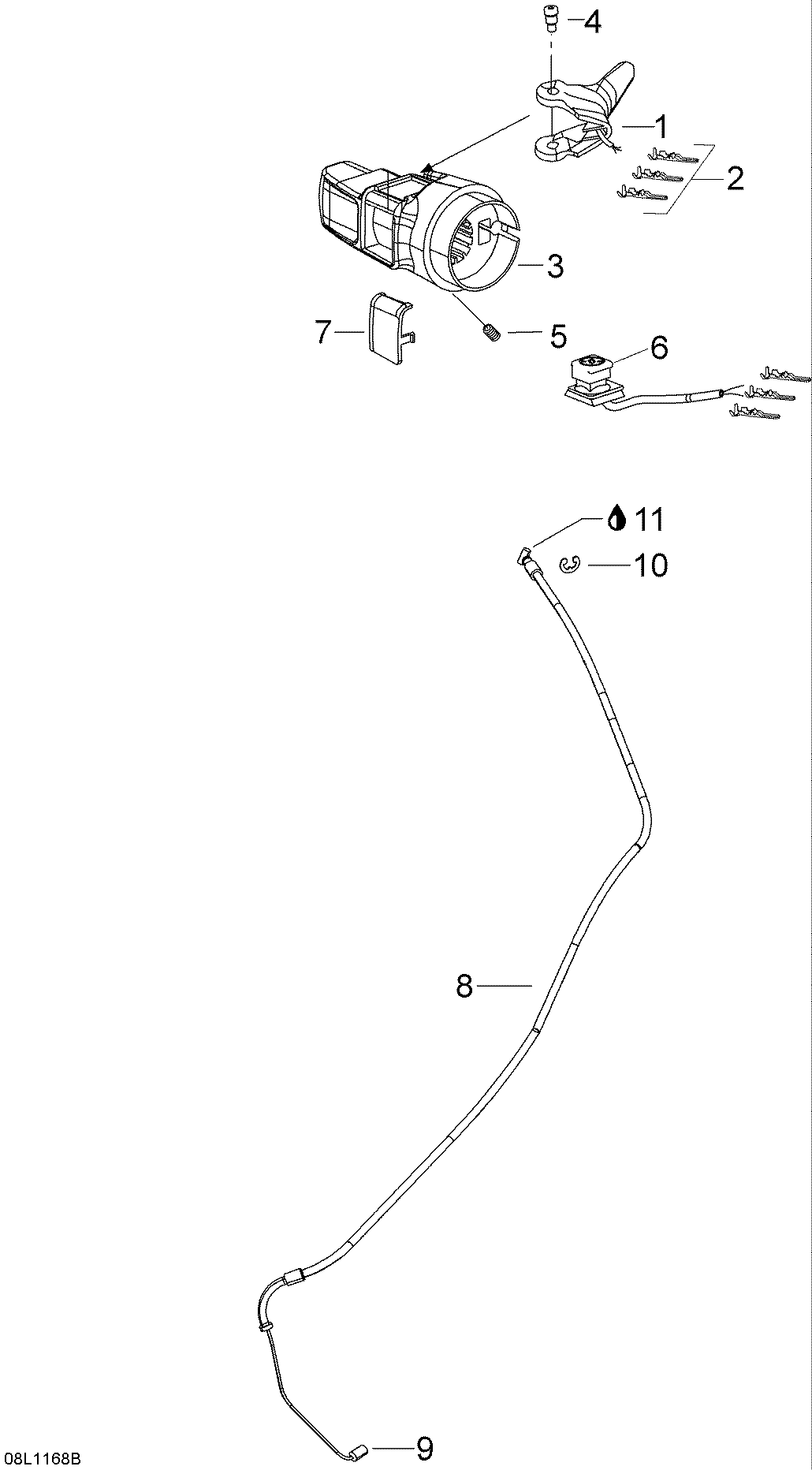

07- Throttle Handle And Housing для BRP Lynx YETI Pro V-800 - 2011
-
№АртикулНазвание
-
1512059481 Throttle HandleThrottle Handle
-
2605642628 ConnectorConnector
-
3512059763 Throttle HousingThrottle Housing
-
4732601143 Flanged ScrewFlanged Screw
-
5414440800 Socket Set Screw M8 X 10Socket Set Screw M8 X 10
-
6605356055 Emergency switchEmergency switch
-
7572100901 Switch CoverSwitch Cover
-
8605356001 Throttle CableThrottle Cable
-
9707000434 Cable GuideCable Guide
-
1031038 CirclipCirclip
