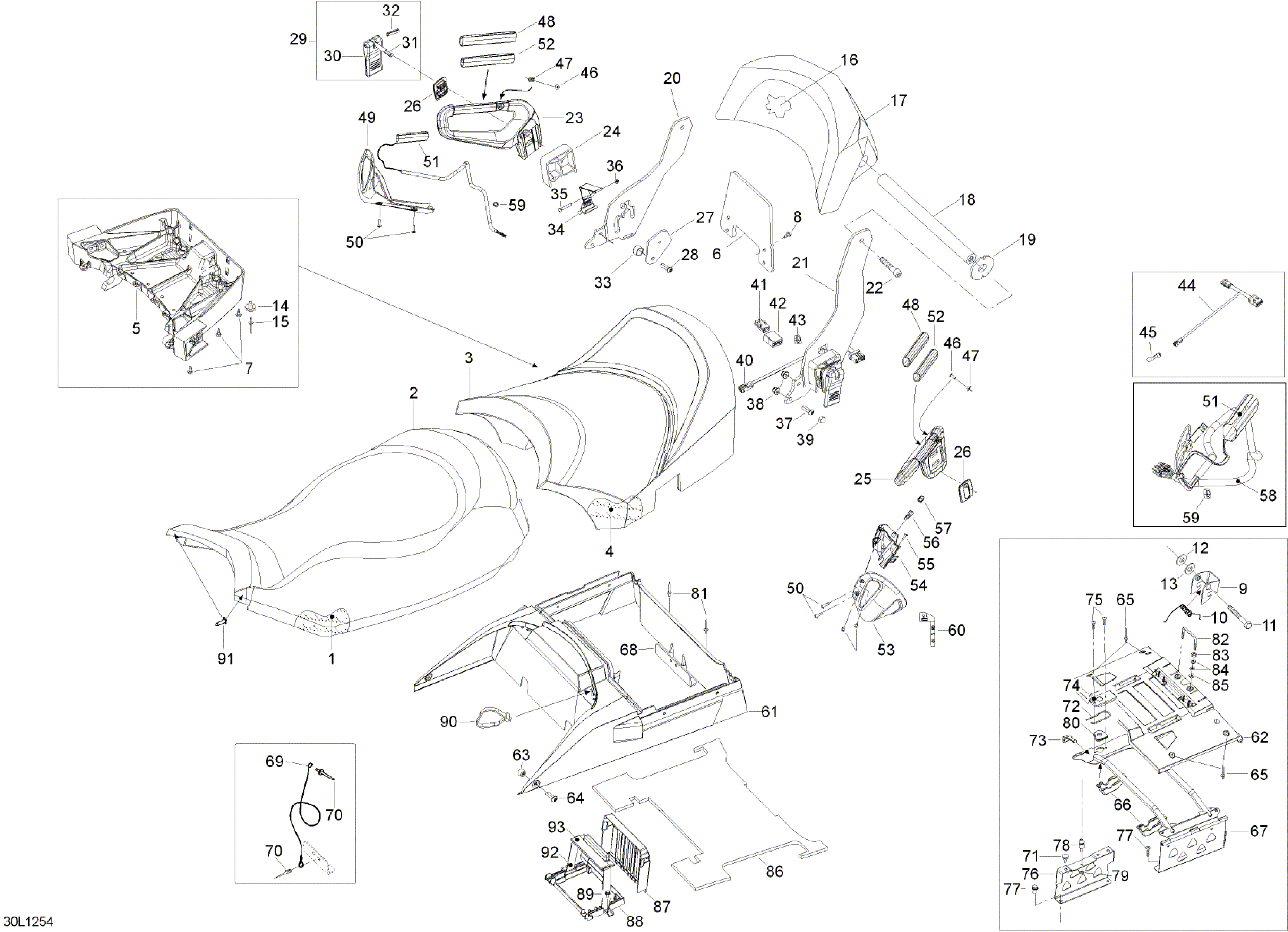

09- Seat для BRP Lynx Adventure GT 600 E-TEC - 2012
-
№АртикулНазвание
-
1510005316 Seat Foam (GRAND)Seat Foam (GRAND)
-
2510005257 Front Seat CoverFront Seat Cover
-
3510005256 Rear Seat CoverRear Seat Cover
-
4510004871 Foam SeatFoam Seat
-
5510004816 Seat BaseSeat Base
-
6510005330 Backrest PlateBackrest Plate
-
7414644300 DartDart
-
8293150067 RivetRivet
-
9708000144 Latch, BlackLatch, Black
-
10708000369 SpringSpring
-
11207068044 Screw Hex. M6 X 80Screw Hex. M6 X 80
-
12732610072 Push NutPush Nut
-
13234061410 Flat Washer 6 mmFlat Washer 6 mm
-
14510004903 Rubber StopperRubber Stopper
-
15293150015 Pop Rivet 1/8”Pop Rivet 1/8”
-
16510004985 Foam BackrestFoam Backrest
-
17510005259 Backrest Cover XU GRANDBackrest Cover XU GRAND
-
19510005312 Limiter PlateLimiter Plate
-
20510005420 R.H. ArmR.H. Arm
-
21510005419 L.H. ArmL.H. Arm
-
22250000553 ScrewScrew
-
23510004948 RH HandleRH Handle
-
24510004939 AdapterAdapter
-
25510004947 LH HandleLH Handle
-
26510004405 MouldingMoulding
-
27510004990 Counter PlateCounter Plate
-
28250000376 Hex Forming Screw DIN.7500DHex Forming Screw DIN.7500D
-
29510004992 Lock Ass'yLock Ass'y
-
305243419 Locking LeverLocking Lever
-
31510004993 Eye-BoltEye-Bolt
-
32414821400 PinPin
-
33510005507 Sleeve 8,6mmSleeve 8,6mm
-
34510005139 Security LockSecurity Lock
-
35205065044 Socket Head Screw M6 X 50Socket Head Screw M6 X 50
-
3633010 NutNut
-
37207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
38233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3928056 CoverCover
-
40515177209 Seat Harness 2012Seat Harness 2012
-
41515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
42515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
43414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
44515176748 Seat Plug HarnessSeat Plug Harness
-
45572103300 CapCap
-
46250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
47293100003 Nut M6Nut M6
-
48510004449 Handle GripHandle Grip
-
49510004415 RH DeflectorRH Deflector
-
50250000199 Screw 25mmScrew 25mm
-
51515176393 HeaterHeater
-
52510004709 Handle ReinforforcementHandle Reinforforcement
-
53510004416 LH DeflectorLH Deflector
-
54510004566 Switch HousingSwitch Housing
-
55250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
56510004413 Rocker SwitchRocker Switch
-
57510004414 Switch ProtectorSwitch Protector
-
58515176241 LH Handle HarnessLH Handle Harness
-
59414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
60516002835 Handle Heater DecalHandle Heater Decal
-
61510004874 Storage Box XUStorage Box XU
-
62510005604 Cover Storage Box XU 12Cover Storage Box XU 12
-
63510005147 BushingBushing
-
64250000389 Screw M6 X 12Screw M6 X 12
-
65293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
66510004999 CoverCover
-
67510004951 Fastening Tube PaintFastening Tube Paint
-
68510005156 Cable Support PlateCable Support Plate
-
69546777 Retainer CableRetainer Cable
-
70390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
71605452114 PlugPlug
-
72269700017 Latch SpringLatch Spring
-
73510005072 PullerPuller
-
74510005112 Lock Pin CoverLock Pin Cover
-
75732600030 ScrewScrew
-
76510004998 Locking Plate (Frame)Locking Plate (Frame)
-
77207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
78605452035 Lock PinLock Pin
-
79233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
80510005044 Lock Pin GuideLock Pin Guide
-
81293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
82510004876 Fastener PinFastener Pin
-
83250000135 Hex. Nut M6Hex. Nut M6
-
8420117 WasherWasher
-
8533010 NutNut
-
86510005043 FoamFoam
-
87510005079 Battery CoverBattery Cover
-
88515176804 Battery SupportBattery Support
-
89207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
90605627000 Tie RapTie Rap
-
91732600030 ScrewScrew
-
92510005143 Battery StrapBattery Strap
-
93510005146 Strap CoverStrap Cover
