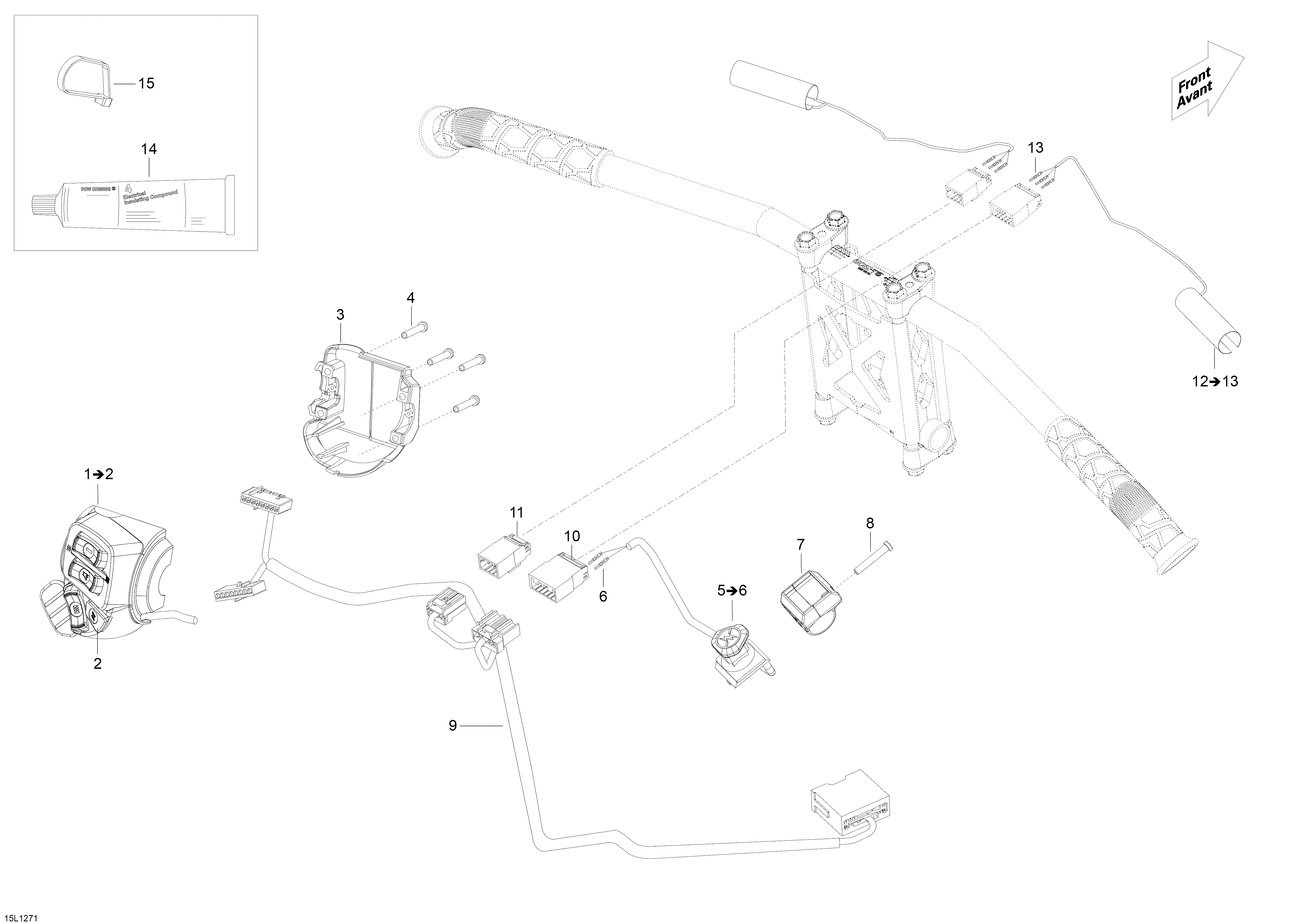

10- Steering Wiring Harness для BRP Lynx Rave RE 600 E-TEC (E) - 2012
-
№АртикулНазвание
-
1515177020 LH HousingLH Housing
-
2515176088 Start/RER ButtonStart/RER Button
-
3515175926 Housing Switch PlateHousing Switch Plate
-
4250000263 Torx Screw #8-18Torx Screw #8-18
-
5515177061 Kill SwitchKill Switch
-
6515175768 Male TerminalMale Terminal
-
7515176825 Kill Switch SupportKill Switch Support
-
8250000263 Torx Screw #8-18Torx Screw #8-18
-
9515176868 Steering Wiring Harness Ass'ySteering Wiring Harness Ass'y
-
10515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
11515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
12506152428 Heated Film, 25WHeated Film, 25W
-
13515175232 Male TerminalMale Terminal
-
14293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
15293750008 Tie-Rap 350 mmTie-Rap 350 mm
