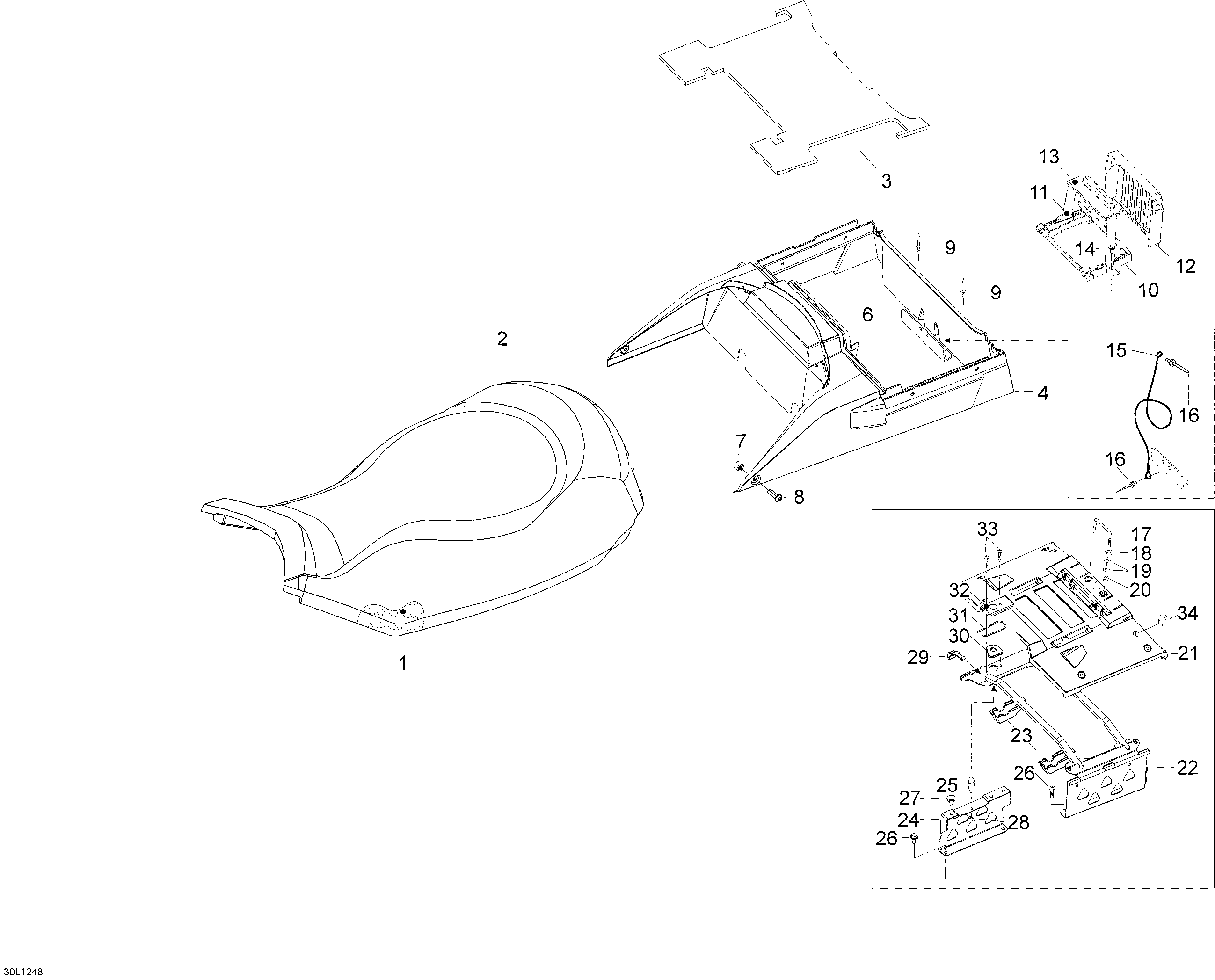

09- Seat для BRP Lynx Xtrim Commander 600 E-TEC - 2012
-
№АртикулНазвание
-
1510005316 Seat Foam (GRAND)Seat Foam (GRAND)
-
2510005257 Cover, frontCover, front
-
3510005043 FoamFoam
-
4510004874 Storage Box XUStorage Box XU
-
6510005156 Cable Support PlateCable Support Plate
-
7510005147 BushingBushing
-
8250000389 Screw M6 X 12Screw M6 X 12
-
9293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
10515176804 Battery SupportBattery Support
-
11510005143 Battery StrapBattery Strap
-
12510005079 Battery CoverBattery Cover
-
13510005146 Strap CoverStrap Cover
-
14207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
15546777 Retainer cableRetainer cable
-
16390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
17510004876 Fastener PinFastener Pin
-
1820117 WasherWasher
-
1920117 WasherWasher
-
20232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
21510005604 Cover Storage Box XU 12Cover Storage Box XU 12
-
22510004951 Fastening Tube PaintFastening Tube Paint
-
23510004999 CoverCover
-
24510004998 Locking Plate (Frame)Locking Plate (Frame)
-
25605452035 Lock PinLock Pin
-
26207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
27605452114 PlugPlug
-
28233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
29510005072 PullerPuller
-
30510005044 Lock Pin GuideLock Pin Guide
-
31269700017 Latch SpringLatch Spring
-
32510005112 Lock Pin CoverLock Pin Cover
-
33732600030 ScrewScrew
-
34572051500 CapCap
