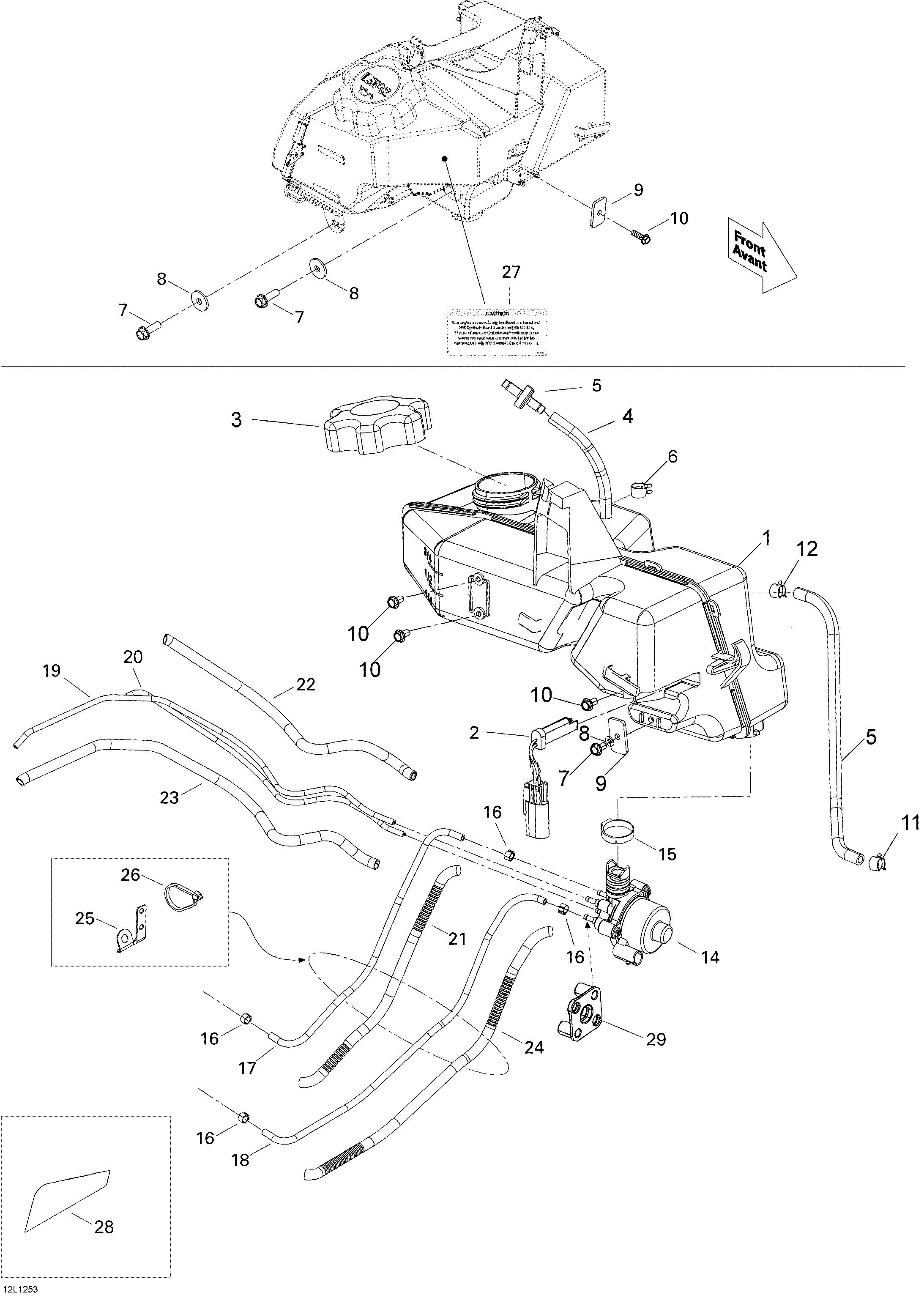

02- Oil System для BRP Lynx Xtrim Commander Limited 600 E-TEC - 2012
-
№АртикулНазвание
-
1519000251 Oil TankOil Tank
-
2515176978 Level SensorLevel Sensor
-
3519000194 CapCap
-
4415080200 Hose, PolyurethaneHose, Polyurethane
-
5275500398 Check ValveCheck Valve
-
6414554800 Spring ClampSpring Clamp
-
7250000331 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
8224061201 Flat WasherFlat Washer
-
9519000179 BracketBracket
-
10241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
11414420700 Spring ClipSpring Clip
-
12414554800 Spring ClampSpring Clamp
-
14519000254 Oil PumpOil Pump
-
15293650099 Oetiker Gear ClampOetiker Gear Clamp
-
16293650100 Oetiker ClampOetiker Clamp
-
17519000182 Hose 3.5 mmHose 3.5 mm
-
18519000182 Hose 3.5 mmHose 3.5 mm
-
19519000184 Hose 2.5 mmHose 2.5 mm
-
20519000184 Hose 2.5 mmHose 2.5 mm
-
21515175442 Tubing 6 mmTubing 6 mm
-
22515175442 Tubing 6 mmTubing 6 mm
-
23515175442 Tubing 6 mmTubing 6 mm
-
24515175442 Tubing 6 mmTubing 6 mm
-
25519000245 BracketBracket
-
26293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
27516004719 Notice Decal, OilNotice Decal, Oil
-
28516004648 Protection DecalProtection Decal
-
29519000271 BracketBracket
