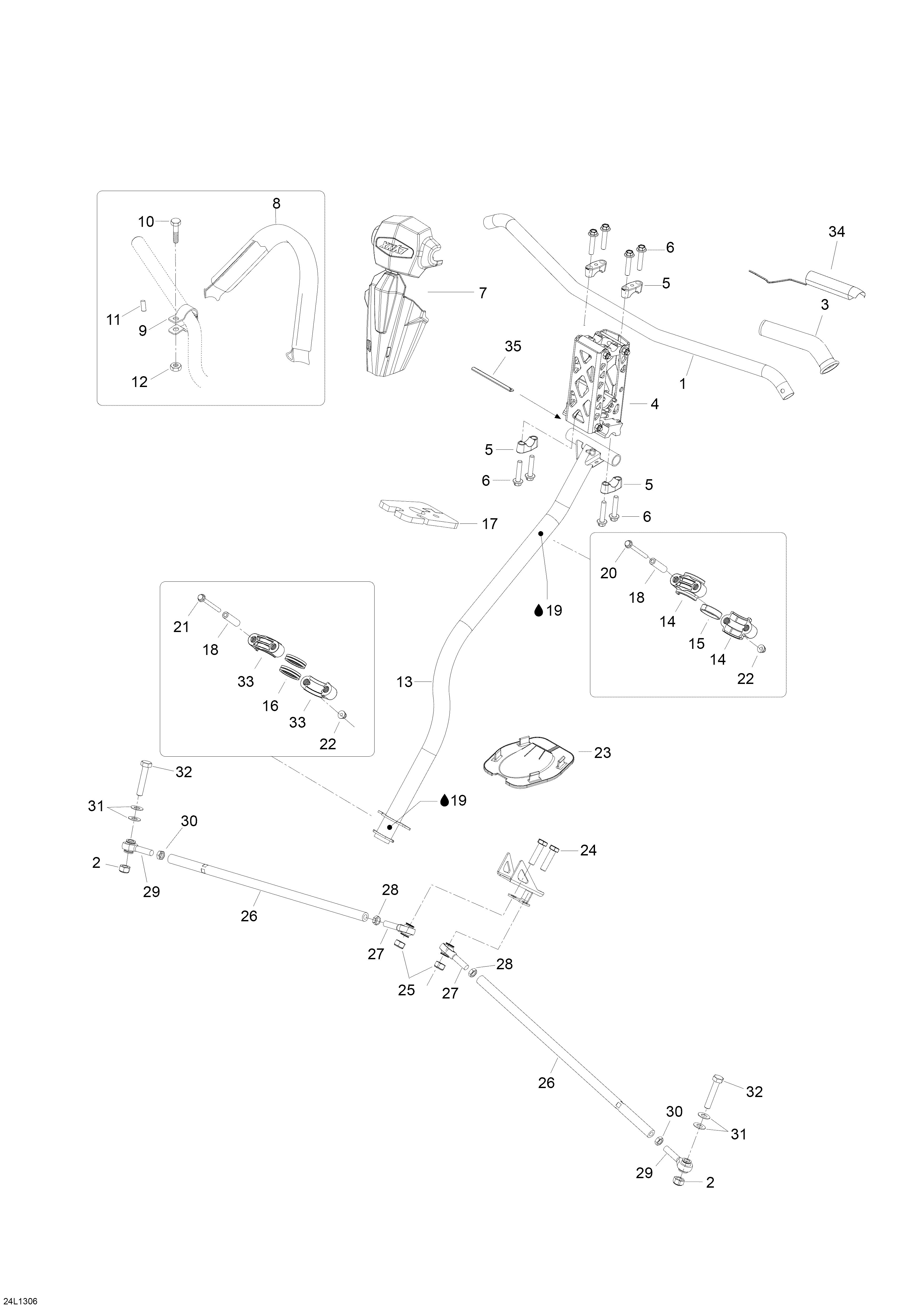

07- Steering System для BRP Lynx Adventure GT 600 E-TEC - 2013
-
№АртикулНазвание
-
1506152399 Handle BarHandle Bar
-
2232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
3506152483 GripGrip
-
4506152532 Adjustable ExtensionAdjustable Extension
-
5506152395 Steering SupportSteering Support
-
6250000285 Hex Flanged Screw M8 x 40Hex Flanged Screw M8 x 40
-
7506152519 Steering PadSteering Pad
-
8506152115 Steering strapSteering strap
-
9506152536 Support plateSupport plate
-
10207662084 Screw DIN.6921 (1pkt=10kpl)Screw DIN.6921 (1pkt=10kpl)
-
11506152156 BushingBushing
-
12233261494 Nut (1pkt=10kpl)Nut (1pkt=10kpl)
-
13506152585 Main Tube PaintMain Tube Paint
-
14506152508 Half-Housing UpperHalf-Housing Upper
-
15506152509 VIBRAT. GASKET upperVIBRAT. GASKET upper
-
16506152518 VIBRAT. GASKET lowerVIBRAT. GASKET lower
-
17506152404 CushionCushion
-
18506152297 Housing BushingHousing Bushing
-
19293550033 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
20207667086 SCREW-HEX.FLANGE DIN.6921SCREW-HEX.FLANGE DIN.6921
-
21207667086 SCREW-HEX.FLANGE DIN.6921SCREW-HEX.FLANGE DIN.6921
-
22233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23506152163 PlatePlate
-
24207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
25232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
26506152498 Tie RodTie Rod
-
27506152081 Ball Joint (LH THREAD)Ball Joint (LH THREAD)
-
28250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
29506152019 Ball Joint (RH THREAD)Ball Joint (RH THREAD)
-
30732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
31506152194 WasherWasher
-
32207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
33506152217 Half housing lowerHalf housing lower
-
34506152428 Heated filmHeated film
-
35506152415 Limiter plateLimiter plate
