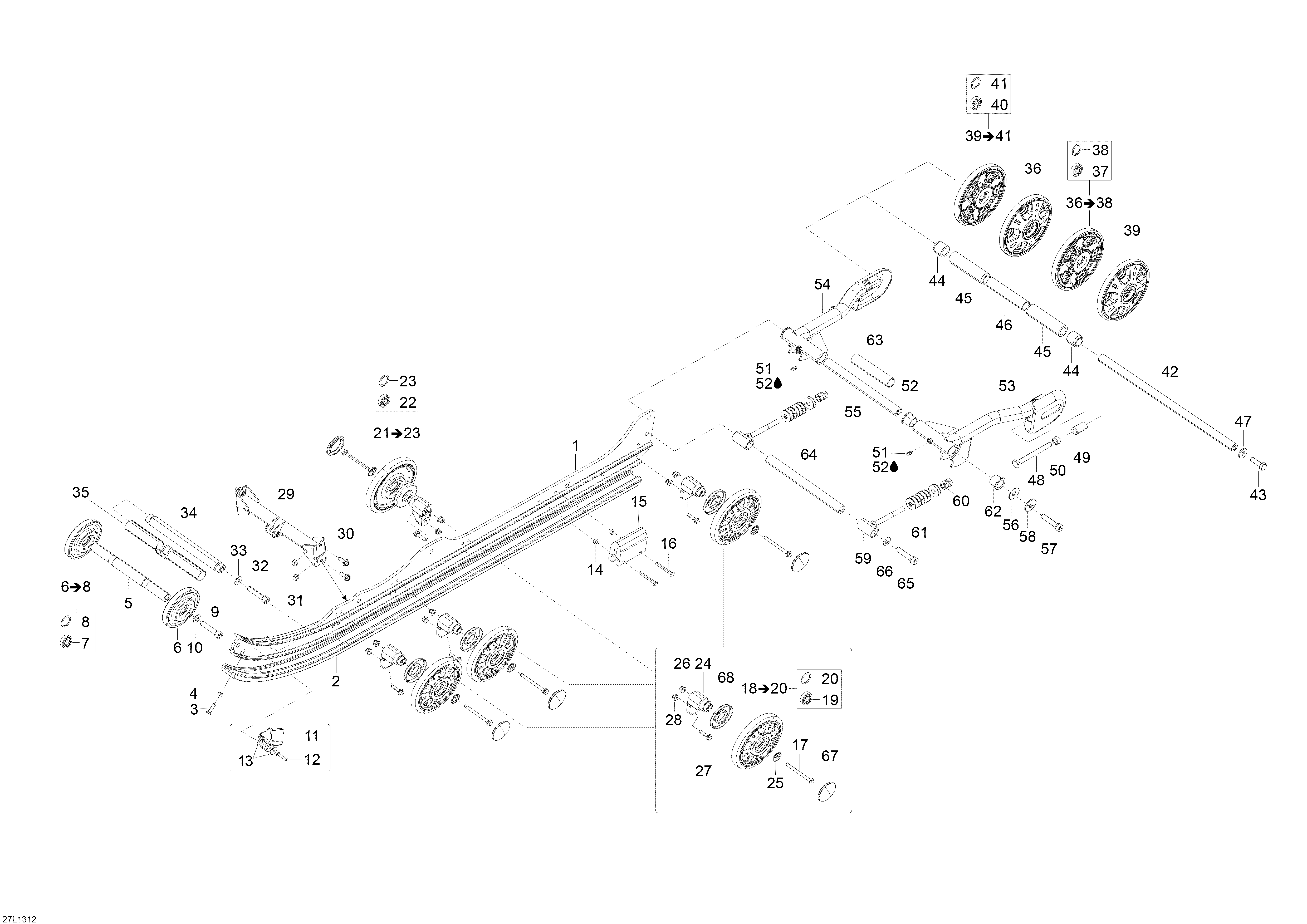

08- Rear Suspension для BRP Lynx Xtrim Commander 600 E-TEC - 2013
-
№АртикулНазвание
-
1503192822 Runner PPS 500Runner PPS 500
-
2503192843 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192889 Front Wheel ShaftFront Wheel Shaft
-
6503192611 Wheel 100mm. Includes 6 To 8Wheel 100mm. Includes 6 To 8
-
7503190396 Ball BearingBall Bearing
-
9205504544 Socket Screw M10 x 45Socket Screw M10 x 45
-
10234001410 Washer Flat M10Washer Flat M10
-
11503192106 Rubber StopperRubber Stopper
-
12293150142 RivetRivet
-
13503191273 WasherWasher
-
14233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
15570023100 Rubber StopperRubber Stopper
-
16207664544 Hex. Flange Screw M6 x 45Hex. Flange Screw M6 x 45
-
17250000475 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
18503191942 Wheel 141mm. Includes 18 To 20Wheel 141mm. Includes 18 To 20
-
19503190396 Ball BearingBall Bearing
-
21503191316 Wheel 141mm. Includes 21 To 23Wheel 141mm. Includes 21 To 23
-
22503190396 Ball BearingBall Bearing
-
23415129371 CirclipCirclip
-
24503193082 Support Cast.Support Cast.
-
25503191820 Cup WasherCup Washer
-
26233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
27250000522 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
28233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
29503192739 Lower Support, Center ShockLower Support, Center Shock
-
30207602587 Hex. Flange Screw M10 x 25Hex. Flange Screw M10 x 25
-
31232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
32205504544 Socket Screw M10 x 45Socket Screw M10 x 45
-
33234001410 Washer Flat M10Washer Flat M10
-
34503192927 ShaftShaft
-
35605355263 Retainer For Stopper StrapRetainer For Stopper Strap
-
36503192140 Wheel 165mm. Includes 36 To 38Wheel 165mm. Includes 36 To 38
-
37503190396 Ball BearingBall Bearing
-
38415129371 CirclipCirclip
-
39503192676 Wheel 165mm. Includes 39 To 41Wheel 165mm. Includes 39 To 41
-
40503190396 Ball BearingBall Bearing
-
41415129371 CirclipCirclip
-
42503191408 Axle RearAxle Rear
-
43250000817 Screw Hex With Nylon PatchScrew Hex With Nylon Patch
-
44503192048 SpacerSpacer
-
45503192671 SpacerSpacer
-
46605448429 Support PipeSupport Pipe
-
47503190439 WasherWasher
-
48230100044 Hex. Cap Screw M10 X 100Hex. Cap Screw M10 X 100
-
49503192696 SpacerSpacer
-
50232006414 Nut M10Nut M10
-
51408200700 Grease FittingGrease Fitting
-
53503192053 Extension Swing LHExtension Swing LH
-
54503192054 Extension Swing RHExtension Swing RH
-
555347713 ShaftShaft
-
5620116 ShimShim
-
57205504547 Socket Screw M10 x 45Socket Screw M10 x 45
-
58512056700 Washer LockWasher Lock
-
59503192695 Adjustment ScrewAdjustment Screw
-
60232006414 Nut M10Nut M10
-
6125004 Cup SpringCup Spring
-
6231024 CushionCushion
-
63605448429 Support PipeSupport Pipe
-
645347717 ShaftShaft
-
65205504547 Socket Screw M10 x 45Socket Screw M10 x 45
-
66234001410 Washer Flat M10Washer Flat M10
-
67503192771 CapCap
-
68503190434 Seal LabyrinthSeal Labyrinth
