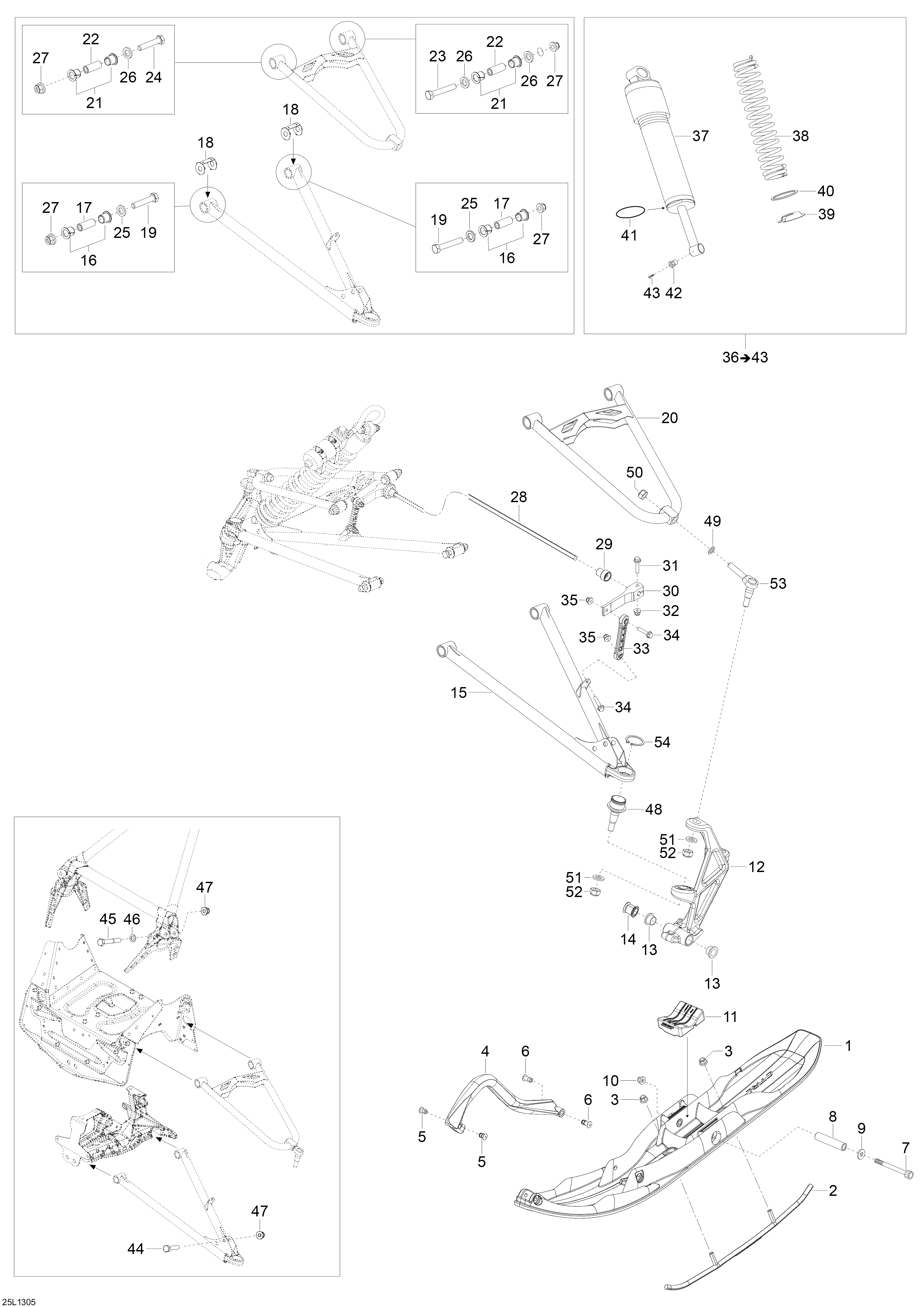

07- Front Suspension And Ski для BRP Lynx Xtrim SC 600 E-TEC - 2013
-
№АртикулНазвание
-
1505072673 CTRL SkiCTRL Ski
-
2619400005 Runner KitRunner Kit
-
3233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
4505072102 Handle (White)Handle (White)
-
5505071812 RetainerRetainer
-
6505072133 RetainerRetainer
-
7230003044 Hex. Cap Screw M10 x 130Hex. Cap Screw M10 x 130
-
8506133300 SpacerSpacer
-
9732900049 WasherWasher
-
10233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
11505072561 Rubber DamperRubber Damper
-
12505073011 Ski Leg LHSki Leg LH
-
12505073012 Ski Leg RHSki Leg RH
-
13505072690 CushionCushion
-
14505071999 SpacerSpacer
-
15505072664 Lower Arm RHLower Arm RH
-
15505072665 Lower Arm LHLower Arm LH
-
16503191766 CushionCushion
-
17505072401 Aluminum BushingAluminum Bushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
20505072455 Upper ArmUpper Arm
-
21503191555 Swivel BushingSwivel Bushing
-
22505072143 Aluminum BushingAluminum Bushing
-
23250000290 Screw Hex. M10 x 60Screw Hex. M10 x 60
-
24250000289 Screw Hex. M10 x 50Screw Hex. M10 x 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
28505072444 StabilisatorStabilisator
-
29505072445 BushingBushing
-
30505072446 Stabilisator LeverStabilisator Lever
-
31207663046 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
32233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
33505072204 Double Ball Joint LinkDouble Ball Joint Link
-
34207663046 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
35233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37505072908 Front ShockFront Shock
-
38505072879 SpringSpring
-
39503192608 Spring StopperSpring Stopper
-
40505073150 WasherWasher
-
41293300148 O RingO Ring
-
42505072753 Knob AdjusterKnob Adjuster
-
43205031060 Socket Screw M3 x 10Socket Screw M3 x 10
-
44207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
45207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
46503189564 WasherWasher
-
47233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
48505072682 Lower Ball JointLower Ball Joint
-
49503189276 WasherWasher
-
50250100089 Nut M12Nut M12
-
51234021410 Flat WasherFlat Washer
-
52250100089 Nut M12Nut M12
-
53505072257 Upper Ball JointUpper Ball Joint
-
54293370035 CirclipCirclip
