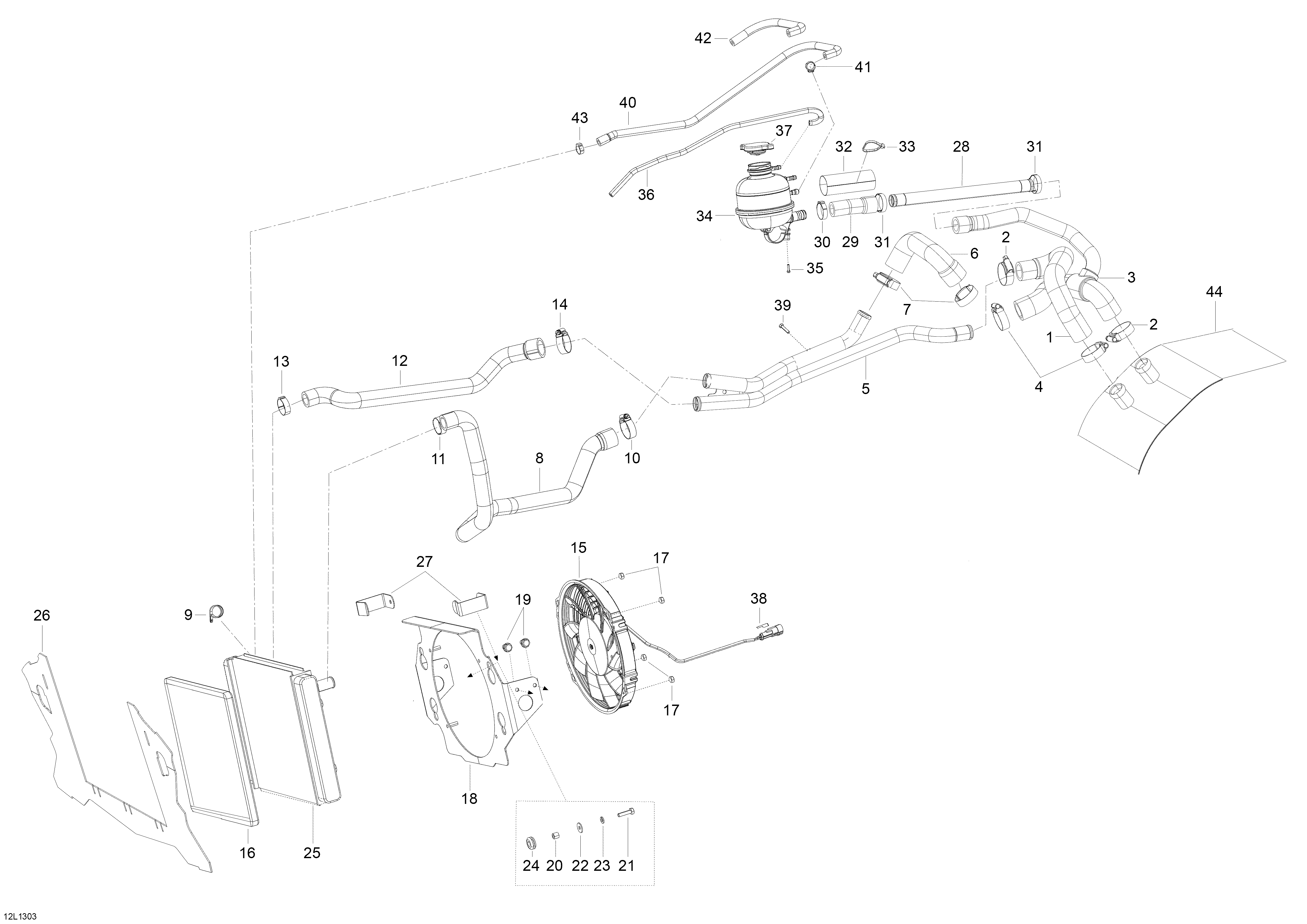

01- Cooling System для BRP Lynx 69 YETI 600 ACE - 2013
-
№АртикулНазвание
-
1509000762 Hose, Tunnel RadiatorHose, Tunnel Radiator
-
2509000443 Gear ClampGear Clamp
-
3509000806 Hose AssyHose Assy
-
4509000443 Gear ClampGear Clamp
-
5509000800 Water PipeWater Pipe
-
6509000564 Hose, Engine OutletHose, Engine Outlet
-
7509000443 Gear ClampGear Clamp
-
8509000706 Hose, Air Rad - EngineHose, Air Rad - Engine
-
9605627008 Clamp With Rubber D-30Clamp With Rubber D-30
-
10509000443 Gear ClampGear Clamp
-
11293650099 Crimp ClampCrimp Clamp
-
12509000707 Hose, Air Rad - Tunnel RadHose, Air Rad - Tunnel Rad
-
13293650099 Crimp ClampCrimp Clamp
-
14509000443 Gear ClampGear Clamp
-
15509000838 Cooling FanCooling Fan
-
16509000718 D-SealD-Seal
-
17233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
18509000791 Radiator SupportRadiator Support
-
1940870 Hex. Taping ScrewHex. Taping Screw
-
20605453745 BushingBushing
-
21207162044 Hex.Cap Screw M6 x 20Hex.Cap Screw M6 x 20
-
22234062410 Flat Washer M6Flat Washer M6
-
2320052 Spring WasherSpring Washer
-
24293720053 GrommetGrommet
-
25509000787 RadiatorRadiator
-
26509000784 Air Deflector LTSAir Deflector LTS
-
27509000703 Deflector ClipDeflector Clip
-
28509000644 PipePipe
-
29509000698 HoseHose
-
30509000442 Crimp ClampCrimp Clamp
-
31293650099 Crimp ClampCrimp Clamp
-
32509000730 Protector Tube 90mmProtector Tube 90mm
-
33414115200 Tie Rap 180mmTie Rap 180mm
-
34509000368 Coolant TankCoolant Tank
-
35241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
36513033572 HoseHose
-
37509000180 Pressure CapPressure Cap
-
38710000992 ClipClip
-
39207561634 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
40509000750 Breather HoseBreather Hose
-
41293650047 Crimp ClampCrimp Clamp
-
42409901800 Insulating Tubing 13mmInsulating Tubing 13mm
-
43293650047 Crimp ClampCrimp Clamp
-
44509000645 Tunnel RadiatorTunnel Radiator
