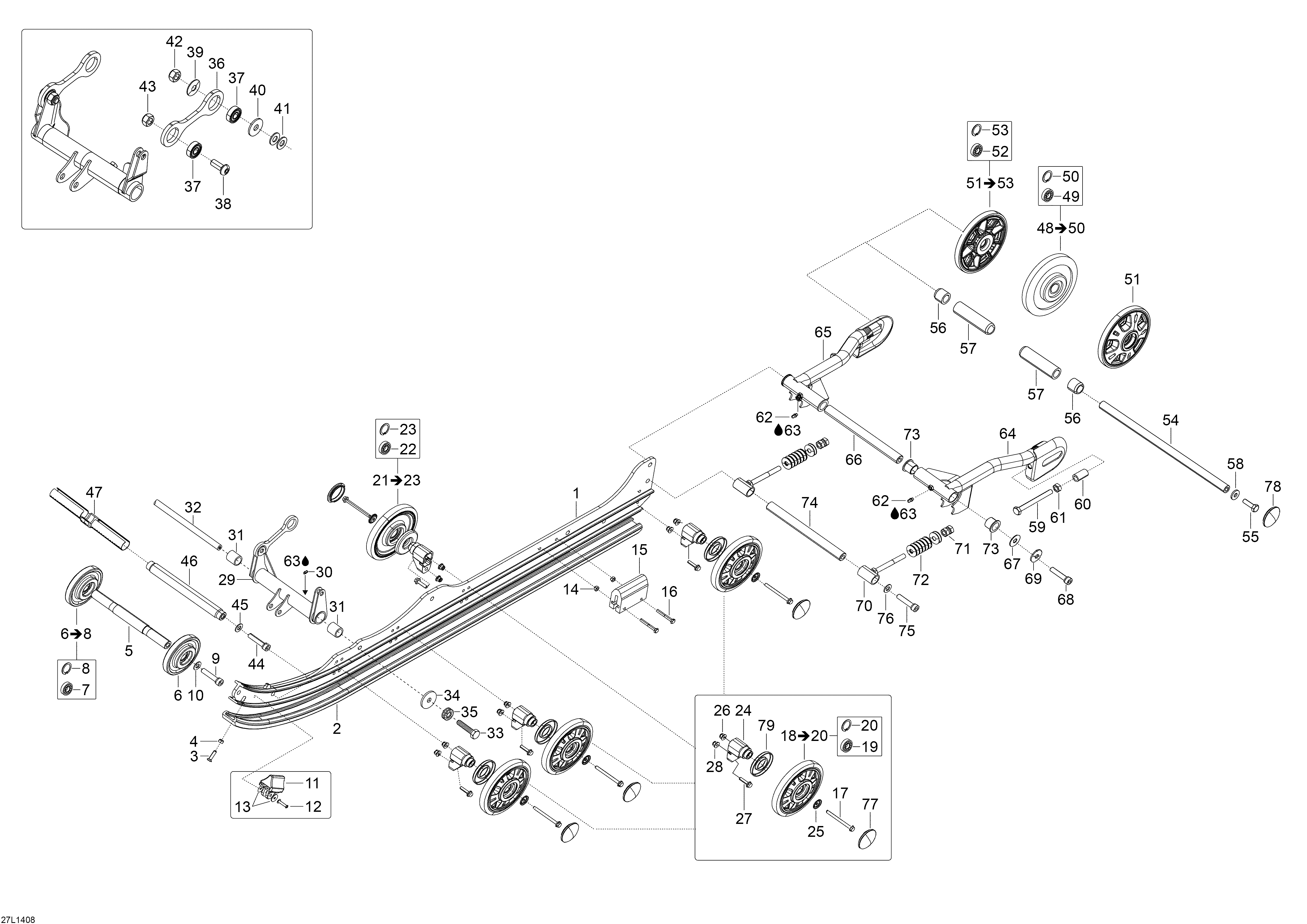

08- Rear Suspension для BRP Lynx 49 Ranger 600 ACE - 2014
-
№АртикулНазвание
-
1503193783 RunnerRunner
-
2503192843 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192842 Front Wheel ShaftFront Wheel Shaft
-
6503192611 Wheel 100mm. Includes 6 To 8Wheel 100mm. Includes 6 To 8
-
7503190396 Ball BearingBall Bearing
-
9205504544 Socket Screw M10 x 45Socket Screw M10 x 45
-
10234001410 Flat Washer M10Flat Washer M10
-
11503192106 Rubber StopperRubber Stopper
-
12293150142 Pop Rivet 3/16Pop Rivet 3/16
-
13503191273 WasherWasher
-
14233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
15570023100 Stopper RubberStopper Rubber
-
16207664554 Hex. Flange Screw M6 x 45Hex. Flange Screw M6 x 45
-
17207667056 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
18503191942 Wheel 141mm. Includes 18 To 20Wheel 141mm. Includes 18 To 20
-
19503190396 Ball BearingBall Bearing
-
21503191316 Wheel 141mm. Includes 21 To 23Wheel 141mm. Includes 21 To 23
-
22503190396 Ball BearingBall Bearing
-
23415129371 CirclipCirclip
-
24503193082 SupportSupport
-
25503191820 Cup WasherCup Washer
-
26233261466 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
27207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
28233261466 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
29503192518 Swing WeldSwing Weld
-
30408200700 Grease FittingGrease Fitting
-
3131024 CushionCushion
-
32605355800 ShaftShaft
-
33205505587 Screw M10 x 55Screw M10 x 55
-
34512056700 Lock WasherLock Washer
-
3520068 Lock Washer D10Lock Washer D10
-
36605254159 Connecting RodConnecting Rod
-
37605631003 Ball BearingBall Bearing
-
38205402546 Socket Head Screw M10 x 25Socket Head Screw M10 x 25
-
3925004 Spring CupSpring Cup
-
40234002600 Washer M10Washer M10
-
41234001410 Washer M10Washer M10
-
42233401414 Lock Spring M10Lock Spring M10
-
43232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
44205504544 Socket Head Screw M10 x 45Socket Head Screw M10 x 45
-
45234001410 Washer M10Washer M10
-
46605353958 ShaftShaft
-
47605355096 RetainerRetainer
-
48503192140 Wheel 165mm. Includes 48 To 50Wheel 165mm. Includes 48 To 50
-
49503190396 Ball BearingBall Bearing
-
50415129371 CirclipCirclip
-
51503192676 Wheel 165mm. Includes 51 To 53Wheel 165mm. Includes 51 To 53
-
52503190396 Ball BearingBall Bearing
-
53415129371 CirclipCirclip
-
54503190429 Rear AxleRear Axle
-
55250000817 Hex. Cap Screw M10 x 35Hex. Cap Screw M10 x 35
-
56503192048 SpacerSpacer
-
57503192670 SpacerSpacer
-
58503190439 WasherWasher
-
59230100044 Hex. Cap Screw M10 x 100Hex. Cap Screw M10 x 100
-
60503192696 SpacerSpacer
-
61232006414 Nut M10Nut M10
-
62408200700 Grease FittingGrease Fitting
-
64503192053 Extension Swing LHExtension Swing LH
-
65503192054 Extension Swing RHExtension Swing RH
-
665346900 ShaftShaft
-
6720116 ShimShim
-
68205504587 Socket Screw M10 x 45Socket Screw M10 x 45
-
69512056700 Lock WasherLock Washer
-
70503192695 Adjustment ScrewAdjustment Screw
-
71232006414 Nut M10Nut M10
-
7225004 Cup SpringCup Spring
-
7331024 CushionCushion
-
745343471 ShaftShaft
-
75205504587 Socket Screw M10 x 45Socket Screw M10 x 45
-
76234001410 Flat WasherFlat Washer
-
77503192771 Cap WheelCap Wheel
-
78503192771 Cap WheelCap Wheel
-
79503190434 Labyrinth SealLabyrinth Seal
